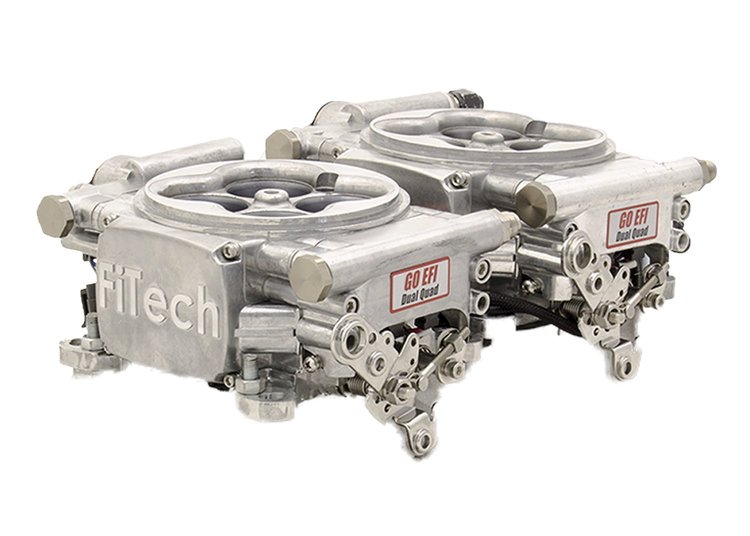

FITech Fuel Injection 30061 Go EFI 2x4 625 HP Dual Quad Throttle Body System Basic Kit
546-30061
Product Q&A
View Now
| Ratings |
|---|
| Price |
| Brand |
Basic Kit
FiTech 30061 Go EFI 2x4 625 HP Dual Quad Throttle Body System Basic Kit
The Go EFI 2×4 625HP Matte Black Self-Tuning Fuel Injection system is rated at 625hp but is suitable for engines from 200hp thru 625hp. Dual Quad! EFI! Nothing says Muscle like 2 big 4 BBL’s on a V8. FiTech EFI has made it simple with their Go EFI 2×4 625HP self-tuning dual quad normally aspirated system. This kit is a bolt on for the most popular manifolds including the Edelbrock line of dual quad manifolds without any adapters! They fit and look like they belong there because they were designed to fit from the start. Our normally aspirated kits are good thru 625hp. One throttle body handles all of the brains while the second holds 4 additional injectors. These can also be used in cross ram and tunnel ram configurations. No boost with these, please! For boosted and high horsepower normally aspirated applications please see our Go EFI 2×4 Power Adder (Part #30064).
Bolt on 2 of these tough looking throttle bodies and drive your car as the system dials itself into the perfect calibration for all of your driving and weather conditions. If you decide you want to tune for more power or economy, the FiTech touch screen controller allows quick and easy on the fly adjustments at your fingertips!
Hand-Held Controller Quick Start Guide
Features:
- 8 Flow Matched Injectors
- Two High Flow Throttle Body Systems in a Bright Aluminum Finish
- Fits Dual-Quad Intake Manifolds without Adapters
- 4-Gig Data Logging
- Single Electric Fan Control
- Adjust and Control Ignition Timing
- Optimize Air/Fuel Ratios
- Compatible with a CDI Box
- Built-in Fuel Pressure Regulator
- Self-Tuning
- Basic Install with Only Four Wires and Two Sensors
- Bosch 4.2 Wide Band O2 Sensor
- Compact Externally Mounted ECU on the Throttle Body
- Voltage Control Fuel Pump Control
- Wet Flow Technology
- Swirl Spray Annular Discharge Design
- Note:
- This kit does not include linkage or fuel lines.
- Not legal for use on pollution controlled vehicles. This system is designed to be retrofit into vehicles that do not require emission controls.
- Applications: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 200 HP up to 625 HP with a dual quad intake manifold.
- Replacement for any dual quad carburetors for engines with 200 HP up to 625 HP.
- Use the same size air cleaner you would normally use for your dual quad carburetors.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Specifications:
I am running a high RPM SBC with crank trigger timing. Will these work with my crank trigger?
