LS Truck

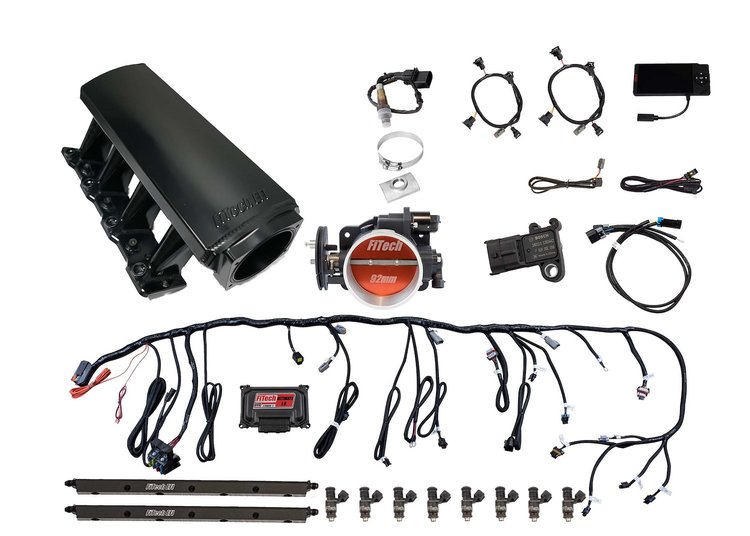

The Ultimate Tall LS1/LS2/LS6 500HP Intake Manifold Kit with 92 mm Throttle Body is a complete self-tuning induction system for LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU’s from “Craigs List” tuners. FiTech’s Ultimate EFI is a complete Kit. Suitable for that junkyard 5.3 to a stroker 427, we have you covered! Check out the list of features and you will wonder why it’s never been so simple to ditch that old factory hardware or top off that fresh long block. We have taken the work out of getting your new or pull-out LS up and running in a flash. That’s why we call this intake manifold kit the Ultimate EFI.
Application:
- The intake manifold will fit Cathedral Port LS1/LS2/LS6 heads
- Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines with a 1500-6500 rpm power band up to 500 HP to the flywheel
- 4.8 L / 293 c.i. LR4, LS1, LS2, LS6, V8 Camaro/Corvette
- 5.3 L / 325 c.i. L33, L59, LM4, LM7, V8 Camaro/Corvette
- 5.7 L / 346 c.i. LS1, LS6, Cadillac CTS V, Pontiac GTO/Trailblazer SS/Firebird/Trans-Am, SSR, Corvette
- 6.0 L / 364 c.i. LQ4, LQ9, LS2, V8 Camaro/Corvette
Features:
- Intake manifold height is 9 inches
- 92mm high flow cable operated throttle body sits at 7 degrees
- Throttle body will clear any stock truck accessories depending on the type of water pump if there is truck water pump accessory clearance interference you will need to get a new water pump bracket
- Optional, not included: throttle cable mounting bracket FiTech part number 70063 (sold separately)
- Tall, 92mm inlet, Fabricated 3mm thick aluminum sheet metal TIG welded intake manifold with 1500-6500 rpm power-band up to 500 HP to the flywheel
- Billet Fuel rails with AN fittings and fuel crossover
- Self-learning ECU with touch screen controller for easy setup and configuration
- Sequential fuel and spark control with individual cylinder trim
- Bosch wide band controlled (Self-learning)
- Stainless O2 Sensor bung (clamp or weld-on)
- 24X and 58X crank and cam compatible
- TPS - IAC Sensor
- Tach output driver for most tachometers (5V)
- Output driver for most speedometers
- Compatible with car and truck coils
- On-the-fly programmable target AFR and timing (if desired)
- 36 lb/hr flow-matched injectors.
- Fuel pump relay output
- Custom wire harness (uses factory coil pack sub harness).
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Specifications:
So i can use this kit with my 1991 300zx? I am using my vgtt 5spd trans and not an auto trans, will that be a problem?
Is this obd2 comparable?
Does the system use mass airflow ? Or is it just a map sensor system?
