Vehicle Info NeededFORD PERFORMANCEPART NUMBER: 397-M-9926-M5090

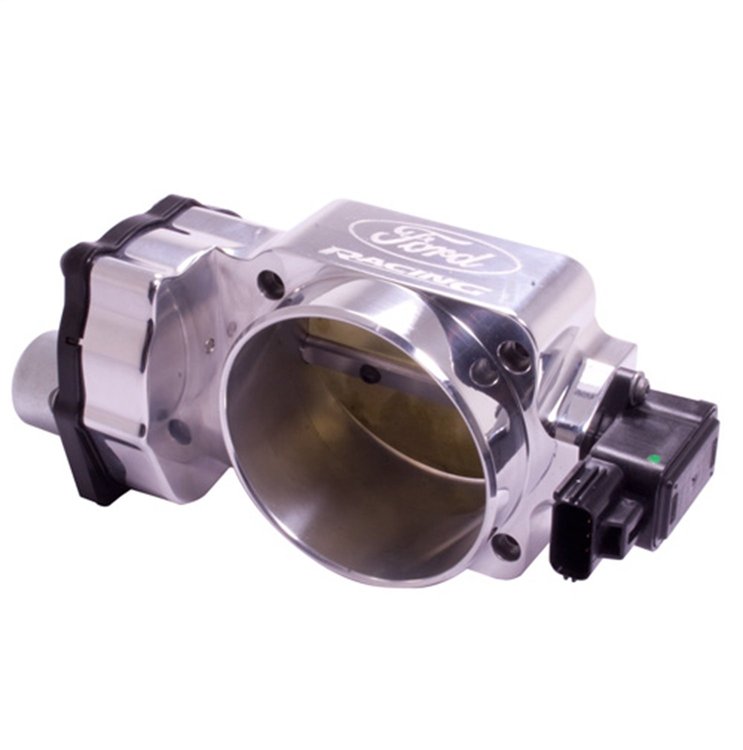

Throttle Body 2011-14 Mustang GT 5.0L 4V "Ti-VCT"
$80099$889.99You Save$89.00
Ships on 09/14/2026
Lowest Price GuaranteeThrottle Bodies
- Throttle Body
- 2011-14 Mustang GT 5.0L 4V 'Ti-VCT'
- 2012-13 Boss 302 5.0L 4V 'Ti-VCT'
- 90mm Bore
- 90 MM Billet Aluminum Throttle Body
- Fits 2011-2014 Mustang GT/ 2012-2013 Boss 302 with stock 80mm throttle body
- CFM Rating: 1132cfm; with adapter 1101cfm (stock 80mm throttle body: 913cfm)*
- 4" diameter leading edge larger than stock throttle body - requires use of 4" ID silicone hose adapter or reducer
- 4" air inlet tube is recommended for maximum horsepower
- When using factory 3.5" diameter air inlet tube the molded rubber throttle body hose must be removed
- Ford Racing's performance electronic throttle bodies are for vehicles equipped with electronic throttle control (ETC)
- Includes jumper harness
- Does not include calibration, calibration required. All Ford Racing ETC throttle bodies feature:
- All factory sensors installed - no need to tear apart your original throttle body
- Calibrated for idle air flow using the same procedure as production throttle bodies
- Throttle body features Ford Racing CNC logo cut into the TB housing
- Precision billet construction with tapered inlet for consistent high flow
- Validation through hundreds of hours of dyno, racing, and street performance driving
- Polished aluminum for great looks Requires:
- Adapter: M-9474-M50 for OEM Mustang GT 5.0L 4V TiVCT intake
- Adapter: M-9474-M50B for Ford Racing Boss intake M-9424-M50BR Notes:
- Adapter M-9474-M50 rotates throttle body approximately 15 degrees counter clockwise
- Engine cover M-9680-M50 covers throttle body on 5.0L 4V Ti-VCT intake
- Boss intake M-9424-M50BR can be port matched to accept throttle body without adapter, requires custom gasket/RTV
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Increased Engine Performance Through Increased Air Intake
- Available For Mustang GTs And Boss 302s Built From 2005 Onward
- Crafted From Billet Aluminum For Superior Strength And Quality
The engines developed by Ford Racing are hungry engines, for both fuel and air. That's why Ford Racing has developed these upgraded throttle bodies. These throttle bodies from Ford Racing are high performance, heavy duty pieces of equipment designed specifically to increase engine output through increased input. Better airflow translates in to more horsepower and more torque. These high performance throttle bodies are available for Ford Mustang GTs and Boss 302s built from 2005 onward.
FeaturesPart TypeThrottle Body
Product LineFord Performance Throttle Bodies
BrandFORD PERFORMANCE
Package Height8.7
Package Width9.6
Package Length16.7
Weight5.71 PG
Part CategoryPerformance Parts
Venturi Quantity1
Throttle Body FinishPolished
Hardware IncludedNo
Venturi Diameter (Mm)90
QuantitySold individually
Injectors IncludedNo
Tps Sensor IncludedNo
Gaskets IncludedNo
Part FitmentSemi Universal
Throttle Body MaterialBillet aluminum
Iac Motor IncludedNo
Throttle Body StyleMulti-port injection, MPI
Airflow Rate (Cfm)1,132 cfm
Vendor Part NumberM-9926-M5090
Package Qty1
Package TypeEA
