Holley 12-131
Representative Image
Product images may differ from actual product appearance.

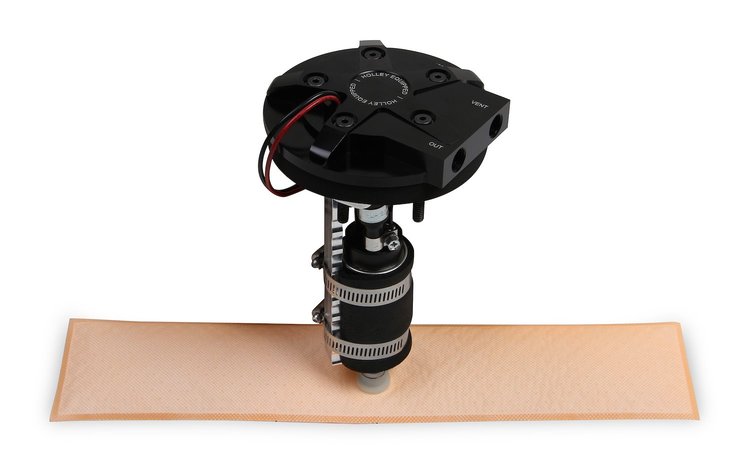

Holley In-Tank RetroFit Fuel Module


made in usa
Free Shipping Ships directly from the manufacturer on Monday
Save $10 off $199, $45 off $499, $100 off $999. Promo Code: FALLFUN exclusions apply

Holley In-Tank RetroFit Fuel Module $519.95
Out of stock
In-Tank RetroFit Fuel Module
  • 255 lph Pump
  • Supports up to 550 EFI HP or 700 Carb HP
  • 4.800 in. Diameter
  • 1/4 in. npt Ports
  • Billet Aluminum Module
  • Returnless-Style Fuel System
  • Includes Hydramat
  • Holley 12-131 Details

    255 lph Pumps

    Installation Notes:

    • A 30 amp fuel pump relay and minimum 12 gauge wire are recommended for optimal performance
    • -6 AN lines and fittings are the maximum size recommended for operation due to space limitations between the fuel sending unit and fuel tank


    Manufacturer's Part Number:
    Shipping Weight:
    Package Height:
    Package Depth:
    Package Width:

    Drop-In Retrofit EFI Fuel System

    Are you interested in an EFI retrofit kit, but just can't get past the complexity of the fuel system? Holley's Universal In-Tank Retrofit Fuel Modules take the hassle out of the conversion process. Available in return and returnless versions, you can convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily with a retrofit kit  The conversion is easily accomplished with basic tools and requires no welding or metal fabrication. The aluminum module design includes a pump hanger bracket to control pump vibration. An innovative clamping system allows the module to be located anywhere in the tank beside your existing sending unit. A low profile design helps the pump to fit where space is at a minimum in and out of the tank. Once installed, hook up your fuel lines, power source, ground and you're ready to run!


    • The easiest way to convert an older vehicle to an in-tank, EFI fuel system
    • 7 to12 in. adjustable rail allows installation in most stock fuel tanks to fit a wide variety of applications
    • Black anodized aluminum construction for corrosion resistance
    • 1/4 in. NPT ports
    • The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
    • Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
    • Three different fuel pumps are available to match your requirements - 255 LPH, 340 LPH or 450 LPH for both return and returnless style systems
    • 255 LPH Supports up to 550 EFI or 700 Carb hp
    • 340  LPH Supports up to 700 EFI or 900 Carb hp
    • 450 LPH Supports up to 875 EFI or 1100 Carb hp
