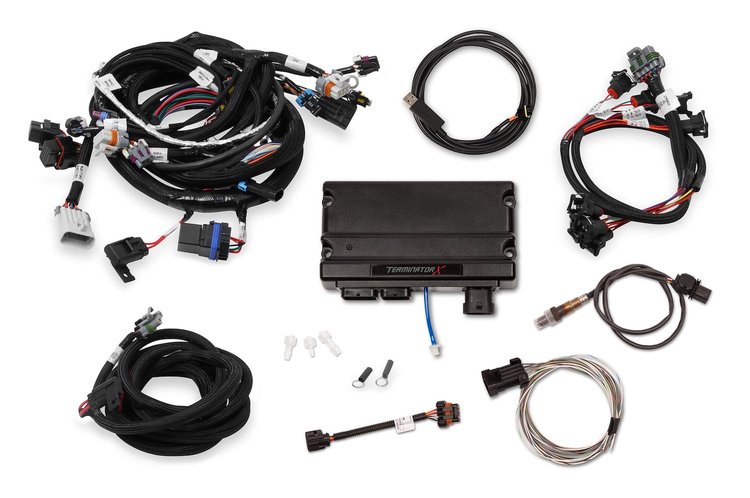

Holley 550-903T Terminator X MPFI Controller Kit
510-550-903T
Product Q&A
View Now
| Ratings |
|---|
| Price |
| Brand |
GM LS
LS1/LS6 24x Tooth Reluctor
Holley 550-903T Terminator X Max MPFI Controller Kit Features:
- Simple Plug-and-Play engine controller for GM LS series engines
- CAN/BUS Tuning Cable allows tuning with the use of a laptop computer (sold separately)
- Real-Time Self-Learning fuel maps require no complicated tuning knowledge (Holley EFI software suite is included for advanced users with laptops)
- On-board Multi-Color LED Diagnostic allows quick troubleshooting on critical issues for ECU Power, Engine Running, Wideband Status, TPS Calibration, Crank Signal, Cam Signal.
- Built-in 1bar MAP Sensor with 1/8, 1/4, & 3/16 in. vacuum hose adapters included. For boosted applications, the internal sensor can be disabled to run an external LS style MAP sensor (not included) with terminated harness and connector (included).
- 4 Inputs - 12-volt, Ground, 5-volt, and Frequency can be used for activation triggers, trans brake, and to add extra pressure sensors.
- 4 Outputs - Ground and PWM can be used for electric fans, boost control, nitrous control, idle air control kit, and many more accessories.
- Boost Controls - Ability to control boost vs time, boost vs. gear, boost vs. RPM, boost vs. speed, boost vs. safeties
- Nitrous Controls - Single Channel Wet or Dry, Progressive or Non-Progressive, rich/lean safeties, and target closed-loop AFR
- Advance Tables - 4x 1D Table, 1x 1D Gear Table, 4x 2D Table, 1x 2D per Gear Table. Can be used for custom tables for flex fuel sensor, fuel pressure safety, or oil pressure safety.
- Bosch LSU 4.9 Wideband for precision reading and tuning control (will not function with LSU 4.2 oxygen sensors
- High Impedance Injector Driver powers most GM stock LS and Holley EFI injectors. (Use of low impedance injectors will damage the ECU)
- Holley EFI Accessories are mostly compatible (analog-style gauges, shift lights, and others.)
Note: To calibrate and tune a laptop is required to run the advanced tuning software. For simple setup wizard and tuning without a laptop purchase a kit that has the included 3.500 in. handheld touchscreen.
Specifications:
Does it have transmission control for 4l60E or 4l80e and if so why is it not in the details
