Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC369DP

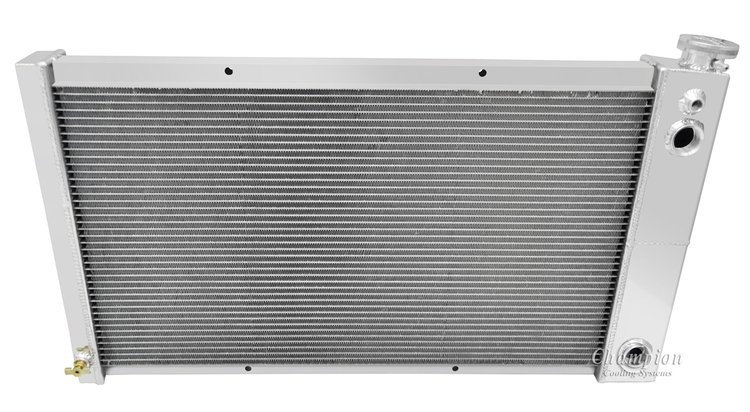

CC369DP LS Conversion/Dual Pass Radiator for 1970-72 Chevy Truck (28" Core)
$33799
5 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM Truck
LS Conversion/Dual Pass Radiator1970-72 Chevy Truck (28" Core) Champion Core 3-Row Aluminum
Champion Cooling Systems CC369DP LS Conversion/Dual Pass Radiator Features:
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- Dual pass bungs for interchangeable fittings
- Saddle mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height6.0
Package Width23.0
Package Length35.5
Weight18.695 PG
Part CategoryReplacement Parts
Overall Height19.25 in.
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet LocationPassenger Side
MaterialAluminum
Mounting TypeSaddle
Core Height17 in.
MountingSaddle
Core Thickness2.25 in (57.15 mm)
Core Width28.25 in.
Row Quantity3
Outlet LocationPassenger
Core MaterialAluminum
Overall Width34
Radiator TypePerformance Replacement
Down Flow Or Cross Flow TypeCross Flow
Radiator FinishNatural
Fan IncludedNo
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part NumberCC369DP
Package Qty1
Package TypeEA
