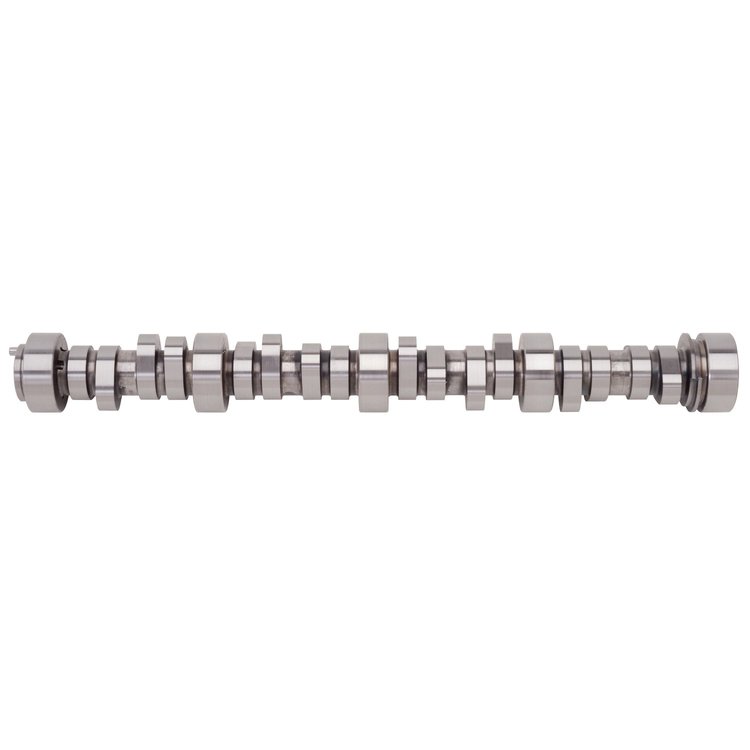

Rollin' Thunder Hydraulic Roller Camshaft for 1997-2004 Chevy LS1/LS6 Gen III
Product Discontinued
EDELBROCKPART NUMBER: 350-2218

Rollin' Thunder Hydraulic Roller Camshaft for 1997-2004 Chevy LS1/LS6 Gen III

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy LS1/LS6
    Rollin' Thunder Hydraulic Roller Camshaft
  • 1997-2004 Chevy LS1/LS6 Gen III
  • Lift: .573''/.580''
  • Duration @ .050: 207°/220°
  • Advertised Duration: 254°/281°
  • 1500-6500 RPM Range

    Cam Notes: This camshaft works great when matched w/ Pro-Flo XT EFI system p/n 350-3529 & E-CNC215 cylinder heads p/n 350-79949; this combo produces 494 HP / 439 ft.-lbs. of torque.
    Recommend valve springs 350-5768, will not work with factory valve springs.
    Use with high stall torque converter only.
    Will not work with stock valve springs.

    Open 16° BTDC
    Close 43° ABDC
    Exhaust Timing @ .050" Open 47.6° BBDC
    Close 7.4° ATDC

    Important Application Information:
    Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandEDELBROCK
Package Height2.75
Package Width2.75
Package Length24.5
Weight10.35 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)220
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)281
Engine Make/SizeChevy Small Block LS1
Intake Valve Lift With Factory Rocker Arm Ratio (I0.573
Int. Duration @ .050 In. (Deg)207
Basic Operating Rpm Range1,500-6,500
Intake Valve Lift0.573 in (14.554 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)254
Lobe Separation (Deg)118
Rpm RangeCustom
Advertised Duration254 int./281 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.58
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.573 int./0.580 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.58 in (14.732 mm)
Advertised Intake Duration254
Intake Duration At 050 Inch Lift207
Exhaust Duration At 050 Inch Lift220
Advertised Exhaust Duration281
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift207 int./220 exh.
Valve Springs RequiredYes
Vendor Part Number2218
Package Qty1
Package TypeEA
