Vehicle Info NeededEDELBROCKPART NUMBER: 350-7122

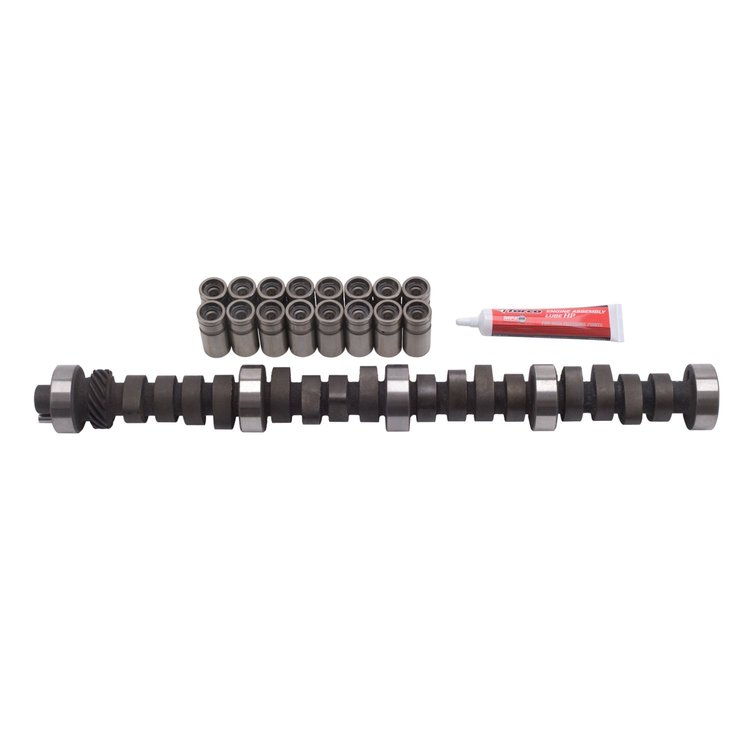

Performer RPM Camshaft Kit for Small Block Ford 289-302
$47395
1 left in stock
Ships Today
Lowest Price GuaranteeFord
- Performer RPM Camshaft Kit
- Small Block Ford 289-302ci
- Lift: .496''/.520
- Duration @ .050: 224°/234°
- Advertised Duration: 290°/300°
- 1500-6500 RPM Range
*Not for 1985 & later engines with roller lifters.
INSTALLATION NOTES:Operating Range 1500-6500 RPM Duration Advertised 290° Intake/300° Exhaust Duration @ .050' 224° Intake/234° Exhaust Lift @ Valve .496' Intake/.520' Exhaust Lift @ Cam .310' Intake/.325' Exhaust Lobe Separation Angle 112° Intake Centerline 107° Intake Timing @ .050" Open 5° BTDC
Close 39° ABDCExhaust Timing @ .050" Open 54° BBDC
Close 0° ATDCVacuum @ 1000RPM Idle 11" - Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7820 (1965½72-1/2) or 350-7811 (1973½90). Accu-Drive gear drive 350-7892 may also be used.
- Do not use dual valve springs. Use recommended Edelbrock valve springs 350-5792.
- Screw-in studs, guideplates and adjustable rocker arms required.
- Use stock ratio rocker arms only.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandEDELBROCK
Package Height3.5
Package Width5.8
Package Length25.3
Weight14.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)234
Cam StyleHydraulic flat tappet
Exh. Duration Advertised (Deg)300
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.496
Int. Duration @ .050 In. (Deg)224
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.496 in (12.598 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290
Lobe Separation (Deg)112
Rpm Range1000-7000
Lifter StyleHydraulic flat tappet
Advertised Duration290 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.52
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.496 int./0.520 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.52 in (13.208 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift234
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration300
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift224 int./234 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number7122
Package Qty1
Package TypeEA
