Vehicle Info NeededCHEVROLET PERFORMANCEPART NUMBER: 809-12499224

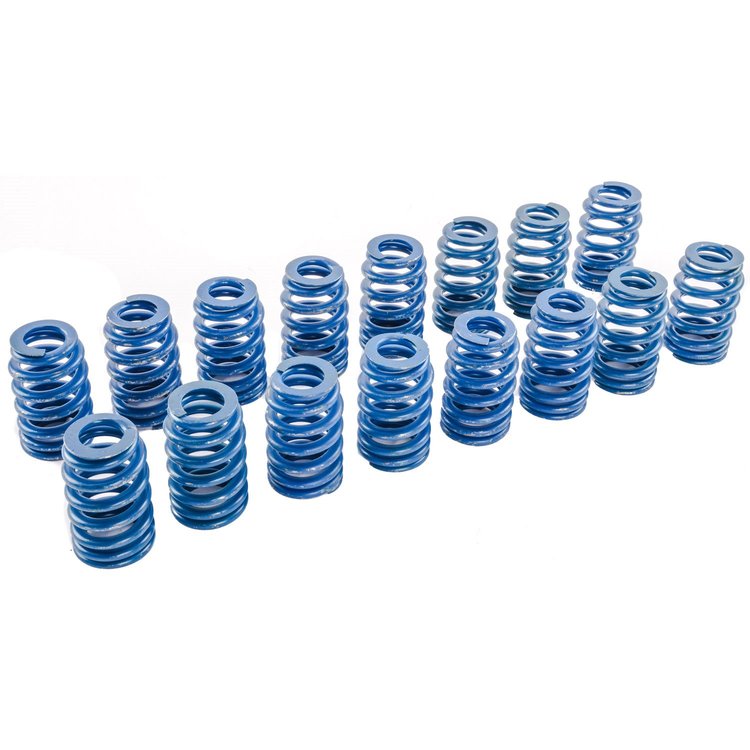

Valve Spring Kit LS2 / LS3 / LS6 Beehive-style
$8599
Ships on Sep 14, 2026
Lowest Price Guarantee
LS2 / LS3 / LS6 Valve Springs
- Valve Spring Kit
- LS2 / LS3 / LS6 Beehive-style
- 1.250'' @ 295 lbs. pressure
- 1.800'' installed height @ 90 lbs.pressure
- Max lift .550''
- Use cap p/n 809-10166344
- Complete Set, 16/pkg.
Part TypeValve Spring
BrandCHEVROLET PERFORMANCE
Package Height4.2
Package Width6.2
Package Length6.6
Weight3.15 PG
Part CategoryPerformance Parts
CoatedNo
Outside Diameter Of Outer Spring1.29 in (32.8 mm)
Coil Bind Height1.085 in (27.559 mm)
Damper Spring IncludedNo
Spring Rate375 lbs./in.
QuantitySold as a set of 16
Valve Spring StyleStandard
Number Of Springs Per ValveSingle
Vendor Part Number12499224
Package Qty1
Package TypeEA
