JEGS Single Fuel Pump Harness and Relay Kit 30 Amp


made in usa

Product Q&A
View Now
Click image to zoom

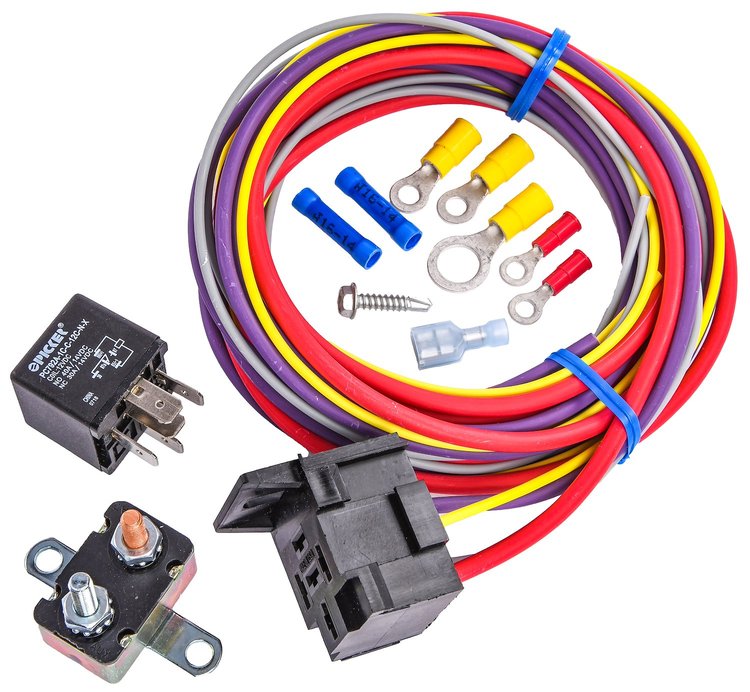

Single Fuel Pump Harness and Relay Kit 30 Amp
SAVE $2.80
More than 10 available
Single Fuel Pump Harness and Relay Kit
  • 30 Amp
  • Includes:
    • (80") 10-18 Ga. High Temp Cross Link Wire
    • (1) 30 Amp Relay
    • (1) 30 Amp Circuit Breaker
    • Crimp Terminals & Hardware
  • Ships

    Items You May Also Consider

    10564 is rated 4.7 out of 5 by 52.
    Rated 5 out of 5 by from Good quality This is good value for your money. I had to extend some wires because it went into a suburban, but none of the other brands were long enough either.
    Date published: 2022-11-03
    Rated 5 out of 5 by from Almost plug and play. Ideal for a design build car project. Just run the wires to ground and switched power. Then constant fused power to relay and in my case on to a electric fuel pump. This is a good quality kit. If you take some pride installing it, you won't need to hide it!
    Date published: 2021-07-13
    Rated 5 out of 5 by from Harness Shipped quickly, came just as advertised. Will buy again.
    Date published: 2021-07-10
    Rated 5 out of 5 by from Easy to install with everything included I have a 2005 350Z engine swapped with a 525/376 LS3 making 525 brake horsepower. To make that horsepower I had to upgrade the pump as well as the wiring and power to it. I tried a DIY and well, it cost me by blowing fuses, relays and having electrical shortages. This kit was perfect and exactly what I needed! Easy to install and I've been driving my car with no issues!! It's powered direct from the battery with the relay turning on when the keys in the ignition. The relay sits on a block with a harness attached to it that eliminate any chances for electrical shortages. Perfect for what I needed!
    Date published: 2021-04-13
    Rated 5 out of 5 by from Relay kit Actually used this as a key on source for powering a mathers micro command processor. As far as longevity don’t know new install expect to be long lasting as max draw is 10 amps will see if hold coil lasts.
    Date published: 2021-04-06
    Rated 5 out of 5 by from great quality worked exactly as it was suppose to. plenty of wire and needed terminals were included. 5 stars
    Date published: 2021-02-24
    Rated 5 out of 5 by from Value Worked as intended. Great product and value , would buy again.
    Date published: 2021-01-27
    Rated 5 out of 5 by from Looks like a great product I’m doing an Ls swap but have not installed the harness yet will be shortly
    Date published: 2020-09-23
    • y_2024, m_7, d_20, h_7
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_1, bvpage1
    • co_hasreviews, tv_21, tr_31
    • loc_en_US, sid_10001_10001_348946, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    Will the switched power source work if ran from an oil pressure switch instead of key on power? Looking to install in a boat so it has to kill fuel pump power if engine stalls.

    Asked by: RossT
    The Jegs 555-10564 harness kit is recommended for keyed power.
    Answered by: jshook
    Date published: 2023-07-20

    How long is the wire and if I wanted to put this in a JEGS Flexbraid Wire Cover what Diameter would you recommend? What would you recommend for attaching to body when routing it to my stealth tank in my 1973 dodge dart?

    Asked by: Wburn
    The wire kit is 80" long and we would recommend a 1/2" flex braid cover. You can use this Part Number: 555-82035 to mount.
    Answered by: Rusty B
    Date published: 2023-08-22

    Will this relay kit work with a Walbro efi pump rated at 58psi?

    Asked by: Ragingbull340
    Yes, this kit will work in your application.
    Answered by: Rusty B
    Date published: 2023-01-01
