JEGS Street Fuel Filter Height: 5.25"

JEGS 15172

555-15172

jegs shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee

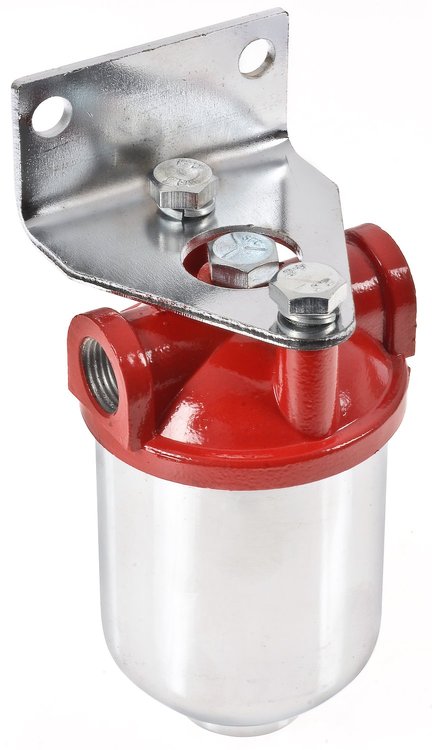

JEGS Street Fuel Filter Height: 5.25" $34.94
Street Fuel Filter
  • Height: 5.25"
  • Diameter: 2.45"
  • Maximum psi: 200
  • 3/8" NPT Inlet/Outlet
  • Flows 90 gph at 5 psi

  • JEGS 15172 Details

    Fuel Filters

    Specifications:

    Mounting Bracket Included
    Yes
    Quantity
    Sold individually
    Filter Element Material
    Paper
    Fuel Type
    Gasoline
    Fittings Included
    No
    Fuel Filter Style
    Canister
    Inlet Quantity
    One
    Outlet Quantity
    1
    Clamps Included
    No
    Filter Element Included
    Yes
    Inlet Attachment
    Female Threads
    Outlet Attachment
    Female Threads
    Filter Housing Material
    Steel
    Filter Housing Finish
    Chrome
    Overall Length (in.)
    5.25
    Smallest Particle Filtered
    10 microns
    Inlet Size
    3/8NPT
    Outlet Size
    3/8NPT
    Outside Diameter (in.)
    2.45
    Shipping Weight:
    1.49
    Package Height:
    5.400
    Package Depth:
    3.500
    Package Width:
    3.600

    Recommended for carbureted engines and gasoline only, these fuel filters flow up to 90 gph at 5 psi and withstand up to 200 psi. The Street Filter is more compact than the Comp Filter, which has more filtration surface. Both have a red powdercoated die-cast top with 3/8" NPT female inlet and outlet, chrome-plated bracket, housing, hardware & replaceable element that filters particles down to 10 microns.

    15172 - JEGS Fuel Filters is rated 4.5 out of 5 by 2.
    Rated 4 out of 5 by from Keep it flowing I needed a large fuel filter for my Fast Fuel Injection. The little cinter filter created problems. Problem gone and looks good.
    Date published: 2017-02-01
    • y_2018, m_9, d_20, h_2
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
    • cp_1, bvpage1
    • co_hasreviews, tv_1, tr_1
    • loc_en_US, sid_10001_10001_333290, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    Can this filter be mounted between tank and mechanical fuel pump?

    Asked by: Eas1
    Yes this can be mounted between the fuel tank and mechanical pump.
    Answered by: Rusty B
    Date published: 2017-10-25
