JEGS 51602

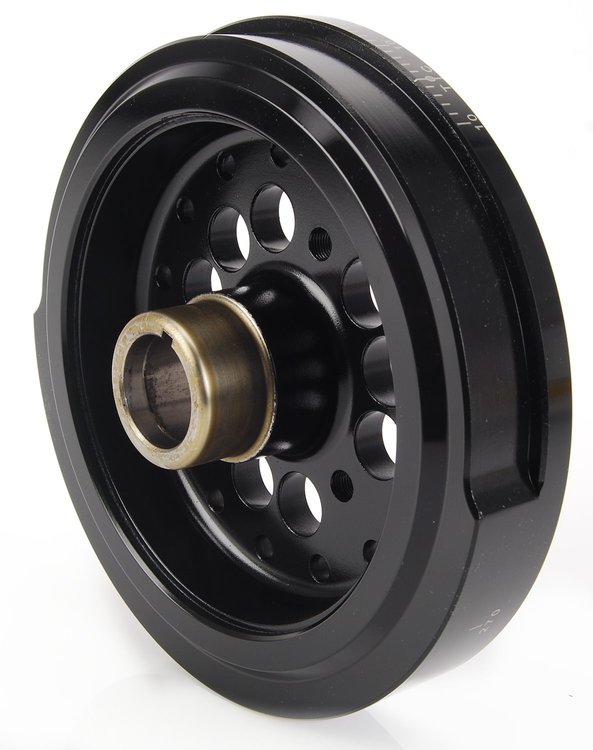

JEGS Small Block Chevy Harmonic Balancer/Damper 8"

555-51602

Free Shipping Estimated to ship on 12/27/18

$168.99
JEGS Small Block Chevy Harmonic Balancer/Damper 8" $168.99
Out of stock
QTY
Small Block Chevy Harmonic Balancer/Damper
  • 8"
  • External Balance
  • 360° Timing Marks
  • Exceeds SFI 18.1 Specifications
  • JEGS 51602 Details

    Small Block Chevy Harmonic Balancers/Dampers


      Features:
    • SFI Accepted
    • Power-Forged Steel Hub
    • Machined Integral Counterweights
    • CNC Machined from 1045 Steel
    • High Gloss Black Finish

    Specifications:

    Degree Markings
    Yes
    Mounting Hardware Included
    No
    Harmonic Balancer Material
    Steel
    Safety Rating
    SFI 18.1
    Harmonic Balancer Construction
    Steel
    Outside Diameter
    8.0 in.
    Degree Marking Range
    360
    Engine Balance
    External
    Pulley Diameter (in.)
    N/A
    Bolt Hole Count
    4
    Crank Bore (in.)
    1.245
    Crank Trigger/Exciter Plate
    No
    Finish
    Black Painted
    Nose OD (in)
    1.766
    Overall Width (in.)
    2.343
    Ring Width (in)
    1.52
    Shipping Weight:
    1.92
    Package Height:
    7.500
    Package Width:
    3.600
    Package Depth:
    24.000
    Manufacturer's Part Number:
    50295

    Professional SFI Harmonic Balancers/Dampers
    Tested to 20,500 RPM!

    JEGS Professional SFI Harmonic Balancers/Dampers are always SFI accepted and not only meet, but far exceed, SFI 18.1 Specifications! We tested our balancers to 20,500 RPM because that is all the test machine could handle! In a push-a-part strength test the woodruff key gave way before our balancer did!!

    Unlike most harmonic balancers manufacturers who injection mold and then cold bond the elastomer ring to the balancer, JEGS Harmonic Balancers are manufactured using a unique process which heat bonds, under extreme pressure, the dampening isolator to the center hub and the inertia ring. This process is proven to eliminate slippage and separation of the hub and inertia ring which is the common cause of harmonic balancer failure. You will also find that many harmonic balancers use a billet aluminum hub. We use a Power-Forged steel hub. Not only does it provide greater strength, without added weight, but it also provides superior wear resistance. Wear resistance is critical to the durability of the oil seal and crank nose areas.

    All counterweighted JEGS Professional SFI Harmonic Balancers/Dampers have machined integral counterweights. Integral counterweights are more secure and accurate than bolt in counterweights, which can lead to engine vibration and other problems.

    Each balancer is precision CNC machined from 1045 steel, balanced to factory O.E.M. tolerances, has 360° timing marks and finished high gloss black finish for looks, strength and durability.


      Features:
    • SFI Accepted
    • Power-Forged Steel Hub
    • Machined Integral Counterweights
    • CNC Machined from 1045 Steel
    • High Gloss Black Finish

    Does JEGS 51602 fit your vehicle?

    Narrow Results
    Filter By Year
    Filter By Model
    Filter By SubModel
    Filter By EngineType
    Filter By CC
    Filter By Aspiration

    1972 CHEVROLET KINGSWOOD

    • CC: 6556
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1970 CHEVROLET EL CAMINO

    • CC: 6555
    • Liter: 6.6
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: K
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1970-1971 CHEVROLET TOWNSMAN

    • CC: 6556
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1970 CHEVROLET EL CAMINO

    • CC: 6588
    • Liter: 6.6
    • SubModel: CUSTOM
    • CUI: 402
    • EngineType: V8 ( 6.6 L / 402 )

    1970 CHEVROLET EL CAMINO

    • CC: 6588
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 402
    • EngineType: V8 ( 6.6 L / 402 )

    1972 CHEVROLET KINGSWOOD

    • CC: 6588
    • Liter: 6.6
    • Aspiration: N
    • SubModel: ESTATE
    • Engine Vin: S
    • CUI: 402
    • EngineType: V8 ( 6.6 L / 402 )

    1972 CHEVROLET KINGSWOOD

    • CC: 6556
    • Liter: 6.6
    • SubModel: ESTATE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1972 CHEVROLET KINGSWOOD

    • CC: 6588
    • Liter: 6.6
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: S
    • CUI: 402
    • EngineType: V8 ( 6.6 L / 402 )

    What's the weight on this balancer, it says 1.92 lbs on this, & the 6 3/4 inch balancer, that can't be correct because I have one on my monza, wanting to know the weight of the 63/4,& 61/4 balancer

    Asked by: james davis
    All three of these balancers are about the same weight. The smaller balacers are thicker and more dense.
    Answered by: Rusty B
    Date published: 2018-08-06

    Is this balancer made by Powerbond? Also does anyone know where it's made?Thanks!

    Asked by: Chrisg7
    Per our purchasing agreement with the manufacture we are not at liberty to give out the manufacture name. These are built to our specs and we warranty these for the period of 1 years from the date purchased. This is made in Australia.
    Answered by: Rusty B
    Date published: 2018-04-13
