JEGS 51610

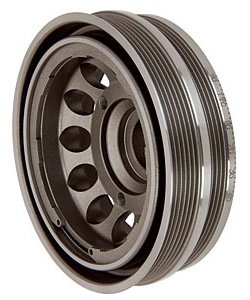

JEGS LS1 Harmonic Balancer/Damper 1998-2002 Camaro/Firebird

555-51610

Free Shipping Ships

$180.99
JEGS LS1 Harmonic Balancer/Damper 1998-2002 Camaro/Firebird $180.99
QTY
LS1 Harmonic Balancer/Damper
  • 1998-2002 Camaro/Firebird
  • Standard Pulley
  • 7.50" Diameter
  • JEGS 51610 Details

    LS1 Harmonic Balancers/Dampers

    Note:
  • 1-piece damper/pulley hub 6-rib design
  • Will not fit Corvette
  • Machined for 3/16" Woodruff key

  • Specifications:

    Degree Markings
    Yes
    Mounting Hardware Included
    No
    Harmonic Balancer Material
    Steel
    Safety Rating
    SFI 18.1
    Harmonic Balancer Construction
    Steel
    Outside Diameter
    7.5 in.
    Degree Marking Range
    40 BTDC to 10 ATDC
    Engine Balance
    Internal
    Pulley Diameter (in.)
    7.08
    Pulley Diameter (in.)
    7.36
    Bolt Hole Count
    6
    Crank Bore (in.)
    1.48
    Crank Trigger/Exciter Plate
    No
    Finish
    Natural
    Nose OD (in)
    2.13
    Overall Width (in.)
    3.65
    Ring Width (in)
    2.23
    Shipping Weight:
    12.75
    Package Height:
    9.800
    Package Depth:
    5.800
    Package Width:
    10.300

    If you turn 12,500 RPM (on purpose or not), our high-performance balancers/dampers can handle it.

    We start with a chunk of 1045 steel, meticulously CNC machine it and fully balance it into harmonic art that meets SFI 18.1 specifications. That's good enough for pretty much every type of racing that there is. Permanently etched timing marks every 2-degrees with additional marks at 90° increments.

    Does JEGS 51610 fit your vehicle?

    Narrow Results
    Filter By Year
    Filter By Make
    Filter By Model
    Filter By SubModel
    Filter By EngineType
    Filter By Liter
    Filter By Aspiration

    1998 PONTIAC FIREBIRD

    • EngineType: ALL
    • SubModel: FIREHAWK

    1998-2002 PONTIAC FIREBIRD

    • Liter: 5.7
    • SubModel: FORMULA
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    2000-2002 CHEVROLET CAMARO

    • Liter: 5.7
    • SubModel: Z28 SS
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    2000 PONTIAC FIREBIRD TRANS AM

    • EngineType: ALL
    • SubModel: ALL

    1999 CHEVROLET CAMARO

    • EngineType: ALL
    • SubModel: SS

    1998 CHEVROLET CAMARO

    • Liter: 5.7
    • SubModel: Z28
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1998 CHEVROLET CAMARO

    • Liter: 5.7
    • SubModel: Z28 SS
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1999-2002 CHEVROLET CAMARO

    • Liter: 5.7
    • Aspiration: N
    • SubModel: Z28
    • Engine Vin: G
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    2002 PONTIAC FIREBIRD TRANS AM

    • EngineType: ALL
    • SubModel: ALL

    2004-2006 PONTIAC GTO

    • EngineType: ALL
    • SubModel: ALL

    Will this balancer except a bolt on crank mandrel?

    Asked by: rs72z
    This has a 3 bolt flange and a center bolt that you can use to bolt on a mandrel.
    Answered by: Rusty B
