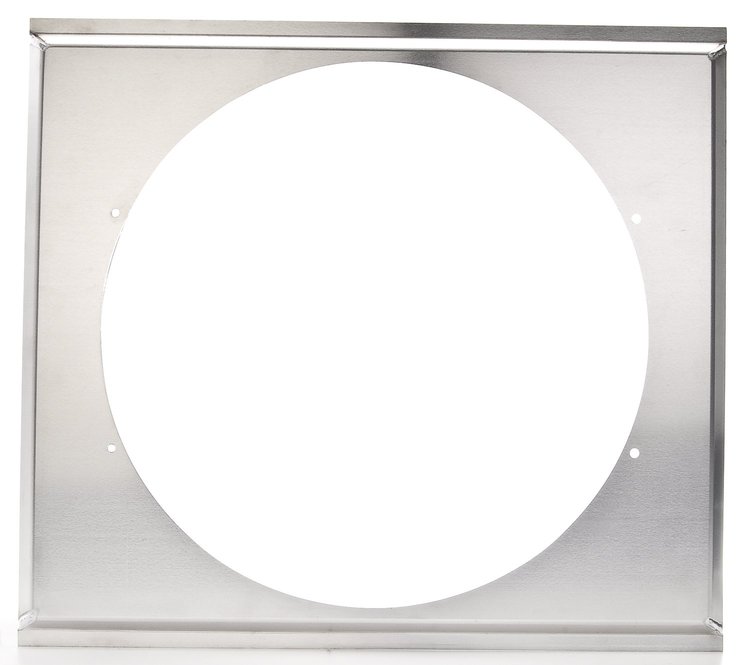

Aluminum Fan Shroud 20 7/8 in. W x 17 1/2 in. H x 1/2 in. Deep
InfoVehicle Info Needed
JEGSPART NUMBER: 555-52063

Aluminum Fan Shroud 20 7/8 in. W x 17 1/2 in. H x 1/2 in. Deep

$8499$91.79You Save$6.80
More than 10 available
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

Aluminum Fan Shroud for 555-52007 & 52017 Radiator
Aluminum Fan Shroud
  • 20 7/8 in. W x 17 1/2 in. H x 1/2 in. Deep
  • Overall Height: 18.5 in.
  • American Made
    For Radiators:
  • 555-52007
  • 555-52017

  • Specifications: 20 7/8 “ wide x 17 1/2 “ high x 1/2 “ deep
  • Designed to fit jegs brand radiator part numbers 555-52007, 555-52017, and other radiators with cores matching the dimensions
  • Made in usa with high quality components and assembly
  • Pre-drilled for one jegs brand part number 555-52105 or 555-52110 electric fan (available separately), but can be modified to work with most 16 inch aftermarket electric fans
  • Constructed from natural aluminum

    • Note:

    • Will fit other radiators with 20.875 in. x 17.5 in. core size
    • Pre-Drilled for the JEGS 555-52105 or 555-52110 Electric Fans but can be modified to work with most 16 in. aftermarket electric fans

      Maximize your electric cooling fans potential!

      When installing an electric fan directly to your radiator you are really only moving air through the area of the fan; creating a large hot spot outside of that area. However, if you add a shroud you are now cooling 100% of the radiator core, which allows you to make more horsepower. Not only will your JEGS Aluminum Fan Shroud help your engine stay cooler, but it will also help it look cooler!

      Show More

      Designed to fit JEGS Universal Aluminum Radiators, and will also work with other radiators that feature the same size core. Each Fan Shroud is pre-drilled for the JEGS Electric Fan, but can be modified to work with most aftermarket electric fans provided they are the proper diameter. All JEGS Fan Shrouds are 1/2 in. deep, ideal for tight spaces.

      JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Part TypeFan Shroud
    Product LineJEGS Fan Shrouds & Fan Shroud Kits
    BrandJEGS
    Package Height2.7
    Package Width20.4
    Package Length26.8
    Weight3.3 PG
    Part CategoryPerformance Parts
    Fan Shroud Width20.875 in (530.225 mm)
    Fan Diameter15.25 in (387.35 mm)
    InstallationBolt-on
    Fan QuantitySingle
    Fan Shroud FinishNatural
    Fan Shroud Thickness0.5 in (12.7 mm)
    Fan Shroud Height17.5 in (444.5 mm)
    Part FitmentUniversal
    Fan Shroud MaterialAluminum
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
