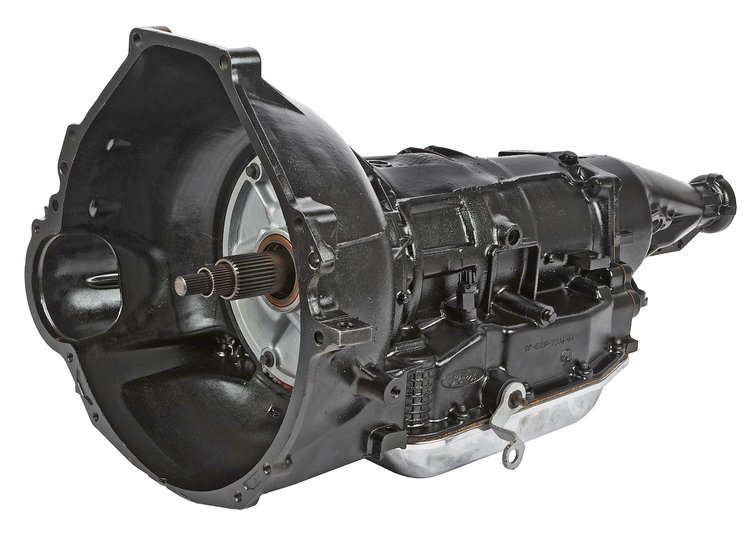

Ford AOD Transmission for 1980-1993 Ford 289, 302, 351W, 351C V8 Engines 2WD
555-603405
Product Q&A
View Now
Click image to zoom
Items You Need
JEGS 52262 - Flexible Braided Transmission Dipstick for Ford AOD [Polished]
$51.29
JEGS 52662 - Flexible Braided Transmission Dipstick for Ford AOD [Black]
$66.99
JEGS 60129 - Flywheel and Flexplate Turning Tool
$12.99
JEGS 60358 - Universal Automatic Transmission Catch Can Billet Construction
$97.99
ACC Performance 10012 - Torque Converter to Flex Plate Bolts Ford
$8.00
| Ratings |
|---|
| Price |
| Brand |
Ford AOD
Transmission Fluid Fill Capacities
JEGS 555-603405 Ford AOD Performance Transmission Features:
- Handles Up To 450 HP
- Seals, gaskets, and rings replaced (Complete overhaul kit)
- New friction plates and steels
- New high-energy front and rear bands
- New bushing throughout
- New front and rear sprags
- New neutral safety switch
- New filter
- Rebuilt front pump with new gears
- Rebuilt valve body with shift kit installed
- Works with OEM Style TV Kickdown Cable on Fuel Injected Applications. For Carbureted Applications we Recommend JEGS Throttle Bracket 555-157050 and Lokar Cable Kit 625-KD-2AODHT
- Shift Pattern: P R N OD/D/1
- Transmission Fluid Capacity: 6.5 quarts
- Speedometer-driven gear and dipstick not included
JEGS 555-603405 Ford AOD Performance Transmission IMPORTANT Notes:
- This JEGS Performance Transmission has gone through rigorous testing to provide you with the best possible replacement transmission
- Here are a few tips to ensure a successful installation
- Follow the manufactures instructions thoroughly
- Before installation, flush any old fluid from your system, including transmission lines, oil cooler, and torque converter to remove any contaminants that could harm your new transmission
- When installing your torque converter, follow the instructions carefully to ensure proper fitment into the transmission input shaft and also attaching to your engine. Specific tolerances are required so that you do not damage the front pump in the transmission or the converter.
- If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
- Precautions: NOTHING can ruin an AOD transmission as quickly as improper TV settings. If you are unclear or uncomfortable with the procedure, do not attempt this adjustment yourself. This information can be found in Ford service manuals for adjusting the TV pressure. Always follow general shop safety rules (never go under a car supported by a jack alone, always chock the wheels, etc.) when performing automotive work.
If you have any problem installing this transmission, before returning it please call the JEGS technical support line. Our experts may be able to assist you with the proper installation.
Specifications:
Part Type
Product Line
Case Material
Aluminum
Dipstick Included
No
First Gear Ratio (Automatic Transmissions)
2.4
Fluid Fill Location
Pan
Input Spline Quantity
35 in (889 mm)
Lockup
Yes
Package Depth
24.00
Package Height
30.00
Package Width
24.00
Pan Type
Stock
Part Category
Performance Parts
Part Fitment
Direct Fit
Quantity
Sold individually
Safety Rating
Not SFI Approved
Shipping Weight
185.00
Trans-Brake Included
No
Transmission Drive Type
RWD
Transmission Mfr. Code
AOD
Valve Body Style
Automatic
Yoke Style
Slip On
603405 is rated
out of
5 by
4.
Rated 5 out of
5
by
Courtland from
Great buy
I bought this transmission a couple of weeks ago. Great customer service. My only con was the transmission needed a lever for a Mustang. The lever that came with it was for a truck.
Date published: 2022-03-07
Rated 4 out of
5
by
LX Mase from
AOD Trans
Cant tell how it works etc its not installed yet ..but Trans looks good, very clean, unpainted, new neutral switch, new Pan and Bolts ... and for shure it was tested because its full of oil ...
Date published: 2022-01-24
Rated 2 out of
5
by
Charles from
Requires Modifications to Fit in Mustang
I ordered this transmission to replace the AOD in a late 80's Mustang as the fitment guide indicated this transmission would fit. The transmission that was shipped came with an 11 inch tail housing and 16 inch output shaft. This setup will not fit in a Mustang unless you obtain a slip yoke that works with undercut splines and you shorten the driveshaft. Also, the shifter arm is installed pointing up and has an offset. You must drop the pan to replace or adjust the shifter arm so that it will work with the Mustang shifter. The transmission hat shipped seems to be a setup for a Lincoln Mark VII, but definitely was not turnkey with a Mustang as the fitment guide indicates.
Date published: 2022-11-18
Rated 1 out of
5
by
AMcCall from
Lemon Transmission & Jegs not responding
Transmission pan gasket, output shaft gasket, & tail shaft seals leaked after installation per faulty manufacturing. Had to pay to have it taken back apart and resealed. Have contacted Jegs customer service through email with no reply. So frustrating.
Date published: 2023-11-21
Wil it fit a Mustang 1991 LX and witch Company is building this Transmission?
The Jegs 555-603405 transmission will fit a '91 Mustang and is made by a private label company to our specifications.
Date published: 2023-12-01
What type of Warranty comes with the purchase of this transmission?
The Jegs 555-603405 transmission is warranted for 1-year from date of purchase.
Date published: 2023-10-10
Can I put a stall converter in it,&transbrake?
The Jegs 555-603405 transmission can have a stall and brake added by the end user.
Date published: 2023-09-01
Will this fit a 1988 f150 with 302 would I have to make any changes to length of drive shaft?
The Jegs 555-603405 transmission will work with an '88 F150, modifications could be necessary.
Date published: 2023-08-24
does this transmission fit a 351w
The Jegs 555-603405 transmission will bolt to a 351W.
Date published: 2023-07-28
Does this transmission have a hole at the bottom of the bell housing to acess the drain plug in the torque converter? Also, is this the non-computerized version of the aod?
The Jegs 555-603405 transmission does not have a drain plug access and is a non-computerized version.
Date published: 2023-07-19
Does this AOD come with a torque converter? And is there a core charge?
The Jegs 555-603405 transmission does not come with a converter. It does not have a core charge
Date published: 2023-04-18
Will it fit a 1972 351C
The Jegs 555-603405 transmission will bolt to a 351C.
Date published: 2023-04-18
