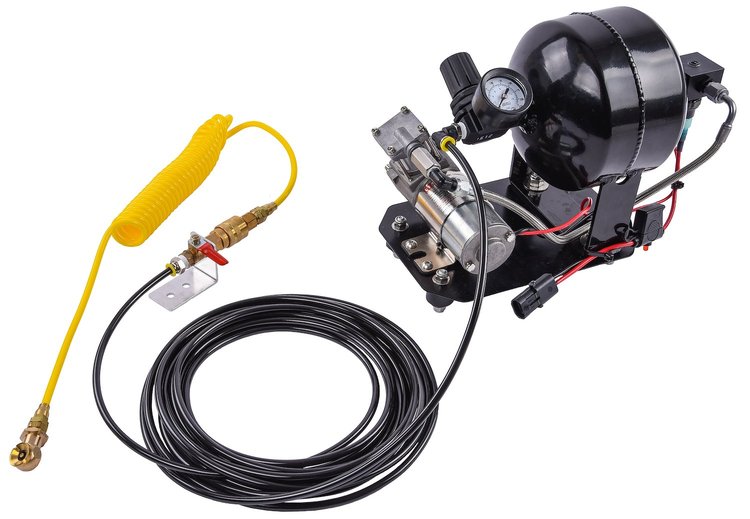

Features:

Air Pump

• 12-Volt, max 12 amp draw
• 0-120 PSI pump fill rate, 1 Min.
• Max work pressure 130 PSI
• Dimensions: 5.600 in. L x 3.100 in. W x 4.700 in. H

Air Tank

• 1/2 Gallon capacity
• Emergency fill valve
• 150 PSI rated
• Adjustable regulator with gauge for consistent pressure
• Built in pressure switch automatically cycles pump
• Air hose quick connect fitting
• Petcock drain
• Dimensions: 5.750 in. L x 6 in, W x 7.360 in. H

Mounting

• 12.500 in. L x 6 in. W steel mounting plate
• Vibration isolators to minimize noise & vibration
• Braided stainless steel hose connecting, pump to tank
• Small enough to mount in the nose of most dragsters or trunk of a car
• Assembly overall dimensions: 12.50 in. L x 6 in. W x 9.875 in. H

Includes:

• 12-Volt air compressor
• 1/2 Gallon air tank
• 1/4 in. recoil air hose & tire chuck
• Quick coupler with shut off valve
• 14 Gauge wiring with 30 amp fuse holder and weatherpack connection
• 25 ft. x 1/4 in. black air line tubing
• Mounting plate and mounting hardware
• Installation Instructions
