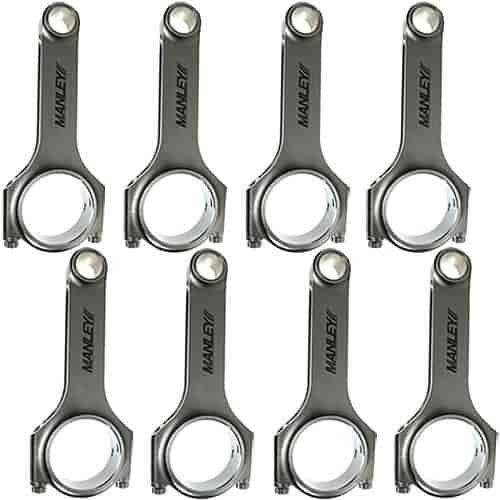

SB-Chevy H-Beam Connecting Rods Standard Weight Series
InfoVehicle Info Needed
MANLEYPART NUMBER: 660-14054-8

SB-Chevy H-Beam Connecting Rods Standard Weight Series

$79638
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Connecting Rod Vise for All Rod Sizes [Red Anodized Aluminum]

PROFORM

Connecting Rod Vise for All Rod Sizes [Red Anodized Aluminum]

Part Number : 778-66769
$6999
Billet Aluminum Rod Bolt Stretch Gauge Made in the USA

JEGS

Billet Aluminum Rod Bolt Stretch Gauge Made in the USA

Part Number : 555-80591
$7099$76.99
You Save$6.00
Connecting Rod Balancer Scale Fixture [Two Mandrels, Weighs Each End Separately]

PROFORM

Connecting Rod Balancer Scale Fixture [Two Mandrels, Weighs Each End Separately]

Part Number : 778-66844
$27399
Handheld Rod Splitting Tool 1.980"-2.330" Diameter

PROFORM

Handheld Rod Splitting Tool 1.980"-2.330" Diameter

Part Number : 778-67905
$6999

Large Crankshaft Journal
  • ARP 8740 Cap Screws
    • SB-Chevy H-Beam Connecting Rods
    • Standard Weight Series
    • 6.000'' (+.300) Center-to-Center
    • 2.100'' Crankshaft Journal Size (Large)
    • 2.225'' Big End Bore
    • 0.9281'' Piston Pin Bore
    • ARP 8740 Cap Screws
    • 640 Grams
    • 8/pkg.

      NHRA legal for Oldsmobile 307ci, 350ci, 403ci Stock and Super Stock Class.

      *NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.

    Forged 4340 Steel Connecting Rods

    The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market.

    Show More

    Features:

    • Manufactured from 4340 forgings
    • Heat treated, stress relieved, shot peened and 100% magnafluxed
    • Weight matched sets +/- 1.5 grams
    • Cap fasteners are premium 7/16'' ARP 8740 or optional ARP 2000 cap screws
    • Horsepower range: Drag Race - 750 HP (ARP 8740), 900 HP (ARP 2000) / Oval Track - 725 HP (ARP 8740), 775 HP (ARP 2000)

    Connecting Rod Common Specs:

    • Crankshaft Pin Diameter: 2.000'' (Small Journal); 2.100'' (Large Journal)
    • Crankshaft Pin Width: 0.941''
    • Piston Pin Diameter: 0.9281'' (for .927'' diameter pin)
    • Piston Pin Width: 1.060''
    Part TypeConnecting Rod
    Product LineManley Small Block Chevy Standard Weight Series H-Beam Connecting Rods
    BrandMANLEY
    Package Height4.7
    Package Width9.2
    Package Length9.8
    Weight13.4 PG
    Part CategoryPerformance Parts
    Rod Journal Diameter2.1 in (53.3 mm)
    Big End Bore Diameter2.225 in (56.515 mm)
    Part FitmentSemi Universal
    ToolStroker Combinations
    Connecting Rod Length Center To Center6 in (152.4 mm)
    Vendor Part Number14054-8
    Package Qty1
    Package TypeEA
