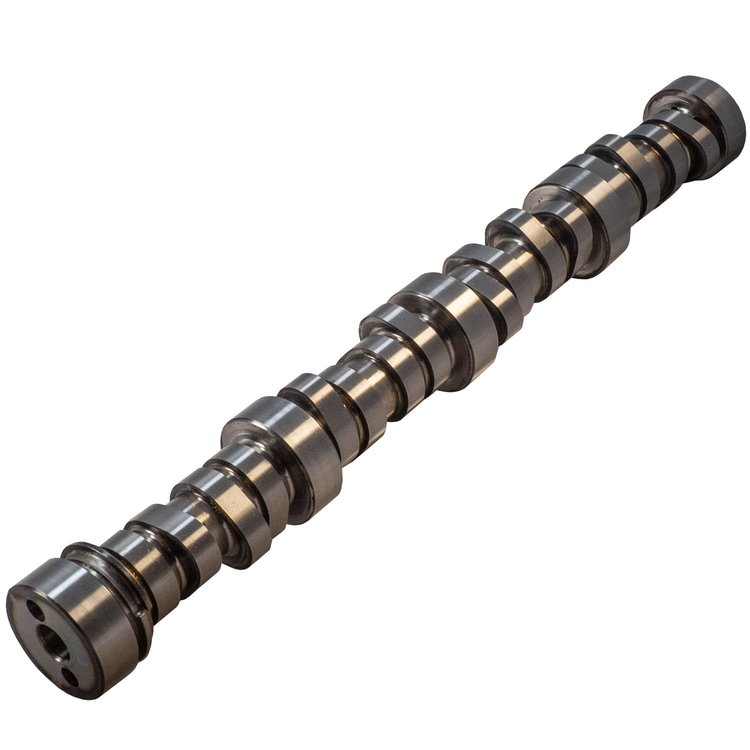

MTC-7 Hydraulic Roller Camshaft for Select GM 4.8L, 5.3L, 5.7L, 6.0L, 6.2L LS Engines
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-MTC-7

MTC-7 Hydraulic Roller Camshaft for Select GM 4.8L, 5.3L, 5.7L, 6.0L, 6.2L LS Engines

$36599
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM
Hydraulic Roller Camshaft
  • GM 4.8L, 5.3L, 5.7L, 6.0L, 6.2L LS Engines
  • Lift: 0.515 in./0.522 in.
  • Duration @ 0.050 in.: 206 Degrees / 212 Degrees
  • Lobe Separation: 112 Degrees

    Melling MTC-7 Hydraulic Roller Camshaft Features:

    • Low rpm torque and mid-range performance
    • Good idle quality
    • Will work with a stock or a slightly modified engine
    • Works for both manual and automatic transmissions
    • Made from billet steel

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeCamshaft
    BrandMELLING
    Package Height3.45
    Package Width4.1
    Package Length22.25
    Weight10.105 PG
    Part CategoryPerformance Parts
    Rocker Arm Ratio1.7
    Intake Duration At .050 Inch Lift206 DD
    Lobe Separation112 DD
    Exhaust Valve Lift0.522 in.
    Advertised Intake Duration262 DD
    Intake Valve Lift0.515 in.
    Exhaust Duration At .050 Inch Lift212 DD
    Advertised Exhaust Duration268 DD
    Lifter TypeHydraulic Roller
    Part FitmentDirect Fit
    Computer Controlled CompatibleNo
    Cam TypeHydraulic
    Grade TypePerformance
    Vendor Part NumberMTC-7
    Package Qty1
    Package TypeEA
