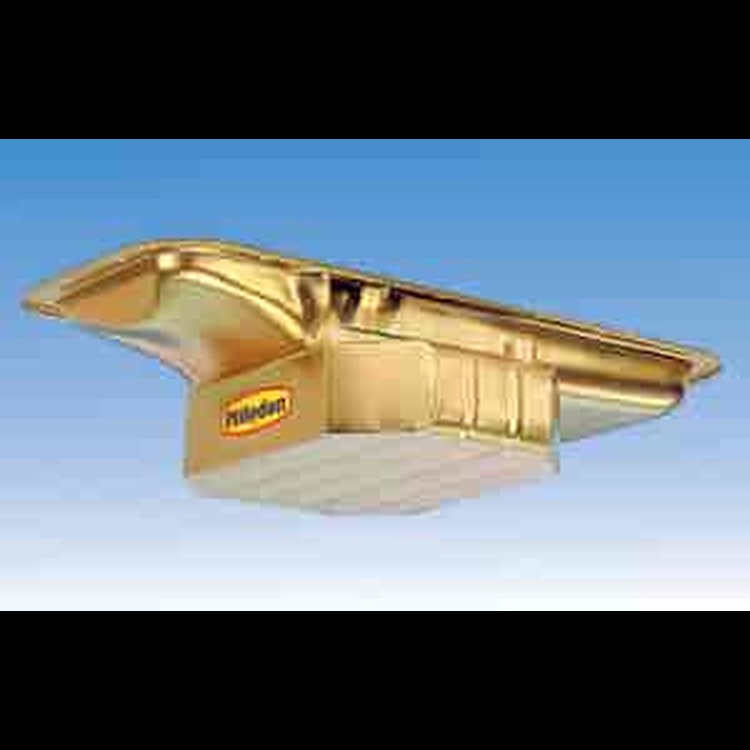

Road Race Oil Pan Big Block Chrysler 383 / 426 / 440
InfoVehicle Info Needed
MILODONPART NUMBER: 697-31580

Road Race Oil Pan Big Block Chrysler 383 / 426 / 440

$61995
ShippingShips on Sep 07, 2026
Lowest PriceLowest Price Guarantee

Chrysler
Road Race Oil Pan
  • Big Block Chrysler 383 / 426 / 440
  • 7-Quart Capacity Plus Filter
  • 5-1/2'' Sump Depth

    Requires pickup 697-18338.

    Designed for high horsepower cars that are very low. Cars with big cubic inches, big tires and improved suspension make this pan a necessity.

    A stock location sump pan for use in stock Chrysler B & E body chassis. Wide sump increases capacity yet allows ample ground clearance. Fully baffled for competition use. Stock steering will not interfere with this pan.>/p>

    • Pan Capacity is 7 Qts. Plus Filter
    • 5 1/2" Sump Depth



      • Milodon's Road Race Oil Pans are proven highly effective in SCCA and other road race competitions, delivering good oil supply on left and right turns due to the trap door baffles. The windage tray within the oil pan keeps oil under control and reduced splash-back onto the crank for maximum performance. These pans fit the most popular chassis and offer low-profile clearance for pro-touring style lowered suspension.

    Part TypeOil Pan
    Product LineMilodon Road Race Oil Pans
    BrandMILODON
    Package Height9.0
    Package Width15.0
    Package Length25.0
    Weight18.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Dipstick ProvisionNo
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishGold iridited
    Kickout PositionDriver and passenger side
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod4.75 in (120.65 mm)
    Gaskets IncludedNo
    Oil Pan Depth5.5 in (139.7 mm)
    Rear Main Seal Style2-piece
    Sump LocationCenter
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Part FitmentSemi Universal
    Kicked OutYes
    Stroker ClearancedYes
    Vendor Part Number31580
    Package Qty1
    Package TypeEA
