Made in USA

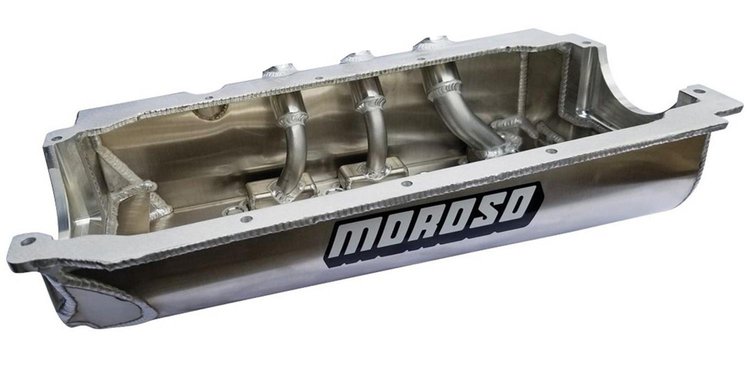

Aluminum Dry Sump Oil Pan for Dart and Rocket Spread Rail Blocks
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-21564

Aluminum Dry Sump Oil Pan for Dart and Rocket Spread Rail Blocks

$1,14799
ShippingShips on 11/16/2026
Lowest PriceLowest Price Guarantee

Items You Need

AN Port Adapter Fitting -16 AN port (1 5/16 in.-12 Thread) to -16 AN hose

JEGS

AN Port Adapter Fitting -16 AN port (1 5/16 in.-12 Thread) to -16 AN hose

Part Number : 555-110173
$2058$21.19
You Save$0.61
AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

JEGS

AN Port Adapter Fitting -12 AN port (1 1/16 in.-12 Thread) to -12 AN hose

Part Number : 555-110170
$1809$19.99
You Save$1.90
H/P Oil Pan Gasket Rubber-coated/steel core

FEL-PRO

H/P Oil Pan Gasket Rubber-coated/steel core

Part Number : 375-1839
$4199
Engine Oil Pan Stud Kit Fits SBC, SBF, BBF, Mopar, Olds & Pontiac

JEGS

Engine Oil Pan Stud Kit Fits SBC, SBF, BBF, Mopar, Olds & Pontiac

Part Number : 555-83330
$1461$15.99
You Save$1.38

Dart/Rocket
Aluminum Dry Sump Oil Pan
  • Dart and Rocket Spread Rail Blocks
  • (3) Oil Pickups
    • (2) -12 AN Female
    • (1) -16 AN Male
  • Large Kick-Out Design
  • Oil Collection Trough
  • Rear Baffle
  • Billet Seal Ends
  • Does not Include Adapter Fittings

    Dimensions

    Moroso 21564 Aluminum Dry Sump Oil Pan Features:

    • Fits Engine Blocks with oil pan rails that are spread .400 in. wider per side (.800 in. wider than stock) (All sold separately)
    • Requires Fel-Pro H/P Oil Pan Gasket 375-1839 (sold separately) or equivalent
    • -16 AN O-Ring welded in bung requires JEGS AN Port Adapter Fitting 555-110173 (sold separately)
    • -12 AN O-Ring weld in bungs require (2) JEGS AN Port Adapter Fittings 555-110170 (sold separately)
    • Includes drain plug

      • Premium Fabricated Oil Pans for Racing

      Moroso manufactures dry sump pans for many racing classes including, but not limited to, Oval Track, Road Racing, and Drag Racing. Each pan includes a maximum-sized kick-out, block-high scraper, uni-directional windage tray screen, and special baffling. These race-winning features produce the ultimate in dry sump technology and the highest horsepower gain possible for making it to the winner's circle.

    Part TypeOil Pan
    Product LineMoroso Dry Sump Oil Pans
    BrandMOROSO
    Package Height1.72
    Package Width9.12
    Package Length24.62
    Weight11.0 PG
    Part CategoryPerformance Parts
    Oil Pan MaterialAluminum
    Gaskets IncludedNo
    Hardware IncludedNo
    Dipstick ProvisionNo
    BaffledNo
    Rear Main Seal Style2-piece
    Sump StyleDry
    QuantitySold individually
    Oil Pan FinishNatural
    Part FitmentSemi Universal
    Kicked OutYes
    Vendor Part Number21564
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
