Powermaster 58137
Representative Image
Product images may differ from actual product appearance.

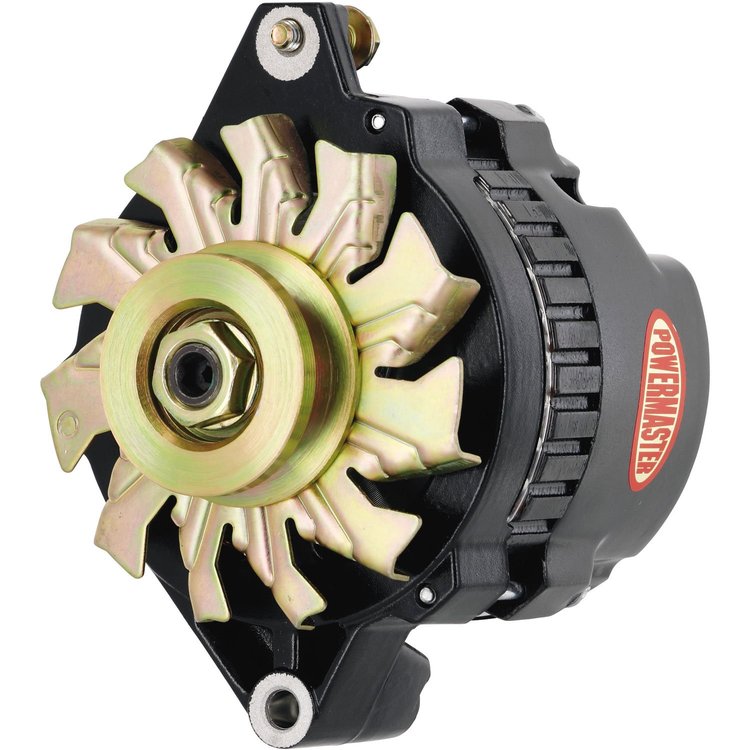

Powermaster XS Volt CS130 Straight Mount 6.14" Alternator 140 Amp

713-58137

made in usa
Free Shipping Ships directly from the manufacturer on 09/17/19
Save $20 Off $250, $50 Off $500, $100 Off $1,500, $150 Off $2,500. Promo Code: SAVEMORE exclusions apply

$182.99
Powermaster XS Volt CS130 Straight Mount 6.14" Alternator 140 Amp $182.99
Out of stock
QTY
XS Volt CS130 Straight Mount 6.14" Alternator
  • 140 Amp
  • Black
  • Powermaster 58137 Details

    CS130 140 Amp Straight Mount 6.14" Alternators

    This is a CS-130 Delco Series alternator. This is the shortest of the 3 straight ear versions with a distance of 6.14" center-to-center between the mounting ears. The CS model that will directly replace the 10SI alternators has a 6.61" distance. This CS 130 is available in a 105 amp or 140 amp version. Also available is Powermaster's unique side output post for those applications that need clearance at the rear of the alternator.

    Specifications:

    Pulley Included
    Yes
    Amperage
    140 AMP
    Mounting
    OEM
    Quantity
    Sold individually
    Alternator Brackets Included
    No
    Alternator Finish
    Black powdercoated
    Belt Included
    NO
    One-Wire Capable
    No
    Regulator Included
    Yes
    Voltage Compatibility
    12
    Regulator Style
    Internal
    Advertised Amperage Output
    140 amps
    Alternator Case Style
    GM CS130
    Pulley Style
    Serpentine Pulley
    Manufacturer's Part Number:
    58137
    Shipping Weight:
    11.96
    Package Height:
    9.8
    Package Depth:
    7.1
    Package Width:
    7.7

    GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

    Features:
  • Excellent output at idle
  • Internal and external fans
  • Highly efficient
  • Highest output small case Delco
  • Gold battery post
  • Proof-of-Performance Tag
  • Smooth Back

    Note: Charge Wire Not Included.

    Delco CS130 Alternators
    105A Specifications
  • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

    140A Specifications
  • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000


    Alternator Plug Type

  • Does Powermaster 58137 fit your vehicle?

    Narrow Results
    Filter By Year
    Filter By Model
    Filter By SubModel

    1987-1988  JEEP COMANCHE

    • Liter: 2.5
    • SubModel: LAREDO
    • CUI: 150
    • EngineType: L4 ( 2.5 L / 150 )

    1987-1990  JEEP COMANCHE

    • Liter: 2.5
    • SubModel: PIONEER
    • CUI: 150
    • EngineType: L4 ( 2.5 L / 150 )

    1987  JEEP WAGONEER

    • Liter: 2.5
    • SubModel: LIMITED
    • CUI: 150
    • EngineType: L4 ( 2.5 L / 150 )

    1987-1990  JEEP COMANCHE

    • Liter: 2.5
    • SubModel: BASE
    • CUI: 150
    • EngineType: L4 ( 2.5 L / 150 )

    1987-1988  JEEP COMANCHE

    • Liter: 2.5
    • SubModel: CHIEF
    • CUI: 150
    • EngineType: L4 ( 2.5 L / 150 )

    Does this alternator need a specific plug for excitation? Which harness should I order? Also, what size output wire do I need?

    Asked by: MezAlba
    This will use a standard plug from any of the 10 SI alternator applications or it can be connect manually.
    Answered by: Rusty B
    Date published: 2018-10-10
