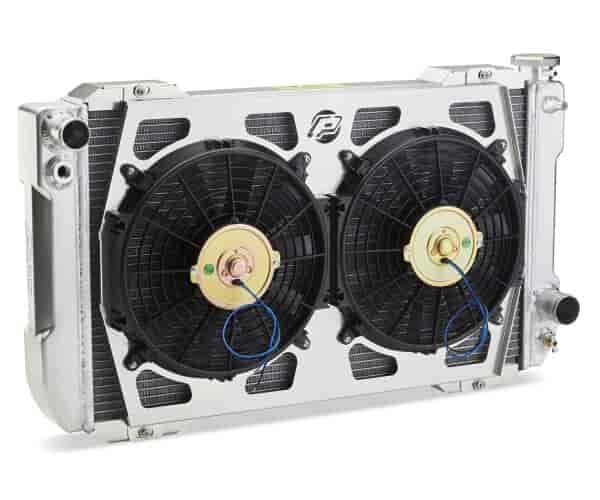

1-2-3 Series Radiator System, Universal GM LS Swap Fitment, for Manual Transmissions, 26 in. Core Width - Natural Finish
InfoVehicle Info Needed
PROFORMPART NUMBER: 778-126LB20

1-2-3 Series Radiator System, Universal GM LS Swap Fitment, for Manual Transmissions, 26 in. Core Width - Natural Finish

$40274$536.99You Save$134.25
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Universal
GM LS
1-2-3 Series Radiator System
  • Universal GM LS Swap Fitment
  • For Manual Transmission Applications
  • 26 in. Core Width
  • 2.400 in. Core Thickness
  • Single-Pass
  • All-Aluminum Construction
  • Natural Finish

    126LB20 Features:

    • Includes (2) 12 in. electric cooling fans, (1) Aluminum fan shroud, (1) Billet aluminum radiator cap, and (1) Thread-in adjustable thermostat controller
    • Patented four-corner design with TIG-welded end tanks
    • Optimized louvers for maximum cooling performance
    • Deep draw headers form an extra solid seal between the tube and header
    • Billet aluminum filler neck with a high-capacity overflow tube
    • Single hookup for GM LS steam port
    • Pre-threaded bungs
    • The cooling fans flow 2,400 CFM
    • Supports up to 800 horsepower
    • 1.500 in. diameter left/driver side inlet
    • 1.750 in. diameter right/passenger side outlet
    • 31.100 in. overall core width
    • Part TypeCooling Fan Kit
    BrandPROFORM
    Package Height8.25
    Package Width22.25
    Package Length32.25
    Weight25.8 PG
    Part CategoryPerformance Parts
    Outlet Size1.75 in (44.5 mm)
    Fan Quantity2
    Wiring IncludedYes
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Shroud MaterialAluminum
    QuantitySold as a kit
    Inlet LocationDriver side
    Inlet Size (In.)1.5
    Core Height18 in (457.2 mm)
    Core Thickness2.4 in (60.96 mm)
    Fan Diameter12 in (304.8 mm)
    Core Width26 in (660.4 mm)
    Row Quantity1
    Outlet LocationPassenger side
    Radiator FinishNatural
    Fan IncludedYes
    Transmission CoolerNo
    Maximum Fan Cfm2,400 cfm
    Shroud ColorNatural
    Radiator StyleCrossflow
    Package Qty1
    Package TypeEA
