Proform 67202

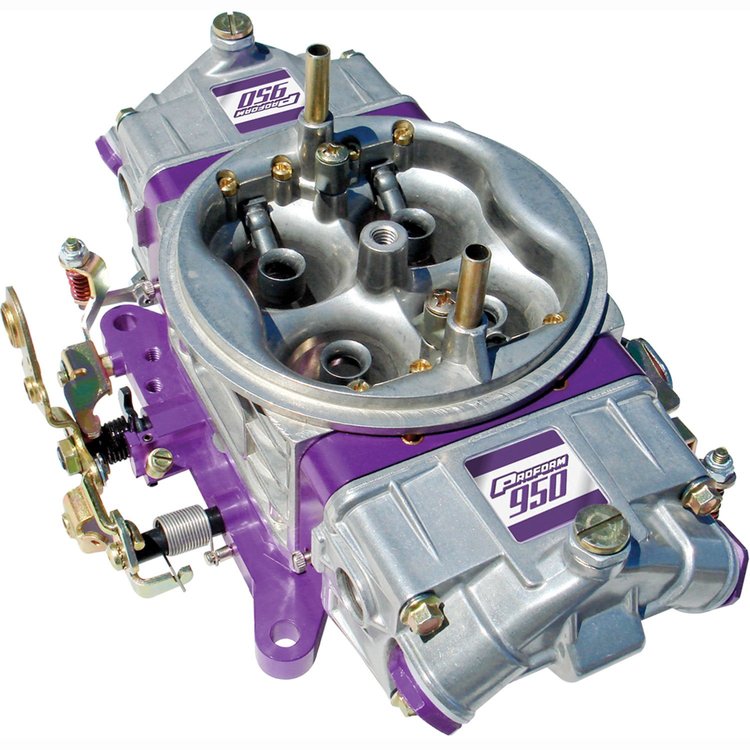

Proform Race Series Mechanical Secondary Carburetor 950 cfm with Billet Metering Blocks & Throttle Base Plate

778-67202

made in usa
Free Shipping Ships

$615.99
Proform Race Series Mechanical Secondary Carburetor 950 cfm with Billet Metering Blocks & Throttle Base Plate $615.99
Out of stock
QTY
Race Series Mechanical Secondary Carburetor
  • 950 cfm
  • Billet Metering Blocks
  • Billet Throttle Base Plate
  • Proform 67202 Details

    Mechanical Secondary Carburetors

  • High Flow Main Body
  • Dyno Proven Horsepower And Torque Gain
  • Adjustable Screw In Air Bleeds
  • High Performance Down Leg Boosters
  • Max Air Flow
  • High Rate Air Flow Section Design

  • Specifications:

    CFM
    950
    Type
    Automotive
    Barrel
    Four
    Choke
    None
    Flange
    Square Bore
    Emission
    Without EGR
    Usage
    Racing
    Finish
    Powder Coated Chrome
    Finish
    Dichromate
    New Or Remanufactured
    New
    Calibration
    Universal
    EGR
    Without EGR
    Emissions
    49 State Legal
    Finish
    Polished and Anodized
    Flange Style
    Square Bore
    Fuel Inlet
    Dual
    Throttle Linkage
    Universal
    Carburetor Flange
    Square bore
    Ford Kickdown
    No
    Fuel
    Gasoline
    Quantity
    Sold individually
    Secondary Type
    Mechanical
    Throttle Linkage Type
    Universal
    Manufacturer's Part Number:
    67202

    Proform offers a variety of affordable, high performance race carburetors assembled by hand in the USA. Utilizing the Proform high-flow main body, durable billet metering blocks and billet throttle baseplates. Available in race and black race series.

    Key Features:

    Main Body:
  • All aluminum design.
  • Tumbled finish for a high luster that protects against contaminants.
  • Black Diamond Coating to reduce fuel temperature up to 6% (black series).
  • High-flow design.
  • Center-hung floats.
  • Changeable screw-in air bleeds.
  • Adjustable screw in-type air bleeds (black series).
  • High-performance down leg boosters.
  • Recessed air bleeds out of air stream to improve airflow.
  • Maximum airflow and dyno-proven horsepower and torque gains.

    Metering Blocks:
  • Billet aluminum.
  • No warping or porosity problems.
  • Changeable idle feed restrictors.
  • Manufactured in the U.S.A

    Throttle Baseplate:
  • Billet aluminum.
  • New designed throttle lever with integrated Ford A/T kickdown, GM 700-R4 mounting holes and ability to mount brackets for Chrysler vehicles (black series).
  • Adjustable secondary airflow cam bracket.
  • Torx throttle plate screws.
  • Power valve blowout protection.
  • Welded throttle shaft.
  • Slip link linkage on mechanical secondary models.
  • Timed and full vacuum tubes for accessories and tuning.
  • Manufactured in the U.S.A

    Fuel Bowls:
  • Die-cast aluminum.
  • Fuel level sight glass window.
  • Notched secondary floats.
  • Secondary jet extensions.

    JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
