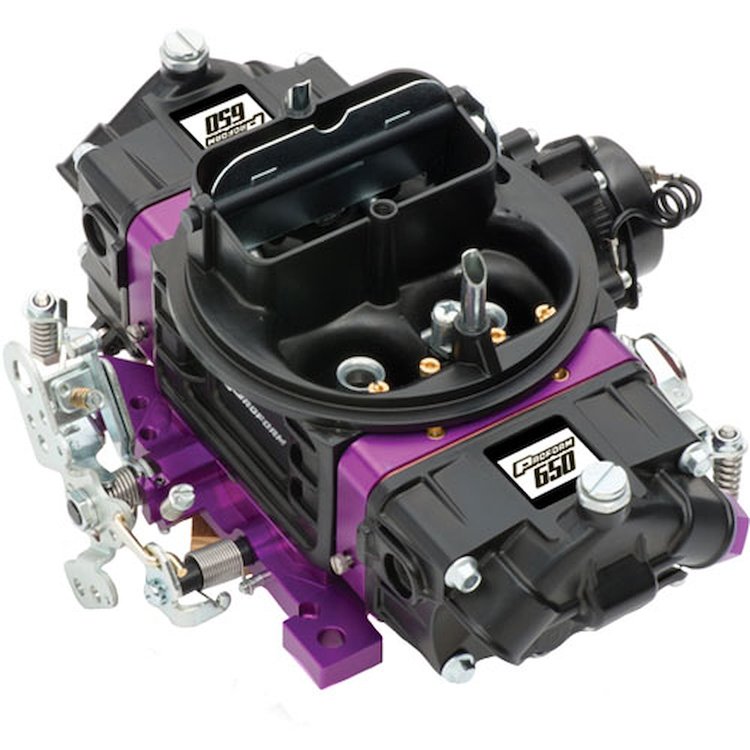

Street Series Mechanical Secondary Carburetor 650 cfm in Black Diamond Finish with Electric Choke
Product Discontinued
PROFORMPART NUMBER: 778-67312

Street Series Mechanical Secondary Carburetor 650 cfm in Black Diamond Finish with Electric Choke

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Items You Need

Dual Feed Fuel Line Kit for Holley 4150 Carburetors [-6 AN, Black]

JEGS

Dual Feed Fuel Line Kit for Holley 4150 Carburetors [-6 AN, Black]

Part Number : 555-110824
$7199$79.99
You Save$8.00
Aluminum Carb Linkage Bushing 1/4"-28 Threaded

JEGS

Aluminum Carb Linkage Bushing 1/4"-28 Threaded

Part Number : 555-15219
$1499$16.99
You Save$2.00
Carburetor Cap Holley, AFB, Quadrajet

JEGS

Carburetor Cap Holley, AFB, Quadrajet

Part Number : 555-15221
$1499$16.99
You Save$2.00
Throttle Bracket with Return Springs for GM Style Cable [Clear Anodized Finish]

JEGS

Throttle Bracket with Return Springs for GM Style Cable [Clear Anodized Finish]

Part Number : 555-15230
$7999$87.99
You Save$8.00

Mechanical Secondary Carburetors
    Street Series Mechanical Secondary Carburetor
  • Black Diamond Finish
  • 650 cfm
  • Electric Choke
  • Billet Metering Blocks & Throttle Plate

Based on the wildly successful Race Series carburetors the new Proform street carburetors are constructed of lightweight aluminum. They feature changeable idle air bleeds for easy non-permanent calibration changes if needed. This means you can keep your drills in your tool box because fine tuning is accomplished by simply changing air bleeds not opening calibration restrictions with a drill bit. These carbs are affordable high-performance street carbs assembled by hand in the USA with the following quality components:

Show More


Main Body

  • Aluminum
  • Black Diamond Coating reduces fuel temperature up to 6% (black series).
  • CNC'd flat surfaces
  • High-flow center section design
  • Center-hung floats
  • Changeable screw-in idle air and high-speed bleeds
  • High-performance down leg boosters (except 600 & 650 cfm)
  • Electric choke
  • Choke tower

    Metering Blocks
  • Billet aluminum
  • No warping or porosity problems
  • Changeable idle feed restrictors
  • Nonstick gaskets
  • 4-corner idle system & secondary jet extensions on mechanical secondary models

    Throttle Baseplate
  • Bright anodized billet aluminum
  • Easy-to-access secondary idle airflow adjustment
  • Torx throttle plate screws
  • Power valve blowout protection
  • Slip link linkage on mechanical secondary models
  • Adjustable secondary housing on vacuum secondary models

    Fuel Bowls
  • Die-cast aluminum
  • Fuel level sight glass window
  • Externally adjustable needle & seat
  • Dual feed fuel inlet
  • Notched secondary floats

    JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
Part TypeCarburetor
Product LineProform Street Series Carburetors
BrandPROFORM
Package Height7.5
Package Width11.3
Package Length13.4
Weight9.63 PG
Part CategoryPerformance Parts
Primary Discharge Nozzle Size0.031 in (0.8 mm)
Secondary Discharge Nozzle Size0.031 in (0.8 mm)
Carburetor Height3.25 in (82.55 mm)
Carburetor FinishBlack
Package Qty1
Package TypeEA
