Vehicle Info NeededPROFORMPART NUMBER: 778-BB1000

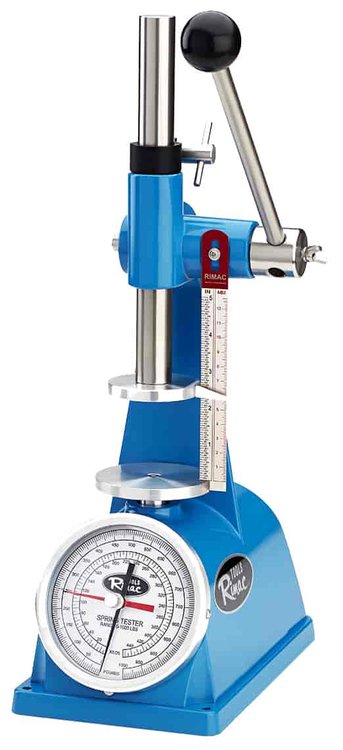

Rimac Big Blue Valve Spring Tester - 0-1,000 lbs.-in. Capacity
$1,00695
Ships on Sep 17, 2026
Lowest Price GuaranteeValve Spring Testers
Rimac Big Blue Valve Spring Tester0-1,000 lbs.-in. Capacity 4 1/4 in. Dial Gauge Ram Spring Travel: 4 5/8 in. Spring Scale Divisions: 1/16 in. / 1 mm Lever-Actuated Compression Cast-Aluminum Blue Powder-Coated Finish
Features:
- The vertical design has holes for benchtop-mounting
- The dial gauge has bold black numbering and graduation marks in pounds (lbs.) and kilograms (kg)
- Spring height values can be marked using the ruler and sliding indicator
- Dimensions:
- Upper Spring Platform Radius: 2 1/4 in.
- Lower Spring Platform Radius: 3 1/4 in.
- Overall Height: 15 1/4 in.
- Base: 5 3/4 in. W x 10 1/4 in. L
- Weight: 17 lbs.
Note: Valve spring(s) NOT included
Part TypeValve Spring Tester
BrandPROFORM
Package Height12.6
Package Width15.1
Package Length20.5
Weight21.61 PG
Part CategoryAccessories
Spring Pressure Range0-1,000 lbs./in.
QuantitySold individually
Valve Spring Tester StyleBench mounted
Spring Pressure TestedInstalled height
Part FitmentUniversal
Package Qty1
Package TypeEA
