Single Oil Filter Relocation Kit GM LS Engines
InfoVehicle Info Needed
TRANS DAPTPART NUMBER: 969-1012

Single Oil Filter Relocation Kit GM LS Engines

$16999
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Single Oil Filter Relocation Kits
    Single Oil Filter Relocation Kit
  • GM LS Engines
  • -10 AN Fittings For Aftermarket Oil Pans
  • 1/2 in. NPT Ports
  • Uses PH8A or Equivalent Filter
  • Cast Aluminum

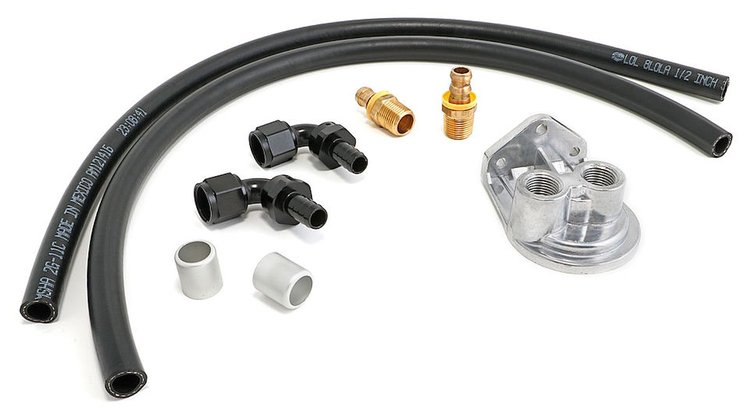

    Trans Dapt Remote Oil Filter Relocation Kits increase oil capacity and allow you to relocate your filter to a location that makes oil changes quicker and easier. Kits include an oil filter bypass adapter, remote oil filter bracket with 0.50" NPT inlets and outlets, two 30" hoses with fittings, mounting hardware and instructions. Each cast aluminum bracket accepts 3/4"-16 spin on oil filters, is CNC-machined to exact tolerances and heat treated to deliver maximum strength and durability. These kits are not for use on diesel engine or marine applications.

    Show More

    The Single Oil Filter Relocation Kits are Trans Dapts original design and the first of its kind on the market. They are considered the premier oil filter relocation kit and include everything except the filters.

    The Dual Oil Filter Relocation Kits are designed to double the filtering capabilities and add an extra quart of oil. Dual filtering reduces oil temperatures while providing maximum engine protection. Filters not included.

    Note: For Use with 969-1156, Fram PH8A or equivalent oil filters (sold separately).

Part TypeOil Filter Relocation Kit
Product LineTrans Dapt Remote Oil Filter Relocation Kits
BrandTRANS DAPT
Package Height4.0
Package Width8.6
Package Length11.9
Weight2.5 PG
Part CategoryPerformance Parts
Oil Filter IncludedNo
Hardware IncludedNo
Thread Size (In.)1/2 NPT
Hose Length30 in (762 mm)
Fittings IncludedYes
QuantitySold as a kit
Part FitmentSemi Universal
Bracket FinishPolished
Hoses IncludedYes
Bracket MaterialAluminum
Vendor Part Number1012
Package Qty1
Package TypeEA
