Weiand 7740-1

Weiand 144 Series Supercharger Kit Small Block Chevy

925-7740-1

made in usa
Free Shipping Ships

$2,535.95
$2,459.87
SAVE $76.08
Weiand 144 Series Supercharger Kit Small Block Chevy $2,459.87
Out of stock
QTY
144 Series Supercharger Kit
  • Small Block Chevy
  • 10-Rib Pulley Width
  • Drive Ratio W/ Included Pulleys: 1.95:1
  • Satin Finish
  • Weiand 7740-1 Details

    144 Series Superchargers - Chevrolet

  • 6" Lower Pulley
  • 3.05" Upper Pulley

  • Specifications:

    Finish
    Satin
    Regulator Included
    No
    Fuel Injectors Included
    No
    Blower Size
    144
    Pulley Style
    Serpentine Pulley
    Wiring Harness Included
    No
    Belt Tensioner Included
    No
    Carburetor Quantity
    One
    Computer Chip/Programmer Included
    No
    Crankshaft Pulley Grooves
    10-groove, serpentine
    Damper Included
    No
    Engine Block Style
    Stock/OEM standard deck
    Fuel Pump Included
    No
    Fuel Rails Included
    No
    Intercooler Included
    No
    Linkage Included
    No
    Nose Style
    Long
    PTFE Lined Rotors
    Yes
    Quantity
    Sold as a kit
    Supercharger Finish
    Satin
    Supercharger Model
    144
    Supercharger Pulley Included
    No
    Manufacturer's Part Number:
    7740-1

    If you are looking for a supercharger to fit under the hood of your hot rod, then Weiand's 142/144 series superchargers are exactly what your looking for! These Pro-Street supercharger kits are designed and engineered to give small block Chevy's 25-40% more power while maintaining outstanding street-ability!

    144 Series Weiand Superchargers feature a low-profile design that offers even more hood clearance than the 142 series. The 144 series is great for tight engine compartments and they are a practical addition to any performance or tow vehicle where hood clearance and/or the use of a long water pump and three v-belts are required. PTFE tipped rotors in the 144 superchargers create tight rotor to case tolerances for improved boost capabilities.

    Both the 142 and 144 series superchargers feature 100% NEW CNC machined parts (no remanufactured components). New thick-wall cases and rotors eliminate high-RPM flex and provide maximum reliability. All superchargers are 100% Boost Tested to help you squeeze the maximum power and efficiency out of your supercharger!

    Features/Benefits
  • 400-450 Horsepower from a mild 350 Chevy.
  • Low-Profile Design (may require cowl induction hood in some applications).
  • Improved torque for heavy cars and towing applications.
  • Great power adder for low compression crate motors.
  • Full-Time Power every time you hit the gas with no lag!

    Installation Notes:
  • Superchargers are perfectly suited for stock/modified engines with 7.5:1 to 9:1 compression ratios.
  • Superchargers mount to manifold using 4 bolts through the bearing plates.

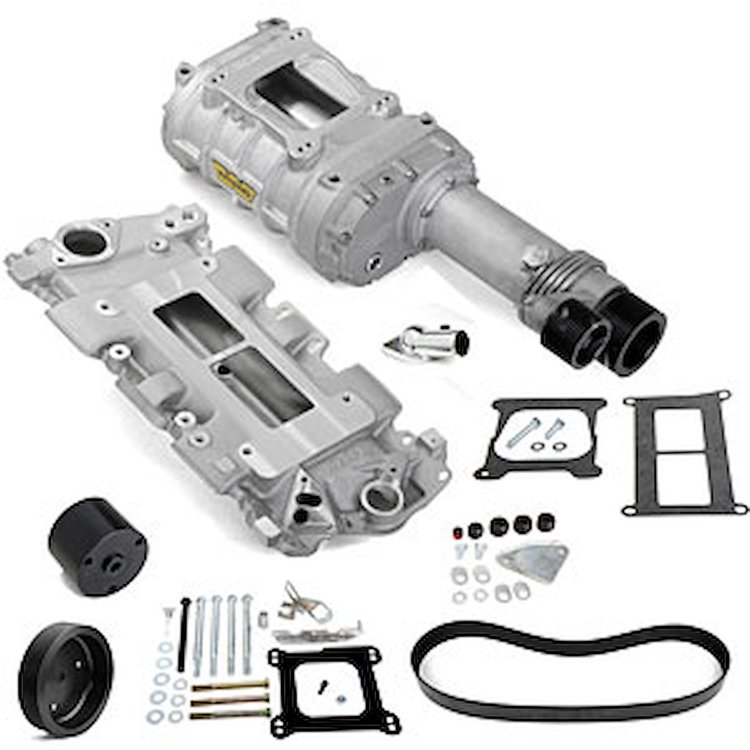

    Kits Include: Manifold, Blower Assembly, Drive Snout, Pulleys, Belt and Hardware.

    Supercharger Troubleshooting Guide

  • Does Weiand 7740-1 fit your vehicle?

    Narrow Results
    Filter By Year
    Filter By Make
    Filter By Model
    Filter By SubModel
    Filter By EngineType
    Filter By CC
    Filter By Liter
    Filter By Aspiration

    1970-1973 CHEVROLET G10 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SPORTVAN
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975-1978 GMC K15 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: SIERRA CLASSIC
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1972-1973 CHEVROLET K10 PICKUP

    • CC: 5736
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • EngineType: V8 ( 5.7 L / 5736 CC )

    1981-1986 GMC C2500 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975 CHEVROLET NOVA

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: POLICE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1978-1981 CHEVROLET MONTE CARLO

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: LANDAU
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1981 CHEVROLET C10 PICKUP

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: DELUXE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1985-1987 CHEVROLET CAMARO

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: Z28
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1972 CHEVROLET KINGSWOOD

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • Aspiration: N
    • SubModel: ESTATE
    • Engine Vin: K
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1988-1990 CHEVROLET CAMARO

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: IROC-Z
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979-1980 GMC K2500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1969-1973 CHEVROLET CAMARO

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: RS
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1976 CHEVROLET K5 BLAZER

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1978-1979 PONTIAC PHOENIX

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: LJ
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1995 GMC C1500 PICKUP

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SIERRA SLE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1977 CHEVROLET CORVETTE

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: L
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1969-1971 CHEVROLET C20 PICKUP

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1979-1986 GMC C2500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1978 OLDSMOBILE OMEGA

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SX
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1974 CHEVROLET MONTE CARLO

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: L
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1976 CHEVROLET MONTE CARLO

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • EngineType: ALL
    • SubModel: LANDAU

    1980 CHEVROLET G10 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SPORTVAN
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1972 CHEVROLET BLAZER

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1984 CHEVROLET G20 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BONAVENTURE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975 CHEVROLET MALIBU

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CLASSIC
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1969 GMC K1500 PICKUP

    • CC: 5012
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V6 ( 5.0 L / 305 )

    1982 GMC C1500 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SIERRA GRANDE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975 GMC G35/G3500 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • EngineType: ALL
    • SubModel: VANDURA SPECIAL

    1970-1973 GMC K15/K1500 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1977 OLDSMOBILE OMEGA

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: DELUXE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1974 CHEVROLET EL CAMINO

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SS
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1969-1971 CHEVROLET K10 SUBURBAN

    • CC: 5736
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979 CHEVROLET MONZA

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: 2+2 SPYDER
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1988-1995 CHEVROLET K1500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SILVERADO
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1972 CHEVROLET CAPRICE

    • CC: 6556
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1979 GMC C2500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1972 CHEVROLET C10 PICKUP

    • CC: 5736
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1976 CHEVROLET MALIBU

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: CLASSIC
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1974 CHEVROLET G20 VAN

    • CC: 5736
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SPORTVAN
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1973 CHEVROLET MALIBU

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1979-1986 GMC C1500 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SIERRA CLASSIC
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1968 GMC C25/C2500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.4
    • SubModel: BASE
    • CUI: 327
    • EngineType: V8 ( 5.4 L / 327 )

    1957 CHEVROLET BEL AIR

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 4.6
    • SubModel: NOMAD
    • CUI: 283
    • EngineType: V8 ( 4.6 L / 283 )

    1981-1986 CHEVROLET K20 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CUSTOM
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1988-1995 CHEVROLET K3500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CHEYENNE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1984-1986 PONTIAC BONNEVILLE

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: LE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1977-1978 CHEVROLET EL CAMINO

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: CONQUISTA
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1988 CHEVROLET R30 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • Aspiration: N
    • SubModel: CUSTOM DELUXE
    • Engine Vin: M
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1976-1978 GMC C35/C3500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1975-1978 CHEVROLET G30 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: SPORTVAN
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1969-1972 GMC K25/K2500 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1968-1969 GMC G15/G1500 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: RALLY
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1981-1982 GMC K1500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SIERRA GRANDE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1977-1978 GMC C15 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SIERRA CLASSIC
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1985 PONTIAC FIREBIRD

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: S/E
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1976-1978 GMC G35/G3500 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: RALLY CAMPER SPECIAL
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1994-1995 CHEVROLET K2500 PICKUP

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: WT
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1979 CHEVROLET BLAZER K5

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: CHEYENNE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1981 CHEVROLET C20 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: DELUXE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1973 CHEVROLET NOVA

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: CUSTOM
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1984-1986 CHEVROLET K10 SUBURBAN

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SCOTTSDALE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1967 GMC G15/G1500 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 4.6
    • SubModel: BASE
    • CUI: 283
    • EngineType: V8 ( 4.6 L / 283 )

    1968-1972 CHEVROLET CHEVELLE

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: MALIBU
    • CUI: 307
    • EngineType: V8 ( 5.0 L / 307 )

    1975 CHEVROLET NOVA

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 4.3
    • SubModel: LN
    • CUI: 262
    • EngineType: V8 ( 4.3 L / 262 )

    1977-1979 CHEVROLET G20 VAN

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: CHEVY VAN
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1972 CHEVROLET BROOKWOOD

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: J
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1987 GMC V1500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: HIGH SIERRA
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1970-1971 CHEVROLET CAPRICE

    • CC: 6556
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: BASE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1975-1977 CHEVROLET C30 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CHEYENNE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1970 CHEVROLET CHEVELLE

    • CC: 6556
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: NOMAD
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1987 CHEVROLET V20 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SCOTTSDALE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1976 GMC C1500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: HIGH SIERRA
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1972 CHEVROLET CHEVELLE

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: L
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1976 CHEVROLET NOVA

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: CONCOURS
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1977-1981 CHEVROLET K30 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CHEYENNE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1980 CHEVROLET C20 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SILVERADO
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1977-1979 CHEVROLET C10 SUBURBAN

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SILVERADO
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1978-1979 GMC CABALLERO

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1968 CHEVROLET K10 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.4
    • SubModel: BASE
    • CUI: 327
    • EngineType: V8 ( 5.4 L / 327 )

    1969-1970 CHEVROLET KINGSWOOD

    • CC: 5736
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: ESTATE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1987-1988 CHEVROLET V30 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CUSTOM DELUXE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1973 CHEVROLET CAPRICE

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: ESTATE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1977 CHEVROLET MALIBU

    • CC: 5031
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SPORT
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1975-1977 GMC C15 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: HIGH SIERRA
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1994-1995 GMC C1500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SIERRA SLT
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1970 CHEVROLET CHEVELLE

    • CC: 6556
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: CONCOURS
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1979 CHEVROLET K10 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: SILVERADO
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1969-1971 CHEVROLET CORVETTE

    • CC: 5736
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1987 GMC R1500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: BASE
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1978-1980 PONTIAC GRAND AM

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: BASE
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1981-1986 CHEVROLET K30 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: CUSTOM
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975-1979 CHEVROLET K20 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 6.6
    • SubModel: CUSTOM DELUXE
    • CUI: 400
    • EngineType: V8 ( 6.6 L / 400 )

    1995 CHEVROLET C1500 SUBURBAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: LT
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1983-1984 GMC G25/G2500 VAN

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: RALLY CUSTOM
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1978 CHEVROLET C30 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SILVERADO
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1975-1986 CHEVROLET C20 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SILVERADO
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1994 GMC K1500

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.0
    • SubModel: SIERRA SLT
    • CUI: 305
    • EngineType: V8 ( 5.0 L / 305 )

    1959-1967 CHEVROLET IMPALA

    • CC: 4638
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 4.6
    • SubModel: BASE
    • CUI: 283
    • EngineType: V8 ( 4.6 L / 283 )

    1972 CHEVROLET CAMARO

    • CC: 5737
    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: RS
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    1989-1991 CHEVROLET V3500 PICKUP

    • Fitment_Note: For Use w/Three V-Belt Accessory Drive Pulley Crankshafts~Fits Most Short/Long Water Pump Applications~Not Compatible with Serpentine Accessory Drive Systems
    • Liter: 5.7
    • SubModel: SILVERADO
    • CUI: 350
    • EngineType: V8 ( 5.7 L / 350 )

    I have a GM 350 crate motoe 290 hp 8.5to 1 comp in a 57 chev 210 2 dr 3 groove crank pulley is this the best suited blower for a street car thanks ? Alan

    Asked by: idaho auto 47
    Yes, in the roots style this is the most common supercharger we have.
    Answered by: Rusty B
    Date published: 2018-08-07

    I have a nicely built 383 with 9.9 comp with the 3 separate pulleys I want to keep it looking stock so will this for under stock hood and is this a bolt and go or do you need extra parts?

    Asked by: John81 Chevy
    This is a complete kit by itself, so not many extra items will be necessary. This will fit under the hood of many full size GM vehicles.
    Answered by: Rusty B
    Date published: 2018-04-17

    Will this work on my 1987 Chevy Silverado smallblock 350 tbi

    Asked by: 1987squarebody
    This will not fit engines that were using the TBI EFI system.
    Answered by: Rusty B
    Date published: 2018-02-02

    Hp?

    Asked by: PRO CAR GUY
    There is not an actual HP number listed on this. On the average, 50-75 depending on the rest of the build.
    Answered by: Jon Jegs Tech
    Date published: 2018-01-26

    Will this work with xe274 camshaft

    Asked by: jimmy love
    Yes, this cam will work with the supercharger.
    Answered by: Rusty B
    Date published: 2018-01-15

    Will this work on a 10:1 compression sbc 355 with eagle bottom end and 100 octane

    Asked by: Curti boi
    104 octane would be safer
    Answered by: SteveM
    Date published: 2017-12-28

    running 1986 gmc c1500 pickup 383ci. Will this Weiand 7740-1 144 Series Supercharger Kit work for me. I have A/C and want to keep it. Thanks

    Asked by: Coral
    Yes, this unit will fir your application. If you have a standard radial style air conditioning compressor this will work work also - it may require fitting adjustments, but each application is unique.
    Answered by: Rusty B
    Date published: 2018-04-05
    • y_2018, m_11, d_15, h_21CST
    • bvseo_bulk, prod_bvqa, vn_bulk_2.0.9
    • cp_1, bvpage1
    • co_hasquestionsanswers, tq_7
    • loc_en_US, sid_10001_10001_234294, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs
    Some parts are not legal for use in California or other states with similar laws / regulations

    Motor Vehicles

    WARNING: Motor vehicles contain fuel, oils and fluids, battery posts, terminals and related accessories which contain lead and lead compounds and other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. These chemicals are found in vehicles, vehicle parts and accessories, both new and as replacements. When being serviced, these vehicles generate used oil, waste fluids, grease, fumes and particulates, all known to the State of California to cause cancer, birth defects, and reproductive harm.

    Tools:

    WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically treated lumber. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

    Electrical Cords

    WARNING: The wires of these products contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
