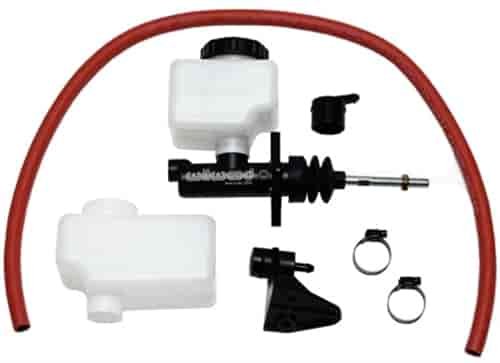

Vehicle Info NeededCompact Master Cylinder Kit 15/16 in. Bore
Ships on Sep 07, 2026
Lowest Price Guarantee- Compact Master Cylinder Kit
- 15/16 in. Bore
- Flange Mount
- 3/8 in. -24 UNF Outlet
Designed For Limited Space Applications
Combination master cylinder kits offer over 2 in. addition clearance compared to full-size combination master cylinders. The short 3.370 in. compact body also provides an additional 2.160 in. of additional clearance between the mounting flange and the fluid outlet. A full 1.120 in. of piston stroke meets or exceeds the stroke capacity of most full-size master cylinders. Black E-Coated aluminum bodies resist corrosion and maintain a durable long lasting finish. Master Cylinder Kits include a master cylinder, 7-ounce & 10-ounce reservoirs, hoses, clamps and all necessary hardware.
Show More
Master Cylinders feature 1/8 in. NPT outlets provide a positive seal and reduce the potential for stripped threads. Fluid outlet ports located at the top radius of the cylinder bore reduce chances for trapped air and eliminate the need for body mounted bleed screw. Four mounting options with choices for direct or remote mounting of 7-ounce or 10-ounce reservoirs that include an impact resistant threaded cap with an internal baffle and seals.
