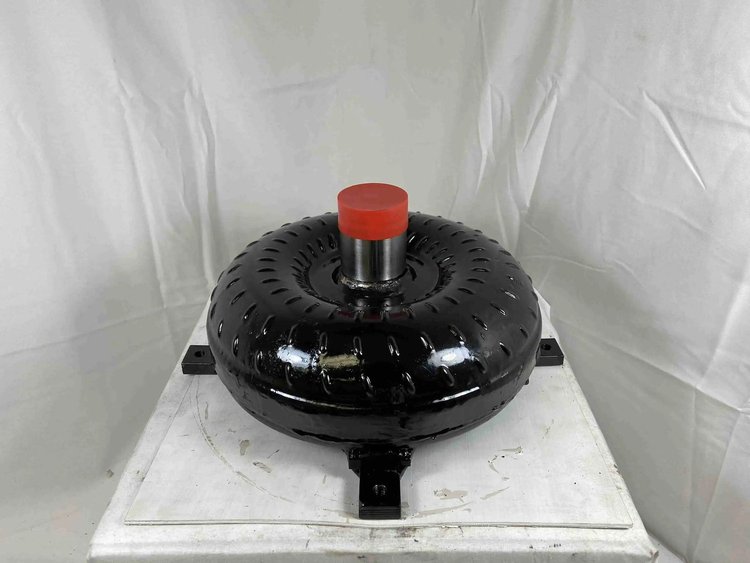

ACC Performance 21296 Features:

• Ford FMX FE Motors Street Bandit Series
• Big Pilot
• Super Lightweight Converter
• Stall Range: 3,600 – 4,200 RPM
• Great Driving Characteristics
• 9.6 in. Core
• Bolt Circle: 11 7/16 in.
• 29 Spline Turbine Hub Precision CNC Machined
• Count the Tops of Each Tooth on the Smaller Shaft
• Built to 5 7/8 in. Tall
• Use the 164 Tooth Flywheel
• Hardened Chrome Moley Impeller Hub
• Torrington Style Incased Bearings
• Modified Extreme Duty Stator
• 1.848 in. Crank Pilot Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• NO – Anti-Balloon Plates
• Fins are 4 corner Tac Welded or Furnace-Brazed
• Leak & Pressure Tested
• Digitally Balanced
• Quality Inspections at Every Step
• For Choppy Cams and Lightweight vehicles
• Note: Use Type F transmission Fluid for Best Results
• Note: Always Use an Additional Transmission Cooler
• Note: Use Blue Loctite
• Note: ALL Advertised Stalls are based on a Specific Vehicle’s Setup. All stall Ranges Will Vary depending on your vehicle’s setup. Please contact us for more information (888) 267-7464
• We recommend upgrading to an “Out Law Racing Series” Torque Converter if you have any Power Adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brake
