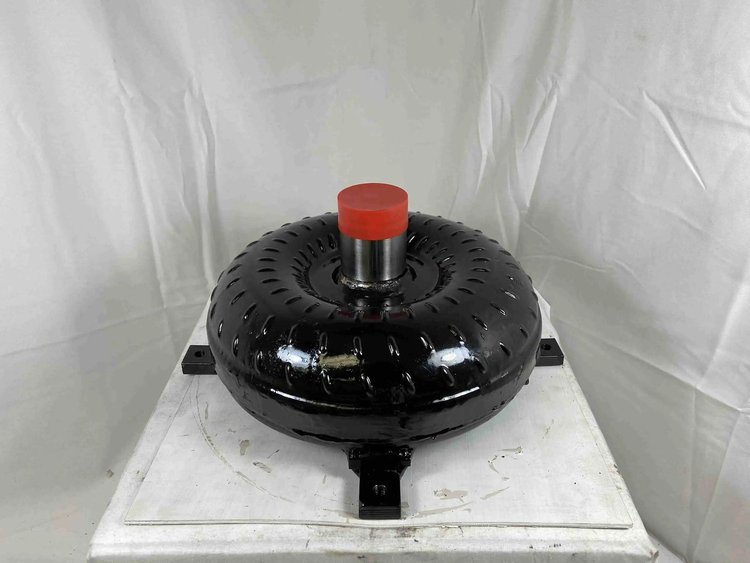

ACC Performance 21732 Features:

• Ford FMX Windsor Motors Out Law Racing Series
• Super Lightweight Converter
• Stall Range: 2,400 – 2,800 RPM
• Great Driving Characteristics
• 9.6 in. Core
• Bolt Circle: 11 7/16 in.
• 29 Spline Turbine Hub Precision CNC Machined
• Count the Tops of Each Tooth on the Smaller Shaft
• Built to 5 7/8 in. Tall
• Use the 164 Tooth Flywheel
• Hardened Chrome Moley Impeller Hub
• Torrington Style Incased Bearings
• Modified Extreme Duty Stator
• 1.375 in. Crank Pilot Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• Yes – Anti-Balloon Plates Precision CNC Machined
• Whole Back Cover Quenched and Hardened
• ALL of the Pump & Turbine Fins are Welded or Furnace-Brazed
• Quality Inspections through out Every Step
• For Choppy Cams and Lightweight vehicles
• Leak & Pressure Tested
• Digitally Balanced
• Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
• Note: Use Type F transmission Fluid for Best Results
• Note: Always Use an Additional Transmission Cooler
• Note: Use Blue Loctite
• Note: ALL Advertised Stalls are based on a Specific Vehicle’s Setup. All stall Ranges Will Vary depending on your vehicle’s setup.
