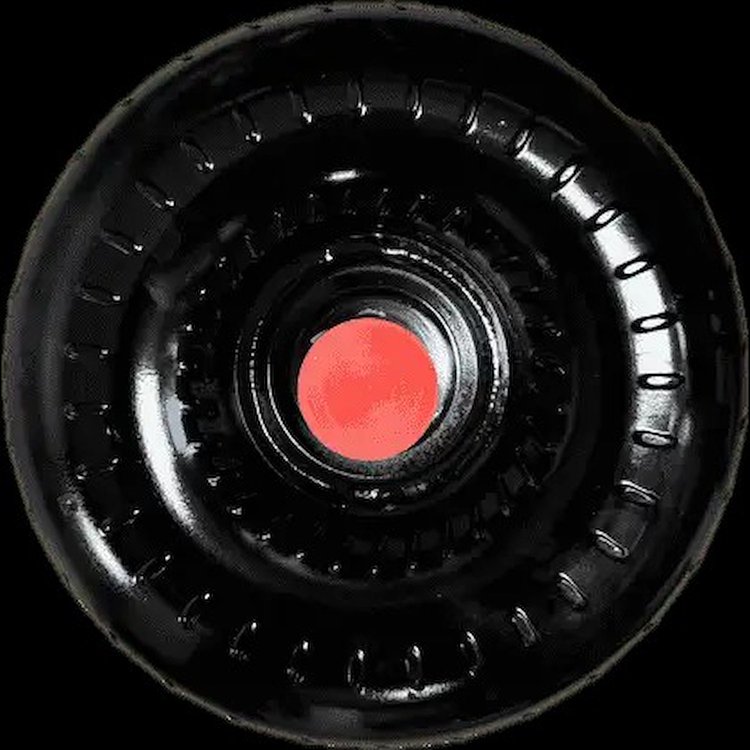

ACC Performance 45706 Features:

• GM LS 6L80E/6L90E Out Law Series
• For LS type Engines
• Stall Range: 4,200 – 5,000 RPM
• 9.6 in. Core
• Billet Front Cover
• Bolt Circle: Factory 11.125 in. + 11.5 + 10.75 in.
• 36 Spline Input Shaft
• Over Sized Extreme Duty Lock Up
• Torrington Style Incased Bearings
• Hardened Chrome Molly Impeller Hub
• Extreme Temp Heavy Duty O-ring
• 1.703 in. Crank Pilot
• Bolt Size: 10mm X 1.5 Pitch (Class 10.9 or Stronger)
• Yes – Anti-Balloon Plates
• ALL Fins are Tac Welded or FURNACE Brazed
• Quality Inspections through out Every Step
• For Choppy Cams and light weight vehicles
• Leak & Pressure Tested
• Digitally Balanced
• Great with Nitrous, Turbo, Super Chargers, & Trans-Breaks
• Note: Use Blue Loctite
• Note: Needs Transmission Cooler to Exceed 30,000 GVW
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup. Please contact us for more information. Contact us for more information – 888-267-7464 –
