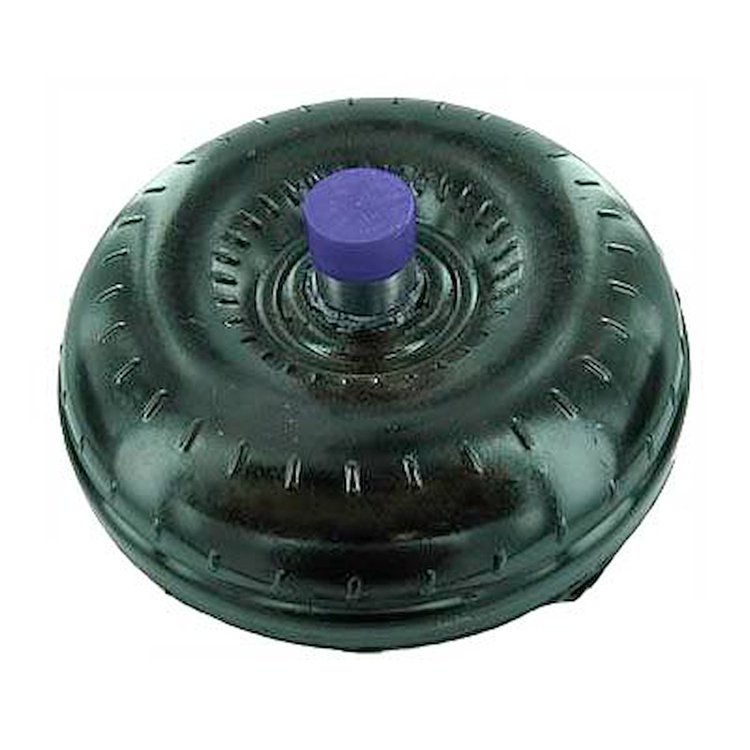

1/4 in. Mid Plate Torque Converter for GM TH-400 Transmission, Stall Range: 3,200-3,500 RPM, Diameter: 9.600 in., Lock Up: No
InfoVehicle Info Needed
ACC PERFORMANCEPART NUMBER: 082-46743

1/4 in. Mid Plate Torque Converter for GM TH-400 Transmission, Stall Range: 3,200-3,500 RPM, Diameter: 9.600 in., Lock Up: No

$85699
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Quick Shift Automatic Transmission Fluid [1-gallon]

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071
$4274$51.99
You Save$9.25
Quick Shift Automatic Transmission Fluid [1-quart]

JEGS

Quick Shift Automatic Transmission Fluid [1-quart]

Part Number : 555-28070
$934$12.99
You Save$3.65
Funnel [18 in. Overall Length]

JEGS

Funnel [18 in. Overall Length]

Part Number : 555-W4034
$499$5.99
You Save$1.00
2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

JEGS

2-Ton Low-Profile Aluminum Floor Jack [4,000 lbs. Capacity]

Part Number : 555-80006
$24499$269.99
You Save$25.00

Outlaw "Level 3"
1/4 in. Mid Plate Torque Converter
  • Fits GM TH-400 Transmission
  • Stall Range: 3,200-3,500 RPM
  • Diameter: 9.600 in.
  • Spline: 30
  • Bolt Circle: 11.500 in.
  • Crank Pilot: 1.703 in.
  • Lock Up: No
  • Anti-Ballooning Plates: Yes
  • Balanced: Yes

    ACC Performance 46743 1/4 in. Mid Plate Torque Converter Features:

    • Bolt Size: 3/8 in. x 16 TPI
    • Torrington Bearings: Yes
    • Welded Fins: All Fins
    • Bell Housing Size: All
    • Height: 6.1875 in.
    • Weight: 23 lbs.

    ACC Performance 46743 1/4 in. Mid Plate Torque Converter Notes:

    • For use with Grade-8 hardware only - Recommended locking nut and bolt style

      • Applications Of 1000+ HP

      The Outlaw Series Converters will handle as much as 1,000+ horsepower. The Out Law Torque Converter is the toughest ACC Performance Torque Converter built. All of the Out Law series converters come with a custom Anti-ballooning plate that is designed to hold back any potential ballooning of the converter. These special designed plates keep the extra weight off of the rotating mass. The Out Law series converters are designed to handle the extreme shock and abuse of excessive horsepower, nitrous oxide and/or transbrake.

    Part TypeAutomatic Transmission Torque Converter
    Product LineACC Performance Out Law GM Torque Converters
    BrandACC PERFORMANCE
    Package Height8.0
    Package Width13.0
    Package Length13.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number46743
    Package Qty1
    Package TypeEA
