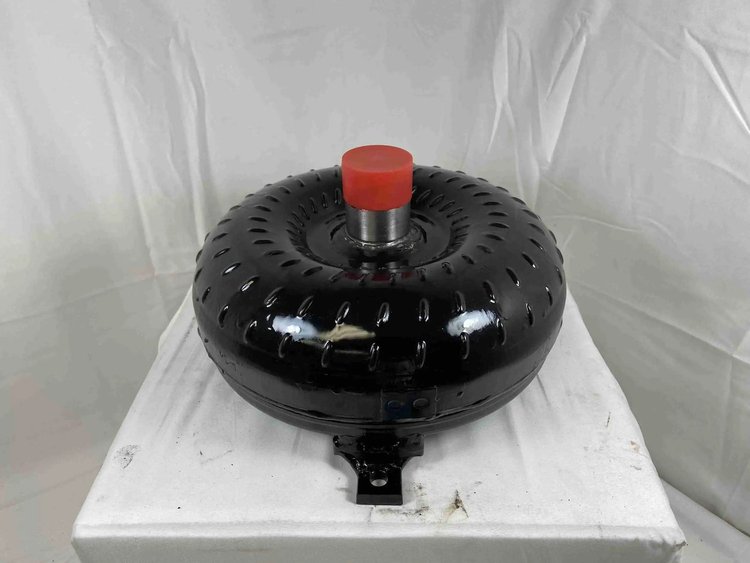

ACC Performance 47313 Features:

• GM TH350/TH400/PowerGlide with the Turbo Shaft – 30 Spline Only Street Bandit Series
• This Converter is a TH350 TH400 Direct Fit to an LS Engine
• Super Lightweight Converter
• Will Fit The LS Factory 11.063 Flex-Plate
• Stall Range: 2,800 – 3,200 RPM
• 9.6 in. Core
• Bolt Circle: Factory LS 11.063 in.
• 30 Spline Turbine Hub Precision CNC Machined
• Hardened Chrome Moley Impeller Hub
• Torrington Style Incased Bearings
• Modified Extreme Duty Stator
• 1.703 in. Crank Pilot Extended for the LS Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• NO – Anti-Balloon Plates
• Fins are 4 corner Tac Welded or Furnace-Brazed
• Quality Inspections through out Every Step
• For Choppy Cams and light weight vehicles
• Leak & Pressure Tested
• Digitally Balanced
• Note: Use Type F transmission Fluid for Best Results
• Note: Use Blue Loctite
• Note: ALL Advertised Stalls are based on a Specific Vehicle’s Setup. All stall Ranges Will Vary depending on your vehicle’s setup.
• Note: This part Will NOT Interchange with the TH350C
• We recommend upgrading to an “Out Law Racing Series” Torque Converter if you have any Power Adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brake
