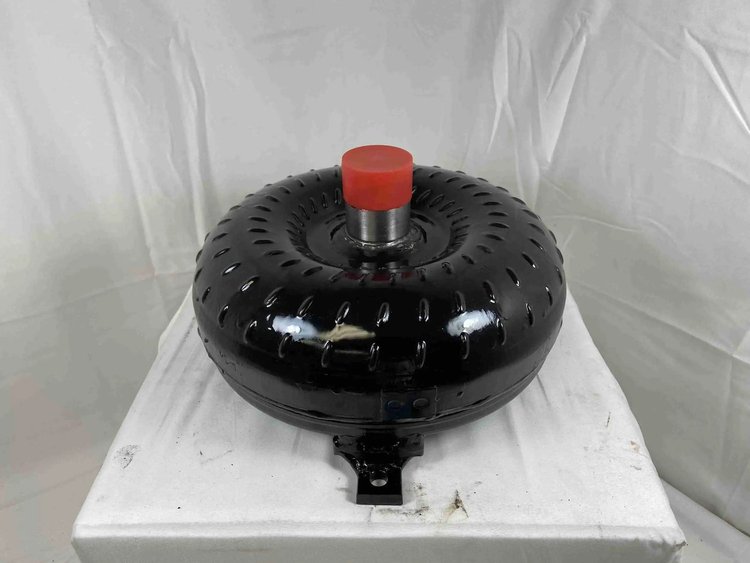

ACC Performance 48406 Features:

• GM 700R4/2004R Street Bandit Series
• 298mm for LT type Engines
• For the 3 step Input Shaft
• Super Lightweight Lock Up Converter
• Stall Range: 4,200 – 5,000 RPM
• 9.6 in. Core
• Bolt Circle: 10.75 in.
• 27 Spline Input Shaft (Count The Smaller splines, Top of each tooth)
• Hardened Chrome Moly Hub
• Torrington Style Incased Bearings
• Modified Heavy Duty Stator
• Extreme Duty Lock Up
• We Deleted the Need for the End of the Input Shaft O-Ring
• Lock Up is sealed on the back side of our Turbine Hub
• 1.703 in. Crank Pilot Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• No – Anti-Balloon Plates

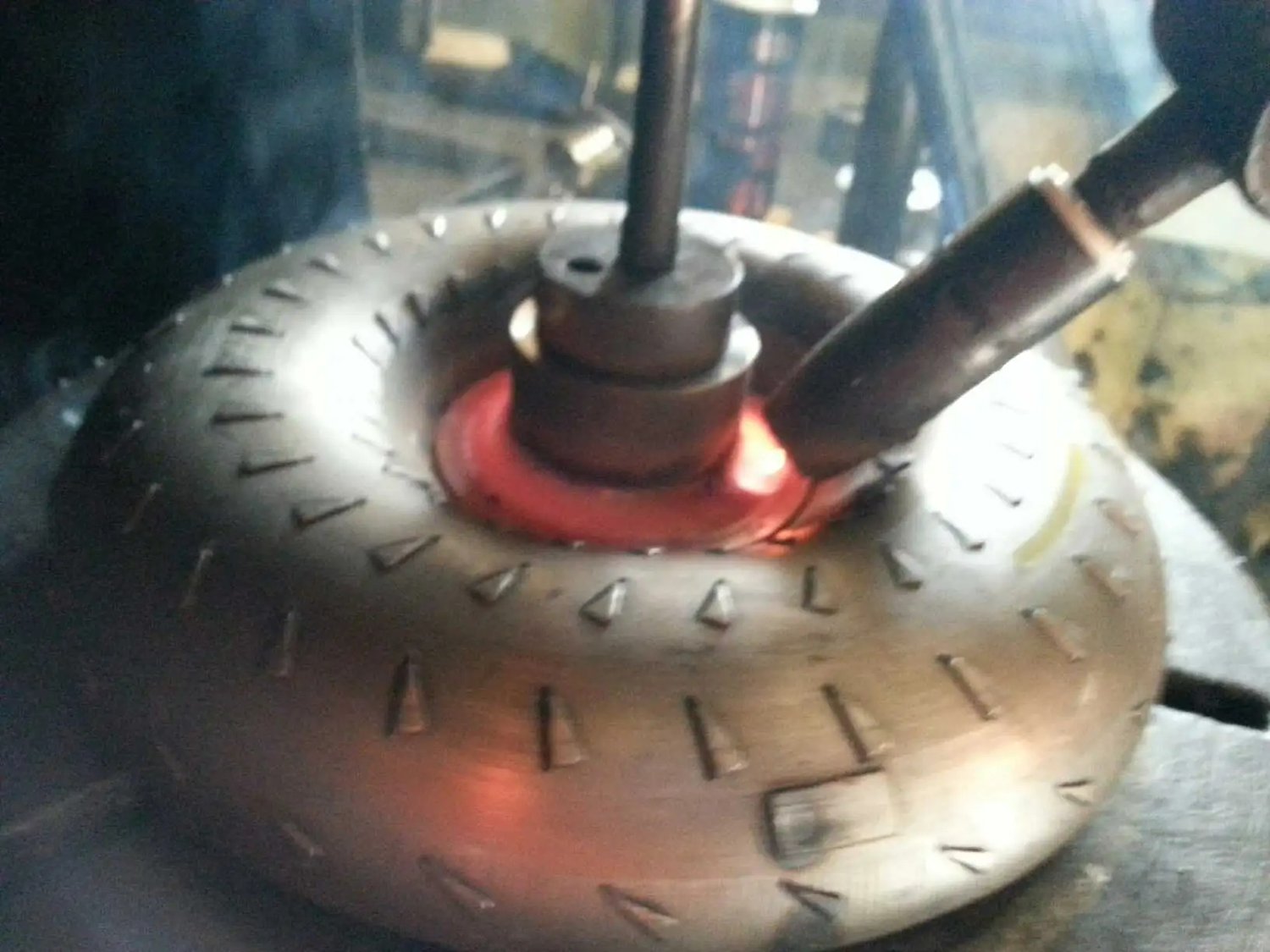

• 4 Corner Tac Welded Fins or Furnish Brazed
• Great for Choppy Cams and light weight vehicles
• Note: Use Old School Type F Transmission Fluid For Best Results
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup.
• We recommend upgrading to an “Out Law Series” torque converter if you have any power adders like Nitrous (NOS), Turbocharger(s), Supercharger, or a Trans Brakes
