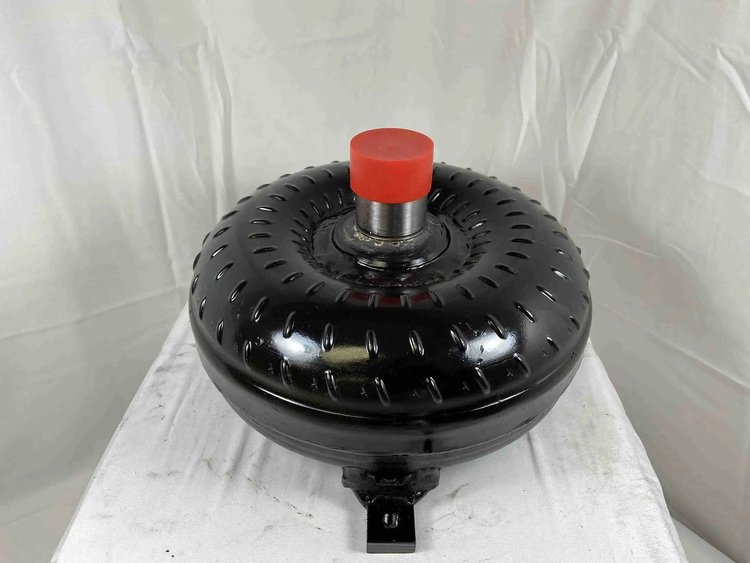

48634 GM 700R4/4L60E 298mm Out Law 3,200-3,500 RPM LS Direct Fit Lock Up Racing Torque Converter

Vehicle Info Needed

48634 GM 700R4/4L60E 298mm Out Law 3,200-3,500 RPM LS Direct Fit Lock Up Racing Torque Converter

Name: 48634 GM 700R4/4L60E 298mm Out Law 3,200-3,500 RPM LS Direct Fit Lock Up Racing Torque Converter
Brand: ACC PERFORMANCE
SKU: 082-48634
Price: 896.99 USD
Availability: InStock

^$896⁹⁹

Ships on 09/15/2026

Lowest Price Guarantee

Outlaw "Level 3"

Out Law Series Torque Converter

GM 700R4/4L60E

298 mm

Stall Range: 3,200–3,500 RPM

ACC Performance 48634 Features:

GM 700R4/4L60E Out Law Racing Series
298mm for LS Type Engines
This Converter is a Direct Fit to an LS Engine
Super Lightweight Lock Up Converter
Stall Range: 3,200 – 3,500 RPM
9.6 in. Core
Factory LS Bolt Circle: 11.063 in.
30 Spline Input Shaft
Hardened Chrome Moly Hub
Torrington Style Incased Bearings
Modified Heavy Duty Stator
Extreme Duty Lock Up
We Deleted the Need for the End of the Input Shaft O-Ring
Lock Up is sealed on the back side of our Turbine Hub
1.703 in. Crank Pilot Extended for the LS Precision CNC Machined
Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
YES – Anti-Balloon Plates Precision CNC Machined
Whole Back Cover Quenched and Hardened
ALL of the fins are Welded or Furnish Brazed
For Choppy Cams and light weight vehicles
Quality Inspections at Every Step
Leak & Pressure Tested
Digitally Balanced
Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
Note: Use Old School Type F Transmission Fluid For Best Results
Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup.

Applications Of 1000+ HP

The Outlaw Series Converters will handle as much as 1,000+ horsepower. The Out Law Torque Converter is the toughest ACC Performance Torque Converter built. All of the Out Law series converters come with a custom Anti-ballooning plate that is designed to hold back any potential ballooning of the converter. These special designed plates keep the extra weight off of the rotating mass. The Out Law series converters are designed to handle the extreme shock and abuse of excessive horsepower, nitrous oxide and/or transbrake.

Part TypeAutomatic Transmission Torque Converter

Product LineACC Performance Out Law GM Torque Converters

BrandACC PERFORMANCE

Package Height8.0

Package Width13.0

Package Length13.0

Weight26.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number48634

Package Qty1

Package TypeEA
