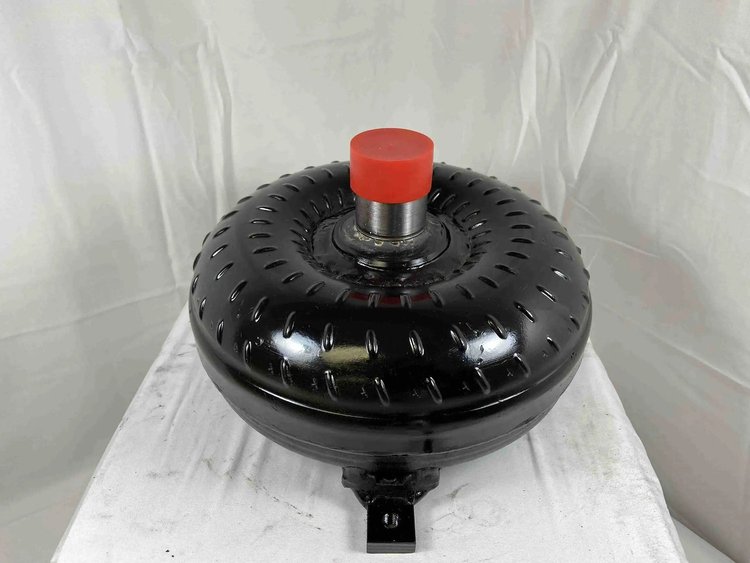

ACC Performance 48646 Features:

• GM 700R4/4L60E Out Law Racing Series
• 298mm for LS Type Engines
• This Converter is a Direct Fit to an LS Engine
• Super Lightweight Lock Up Converter
• Stall Range: 4,200 – 5,000 RPM
• 9.6 in. Core
• Factory LS Bolt Circle: 11.063 in.
• 30 Spline Input Shaft
• Hardened Chrome Moly Hub
• Torrington Style Incased Bearings
• Modified Heavy Duty Stator
• Extreme Duty Lock Up
• We Deleted the Need for the End of the Input Shaft O-Ring
• Lock Up is sealed on the back side of our Turbine Hub
• 1.703 in. Crank Pilot Extended for the LS Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• YES – Anti-Balloon Plates Precision CNC Machined
• Whole Back Cover Quenched and Hardened
• ALL of the fins are Welded or Furnish Brazed
• For Choppy Cams and light weight vehicles
• Quality Inspections at Every Step
• Leak & Pressure Tested
• Digitally Balanced
• Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
• Note: Use Old School Type F Transmission Fluid For Best Results
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup.
