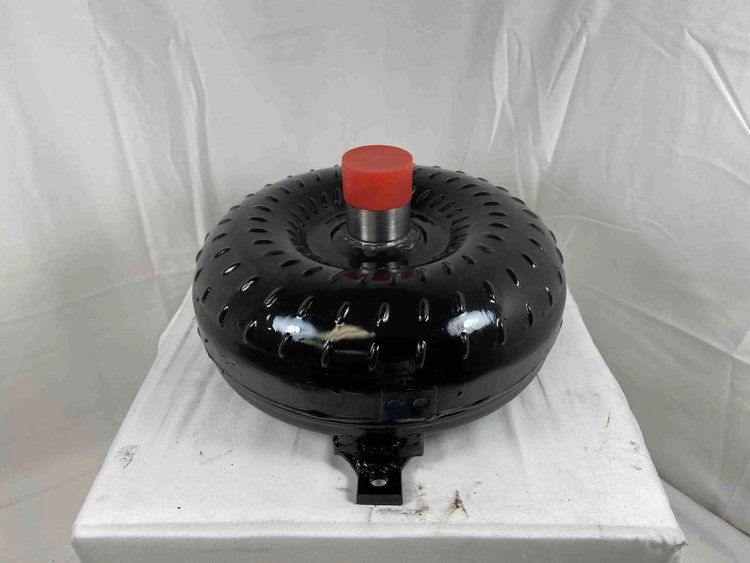

ACC Performance 48746 Features:

• GM 700R4 Out Law Racing Series
• 298mm (LT type Engines)
• For the 3 step input shaft
• Super Lightweight Converter
• Stall Range: 4,200 – 5,000 RPM
• 9.6 in. Core
• Bolt Circle: 10.75 in.
• 30 Spline Input Shaft
• Note: Count The Smaller Set of Splines, Tops of Each Tooth
• Torrington Style Incased Bearings
• Modified Extreme Duty Stator
• Extreme Duty Lock Up
• We Deleted the Need for the End of the Input shaft O-Ring
• Lock Up is sealed on the back side of our Turbine
• 1.703 in. Crank Pilot Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• Yes – Anti-Balloon Plates Precision CNC Machined
• Whole Back Cover Quenched and Hardened
• ALL of the Fins are Welded or Furnish Brazed
• Quality Inspections through out Every Step
• Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
• Note: Use Type F Transmission Fluid For Best Results
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup.
