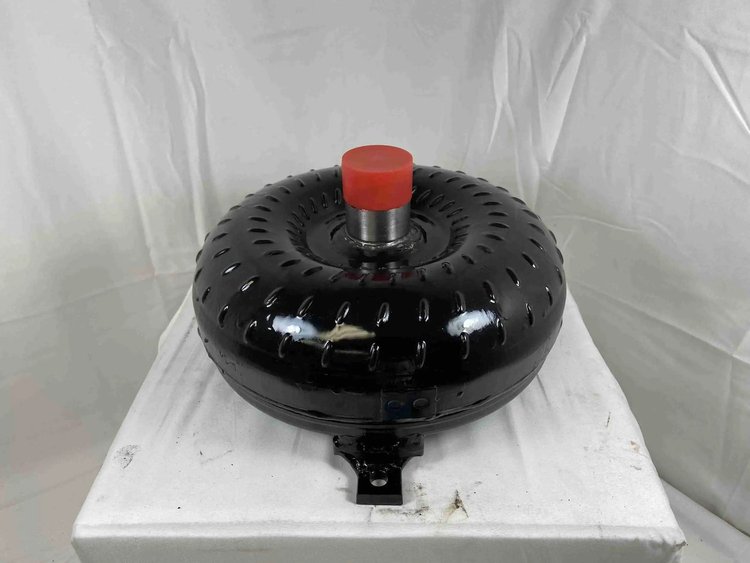

48756 GM 700R4/2004R 298mm 27 Spline Out Law 4,200-5,000 RPM Lock Up Racing Torque Converter

Vehicle Info Needed

48756 GM 700R4/2004R 298mm 27 Spline Out Law 4,200-5,000 RPM Lock Up Racing Torque Converter

Name: 48756 GM 700R4/2004R 298mm 27 Spline Out Law 4,200-5,000 RPM Lock Up Racing Torque Converter
Brand: ACC PERFORMANCE
SKU: 082-48756
Price: 892.99 USD
Availability: InStock

^$892⁹⁹

Ships on 09/16/2026

Lowest Price Guarantee

Outlaw "Level 5"

Out Law Series Torque Converter

GM 700R4/2004R

298 mm

Stall Range: 4,200–5,000 RPM

27 Spline

ACC Performance 48756 Features:

GM 700R4/2004R Out Law Racing Series
298mm (LT type Engines)
For the 3 step input shaft
Super Lightweight Converter
Stall Range: 4,200 – 5,000 RPM
9.6 in. Core
Bolt Circle: 10.75 in.
27 Spline Input Shaft
Note: Count The Smaller Set of Splines, Tops of Each Tooth
Torrington Style Incased Bearings
Modified Extreme Duty Stator
Extreme Duty Lock Up
We Deleted the Need for the End of the Input shaft O-Ring
Lock Up is sealed on the back side of our Turbine
1.703 in. Crank Pilot Precision CNC Machined
Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
Yes – Anti-Balloon Plates Precision CNC Machined

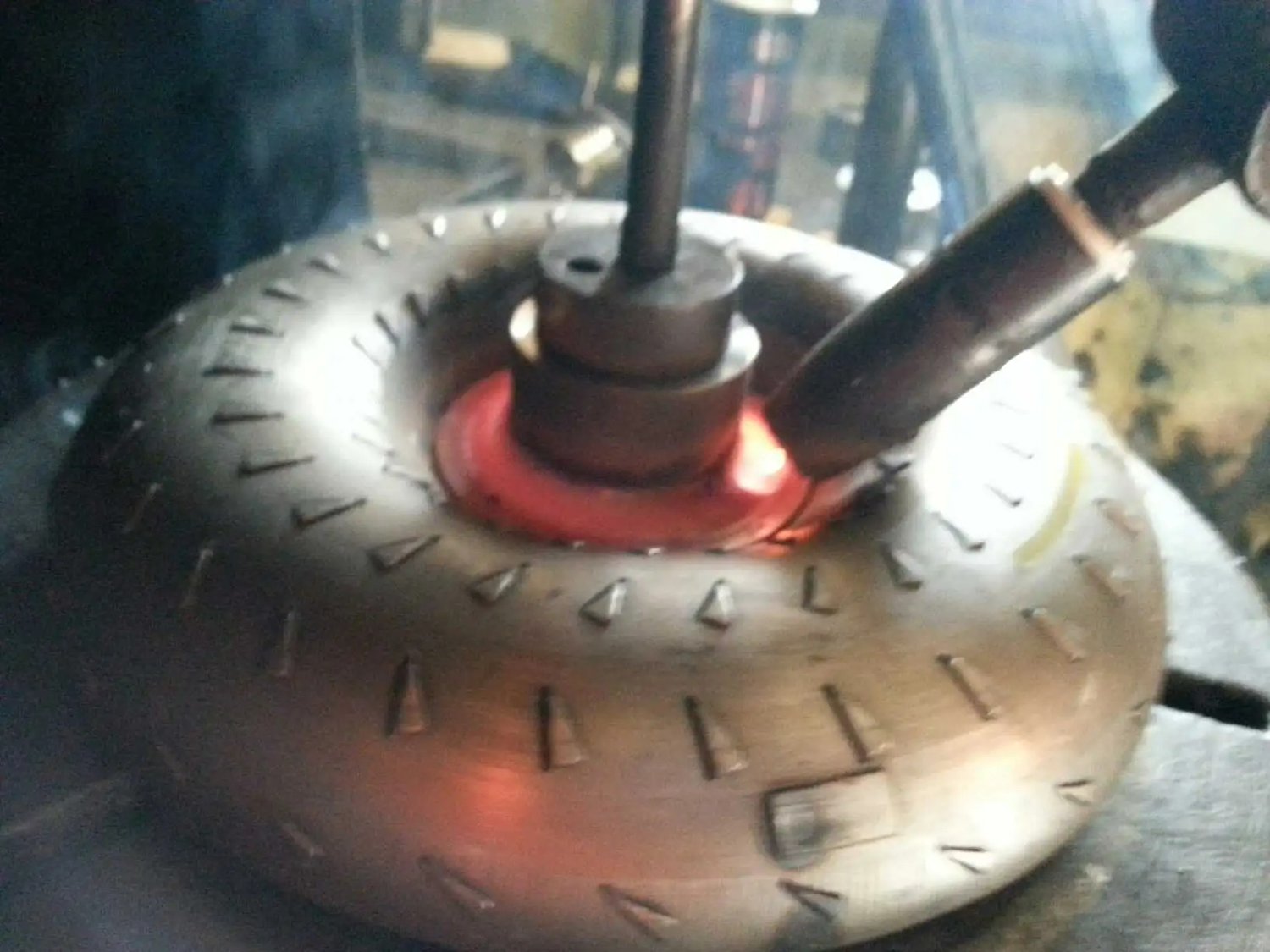

ALL of the Pump & Turbine Fins are Welded or Furnace-Brazed
Quality Inspections through out Every Step
For Choppy Cams and Lightweight vehicles
Leak & Pressure Tested
Digitally Balanced
Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
Note: Use Type F Transmission Fluid For Best Results
Note: Always Use an Additional Transmission Cooler
Note: Use Blue Loctite
Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup.

Applications Of 1000+ HP

The Outlaw Series Converters will handle as much as 1,000+ horsepower. The Out Law Torque Converter is the toughest ACC Performance Torque Converter built. All of the Out Law series converters come with a custom Anti-ballooning plate that is designed to hold back any potential ballooning of the converter. These special designed plates keep the extra weight off of the rotating mass. The Out Law series converters are designed to handle the extreme shock and abuse of excessive horsepower, nitrous oxide and/or transbrake.

Part TypeAutomatic Transmission Torque Converter

Product LineACC Performance Out Law GM Torque Converters

BrandACC PERFORMANCE

Package Height8.0

Package Width13.0

Package Length13.0

Weight26.0 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number48756

Package Qty1

Package TypeEA
