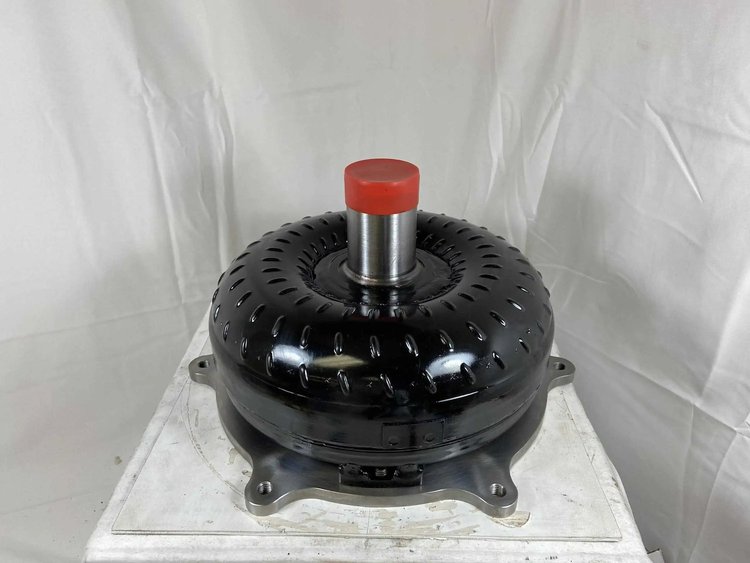

ACC Performance 49706 Features:

• GM 4L80E/4L85E Out Law Series
• For LS Engines
• For the 2 step input shaft
• SUPER Light Converter
• Stall Range: 4,200 – 5,000 RPM
• 9.6 in. Core
• Bolt Circle: Factory 11.675 in.
• 35 Spline Input Shaft
• Hardened Chrome Molly Impeller Hub
• Torrington Style Bearings
• Extreme Temp Heavy Duty O-ring
• Extreme Duty Single Disk Lock Up
• 1.703 in. Crank Pilot
• Bolt Size: 10mm X 1.5 Pitch (Class 10.9 or Stronger)
• Yes – Anti-Balloon Plates

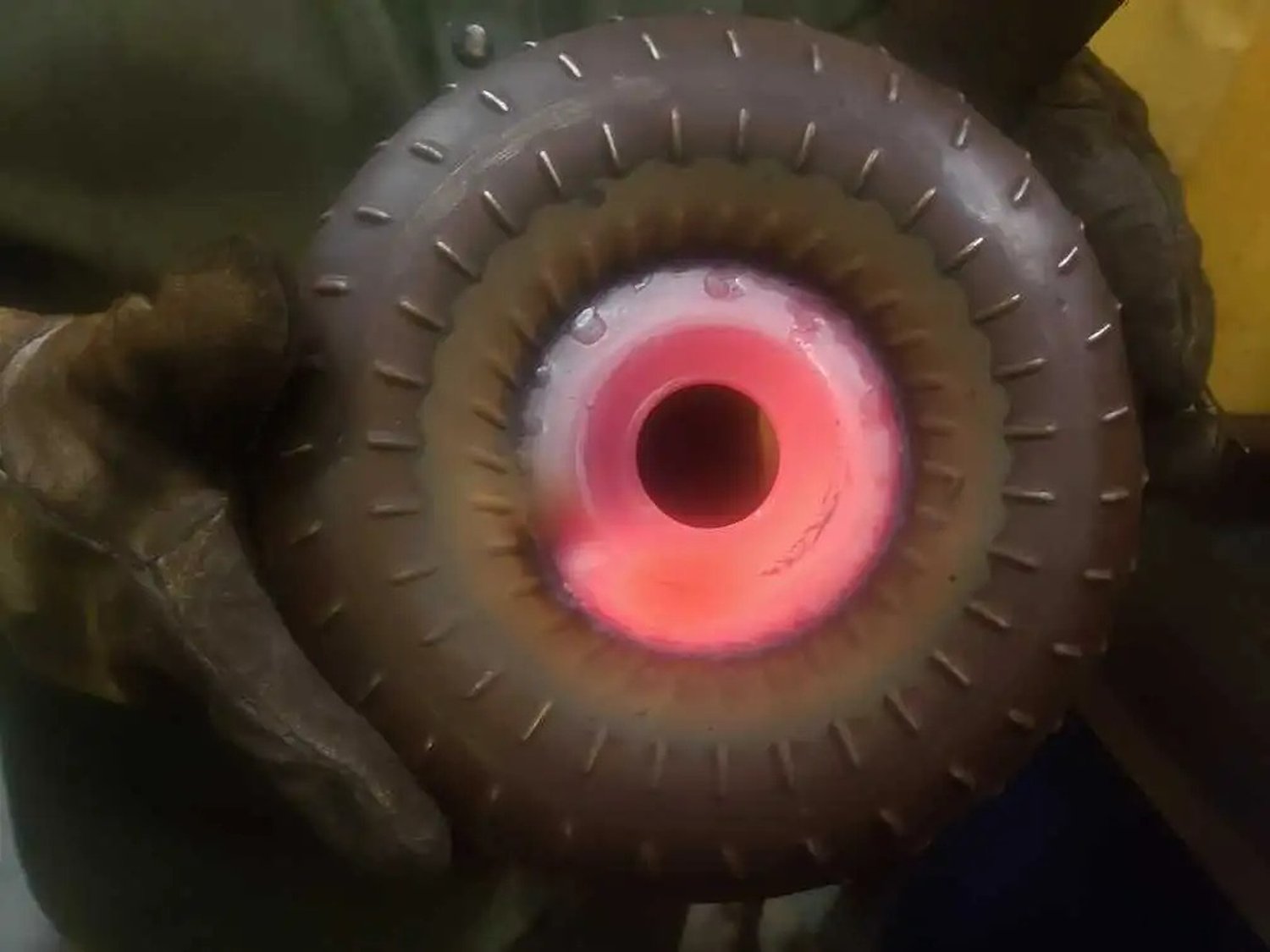

• Whole Back Cover Quenched and Hardened
• ALL of the Pump & Turbine Fins are Welded or Furnace-Brazed
• Quality Inspections through out Every Step
• For Choppy Cams and Lightweight vehicles
• Leak & Pressure Tested
• Digitally Balanced
• Great with Nitrous, Turbo, Super Chargers, & Trans-Breaks
• Note: For Best Results use TYPE F transmission Fluid
• MADE IN USA
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup. Please contact us for more information. Contact us for more information – 888-267-7464
