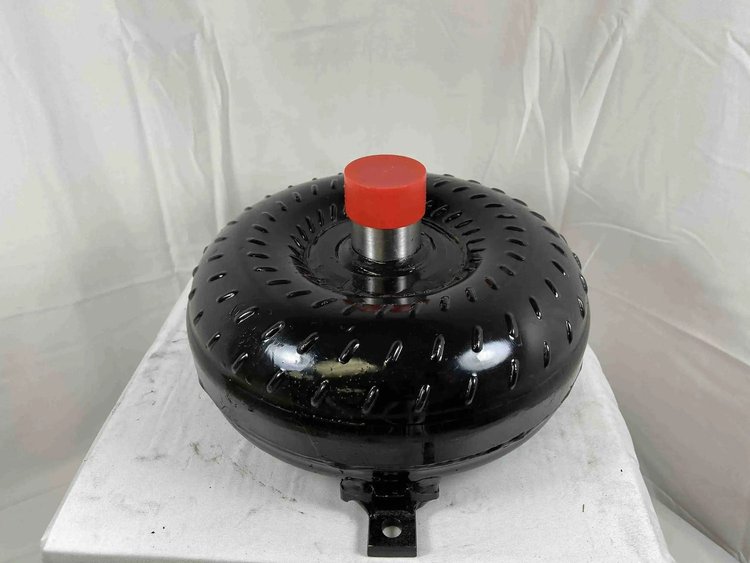

ACC Performance 49746 Features:

• GM 4L60E Out Law Racing Series
• 298mm for LT type Engines or earlier
• For the 3 Step Input Shaft
• Up to & Through 1997
• Super Lightweight Lock Up Racing Converter
• Stall Range : 4,200 – 5,000 RPM
• For Choppy Cams and Lightweight vehicles
• Great Driving Characteristics
• 9.6 in. Core
• Bolt Circle: 10.75 in.
• 30 Spline Input Shaft
• Hardened Chrome Moly Hubs
• Torrington Style Incased Bearings
• Modified Heavy-Duty Stator
• Extreme Duty Lock Up
• Deleted the Need for the End of the Input Shaft O-Ring
• Lock Up is Sealed on the back side of our Turbine Hub
• 1.703 in. Crank Pilot Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• Yes – Anti-Balloon Plates Precision CNC Machined
• Whole Back Cover Quenched and Hardened
• Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
• Quality Inspections at Every Step
• Leak & Pressure Tested
• Digitally Balanced

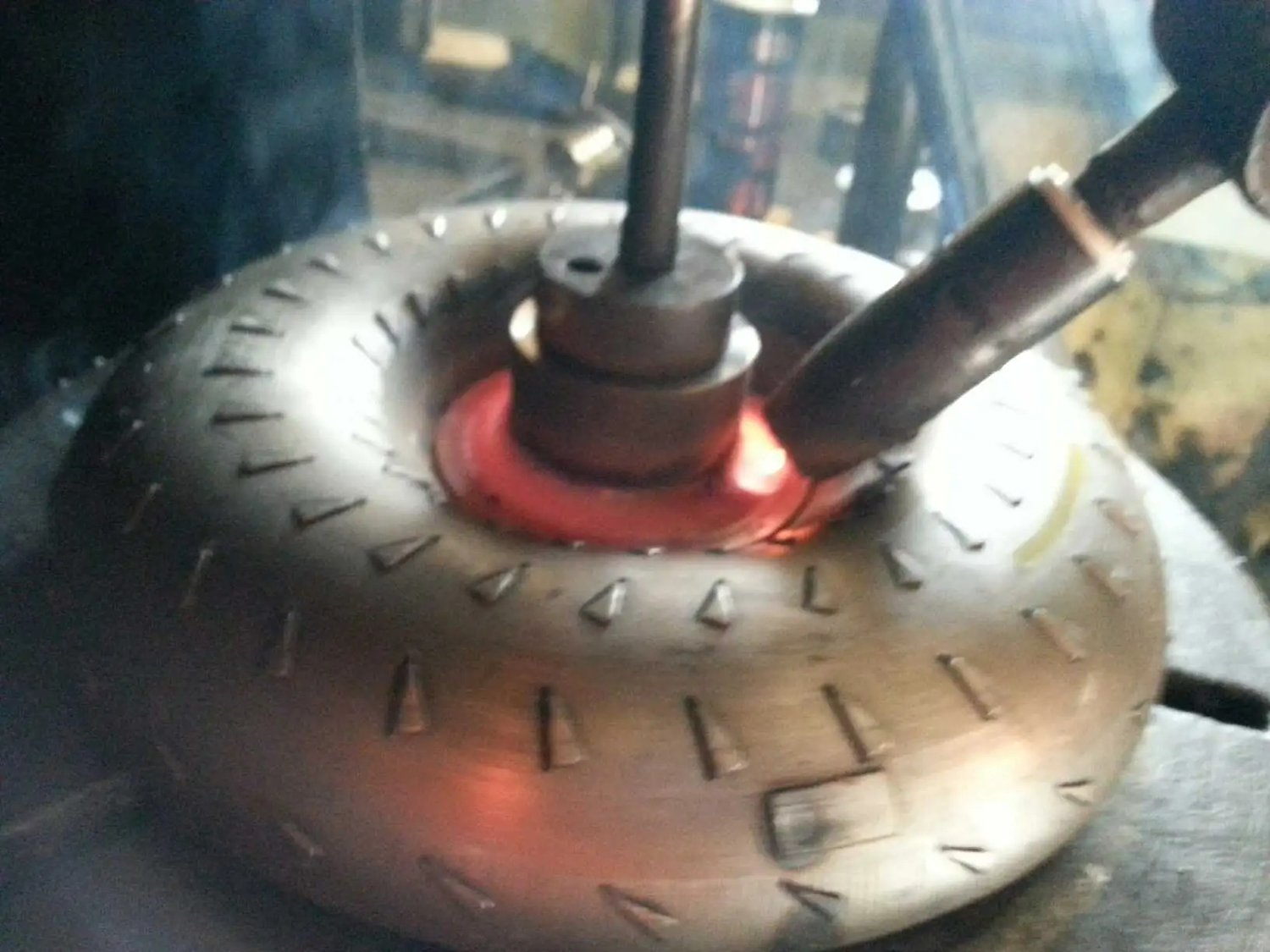

• 4 Corner tac Welded Fins or Furnace Brazed
• Note: Use Type F Transmission Fluid For Best Results
• Note: Always Use an Additional Transmission Cooler
• Note: Use Blue Loctite
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup. Please contact us for more information 888-267-7464
