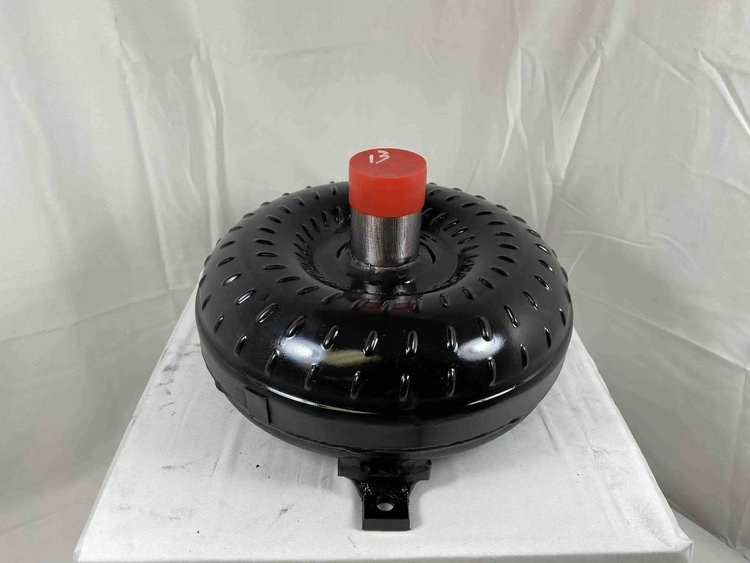

ACC Performance 49756 Features:

• GM LS 4L60E/4L65E/4L70E Out Law Racing Series
• 300mm (LS Engines)

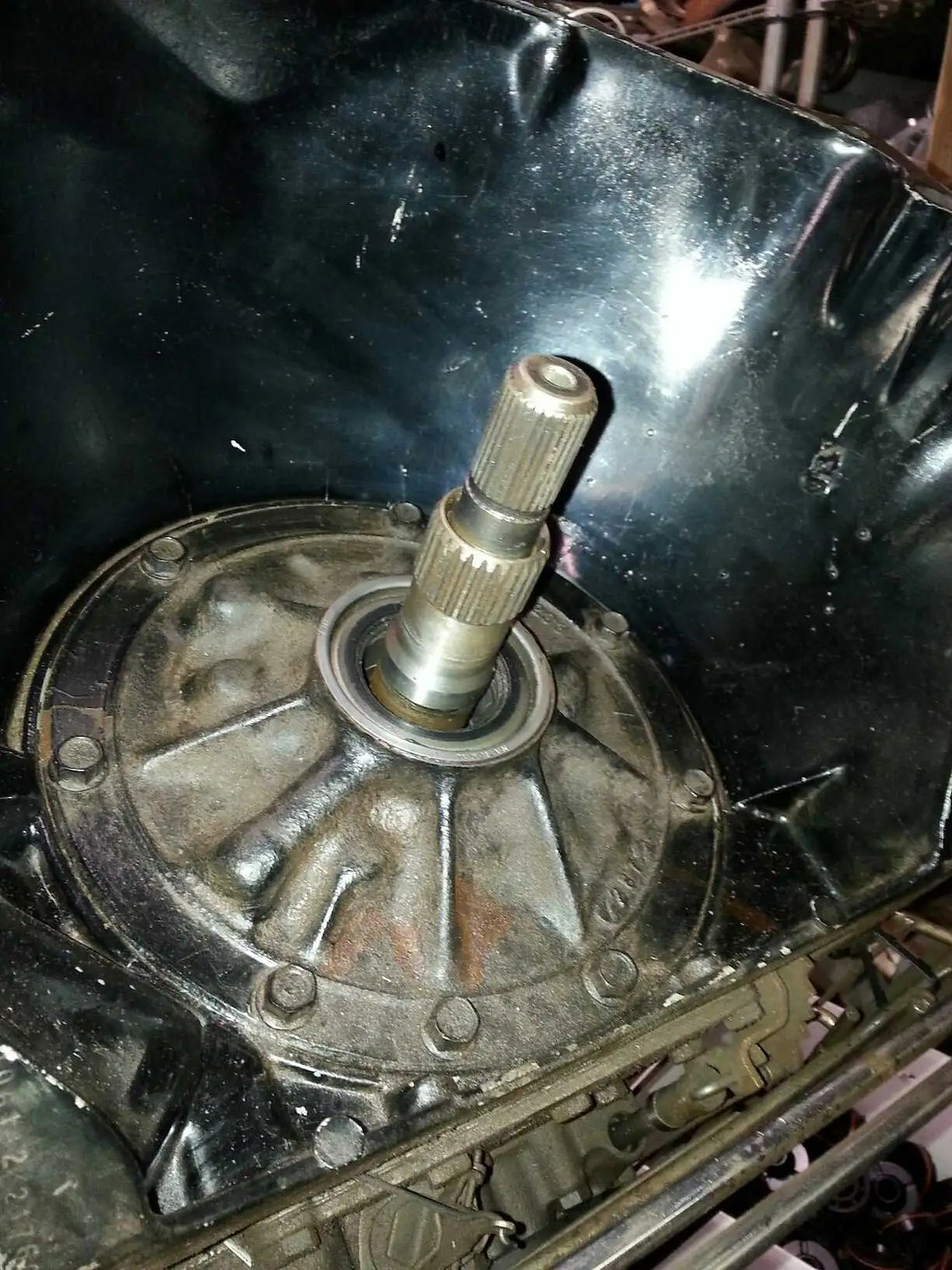

• For the 2 step input shaft
• Super Lightweight Converter
• For Choppy Cams and Lightweight vehicles
• Great Driving Characteristics
• Stall Range: 4,200 – 5,000 RPM
• 9.6 in. Core
• Bolt Circle: 11.063 in.
• 30 Spline Input Shaft
• Hardened Chrome Molly Impeller Hub
• Torrington Style Bearings
• Extreme Temp Heavy Duty O-ring
• Extreme Duty Lock Up
• 1.703 in. Crank Pilot
• Bolt Size: 3/8 X 16 TPI (Grade 8 Only)
• Yes – Anti-Balloon Plates Precision CNC Machined
• Whole Back Cover Quenched and Hardened
• Great with Nitrous, Turbo, Super Charger, & Trans-Breaks
• ALL of the Pump & Turbine fins are welded or furnace Brazed
• Quality Inspections at Every Step
• Leak & Pressure Tested
• Digitally Balanced
• Note: Use Type F Transmission Fluid For Best Results
• Note: Always Use an Additional Transmission Cooler
• Note: Use Blue Loctite
• Note: ALL Advertised stalls are based on a specific vehicle’s setup. All stall ranges will vary depending on your vehicle’s setup.
