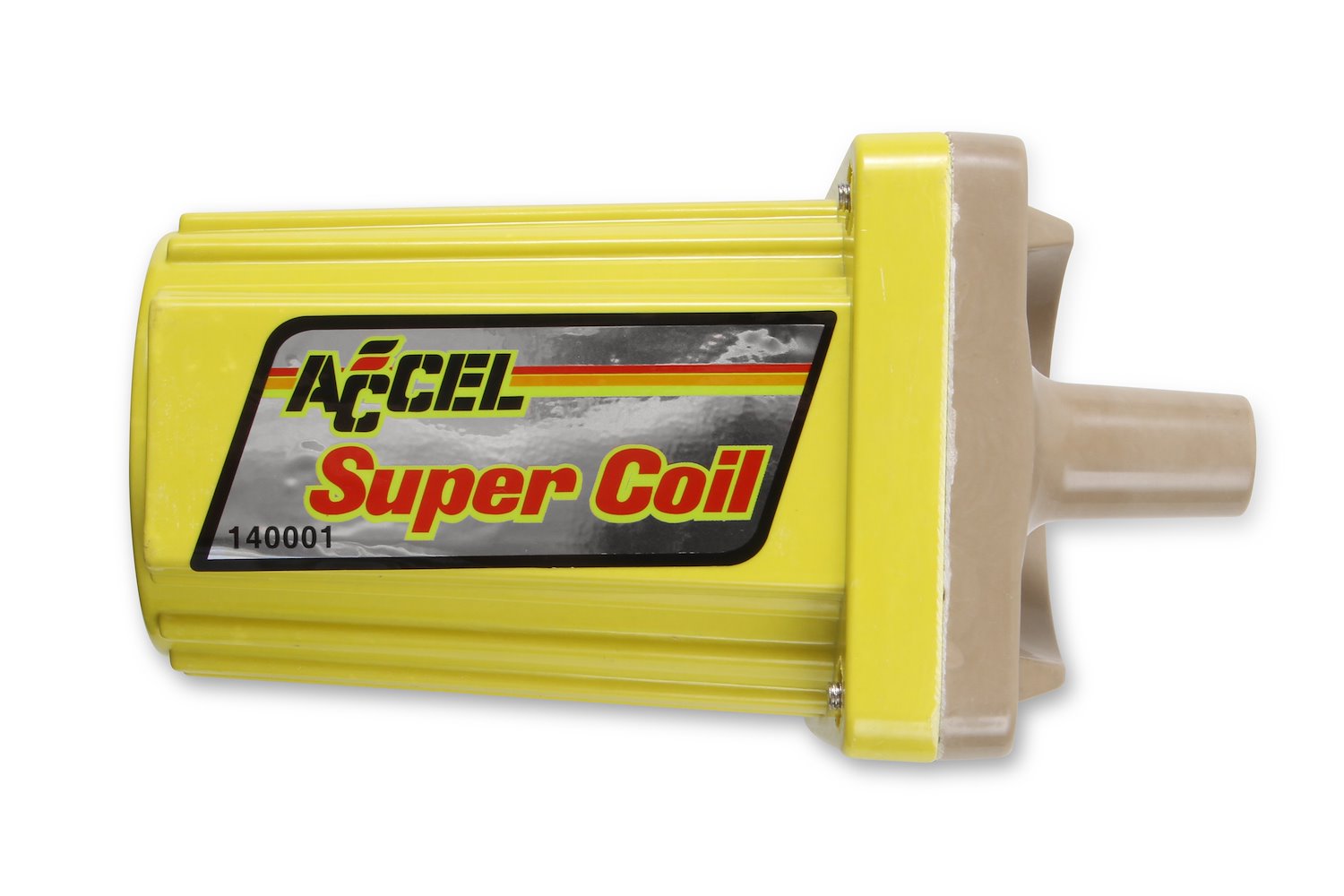

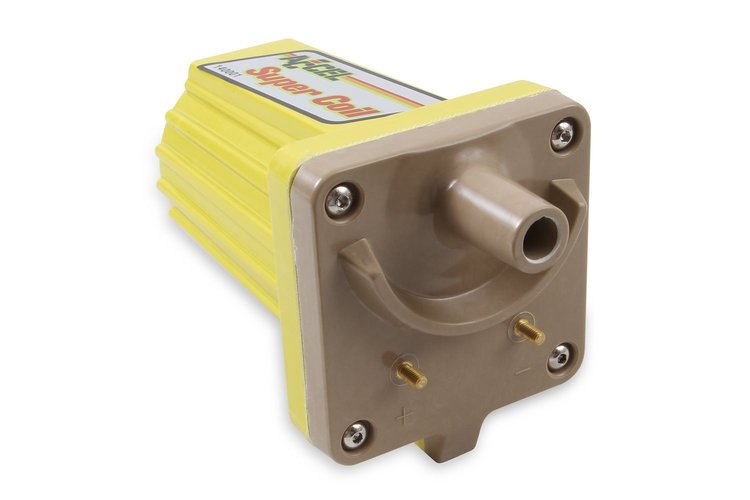

Vehicle Info NeededSuper Coil Ignition Coil 12-Volt Ignition System
Ships Today
Lowest Price Guarantee- Super Coil Ignition Coil
- 12-Volt Ignition System
- 45,000 Volt Output
- Super Coil Ignition Coil
- Optimized Low Resistance
- Silicon Magnetic Steel E-Core
- Higher Energy/Voltage Outputs
- Quicker Starts
- Improved Idle Quality
- Resists Shock And Vibration
- Resists Corrosion
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-221
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
The Legendary ACCEL Super Coil!
Engineered for faster rise time, longer spark duration and increased performance. The Super Coil ignition coils unique design with premium grade wire, special low resistance, high turns ratio windings. Produces higher spark energy with breakerless electronic ignition systems. For points applications the supplied 0.85 Ohms ballast resistor must be used in conjunction with the vehicle's original ballast resistor, if so equipped. Oversized molded case with integral cooling fins and high capacity oil filled construction provide high thermal conductivity ensuring cool operation and long life. Extra tall tan Alkyd tower and integral voltage dam eliminate ''flashover'' to primary terminals. Comes complete with mounting hardware and 0.85 Ohms ballast resistor. Effective to 6,500 RPM.
Show More
Specifications:
- Primary Resistance: 0.7 Ohms
- Secondary Resistance: 11.8 k Ohms
- Turns Ratio: 70:1
- Maximum Voltage: 45,000 volts
- E.O. D-221 California Legal
