Product Discontinued
ACCELPART NUMBER: 110-140009

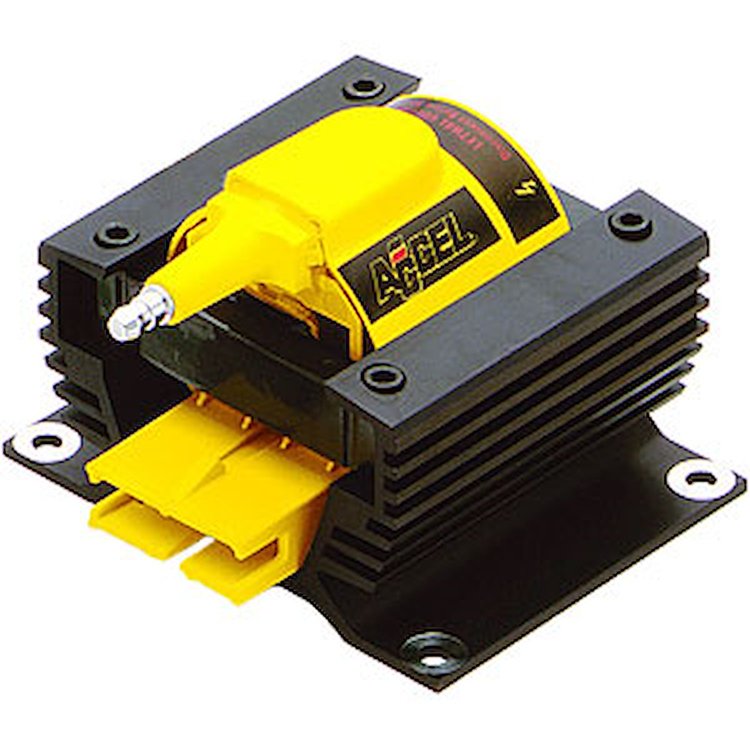

Heavy Duty Electronic/CD Type E-Core Super Coil Ignition Coil 48,000 Volts
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Heavy Duty Electronic/CD Type E-Core Super Coil
- Heavy Duty Electronic/CD Type E-Core Super Coil Ignition Coil
- 48,000 Volts
- 12-Volt Ignition System
- Racing Ignition Coil
- Maximum Energy Output
- Minimum Inductance Loss
- Resist Shock And Vibration
- Protection From Arcing
- W/Insulated Wire Connector
- Mounting Hardware Kit Included
- High energy heavy gauge windings deliver unmatched performance!
- Maximum Voltage: 48,000 Volts
- Primary Resistance: 0.7 Ohms
- Secondary Resistance: 10.0k Ohms
- Peek Current: 220 mA
- Spark Duration: 300 uS
- Turns Ratio: 70:1
Designed to work with both breakerless electronic 12-volt ignition systems or Accel, Mallory, Crane, Holley or MSD capacitive discharge ignition systems. The E-core design of this ignition coil minimizes inductance losses and maximizes energy output. Extruded aluminum heat sink provides maximum cooling to ensure long life. SAE male tower offers greater coil wire retention and protection from arcing. Comes complete with insulated primary wire connector and universal Accel 8.8mm Spiral coil lead and mounting hardware kit.
Specifications:Part TypeIgnition Coil
Product LineAccel Heavy-Duty Electronic/CD-Type E-Core Super Coil Ignition Coil
BrandACCEL
Package Height4.8
Package Width5.5
Package Length6.5
Weight3.03 PG
Part CategoryPerformance Parts
Vendor Part Number140009
Package Qty1
Package TypeEA
