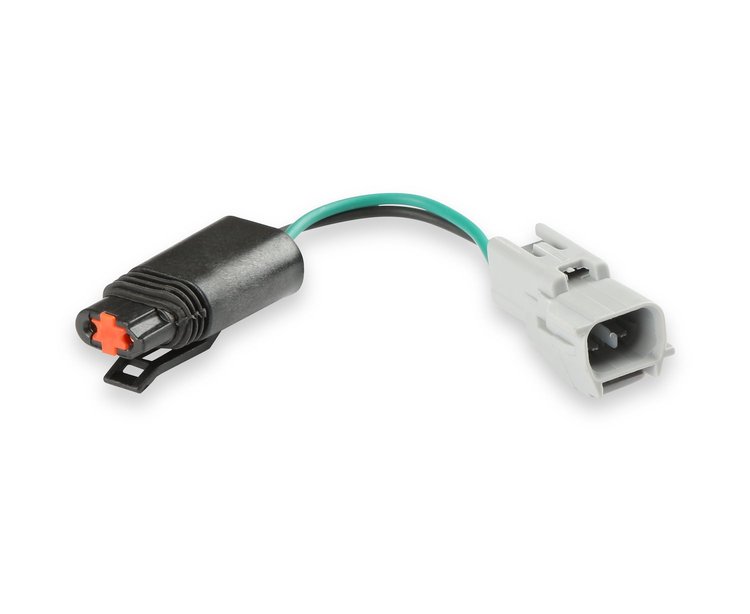

Vehicle Info NeededMagnum Super Coil Adapter Harness 1998-02 Dodge/Jeep V8
Color:
Ships Today
Lowest Price Guarantee- Magnum Super Coil Adapter Harness
- 1998-02 Dodge/Jeep V8
Allows you to directly plug into the ACCEL Super coil 110-140021 when being used on a 1998 to 2002 Dodge truck, or Jeep equipped with a distributor and the newer light grey Yazaki wire harness coil connector. No cutting or splicing is required.
34% More Energy, 23% More Spark Duration!
Accel 1990-97 Dodge Super Coils are engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel C-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model Chrysler J-TEC computer controlled ignition system and Mopar high performance ignition computers. This is a direct bolt-in, plug-in replacement ignition coil. Can also work with an Accel, Mallory, Crane, Holley or MSD capacitive discharge ignition ststem. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy efficiency and resists corrosion better than aluminum. High dielectric strength ''Accel Yellow'' over-molded housing.
Show More
Specifications
- Primary Resistance: 1.0 Ohms
- Secondary Resistance: 12.7 k Ohms
- Turns Ratio: 76 : 1
- Maximum Voltage: 42,000 volts
- Peak Increase in Energy vs. OE: 34%
- Peak Increase in Current vs. OE: 17%
- Peak Increase in Arc Duration vs. OE: 23%
- Peak Increase in Dwell vs. OE: 36%
Magnum Super Coil Adapter Harness for 1998-2002 Trucks/Jeep
This harness, sold separately, allows you to directly plug-in Accel Super Coil p/n 110-140021 into a 1998 or newer Dodge Truck/Jeep equipped with the new light grey Yazaki wiring harness coil connector. No cutting or splicing required.
