Vehicle Info NeededACCELPART NUMBER: 110-140033E

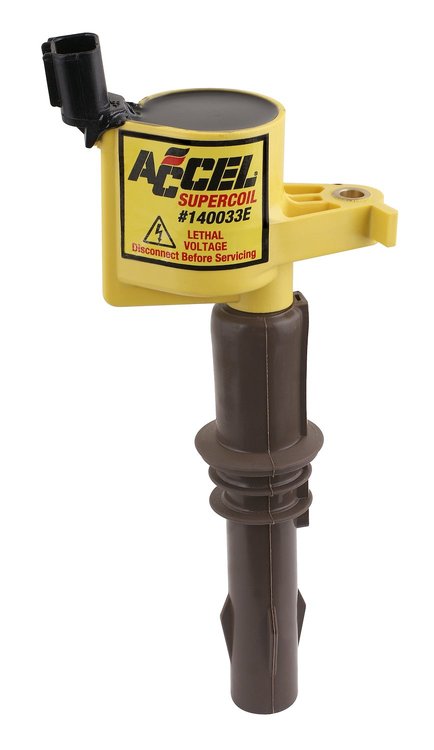

Super Coil Ignition Coil
$1795
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeFord 4.6L/ 5.4L 3-Valve
- Super Coil Ignition Coil
- 2008.5-2010 Ford 4.6L V8/5.4L V8/6.8L V10 3-Valve
- Yellow
- 1/pkg
Features: - Select 2008 4.6L/5.4L6.8L 3-Valve Ford Engines with later style 12mm spark plugs. (Brown coil boot)
- All 2009-2014 4.6L/5.4L 3-Valve Ford Engines use 12mm spark plugs. (Brown coil boot)
- Longer Brown boot on coil - 4.5" Boot
- "8L3E" marked on top of OE coil
- 10-15% More Energy
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- OBD II Compatible Safe
More Energy, More Spark Duration
Accel Super Coil Ignition Coils feature advanced bobbin technology, brass secondary contacts, and highly-specialized silicone magnetic steel cores. Their optimized winding, resistance, and turns ratio deliver 10% to 15% more energy than OE coils. High-temperature epoxy increases thermal conductivity and resists shock and vibration. Coil bodies are molded in Accel yellow, blue and black.
Show More
Features:
- 10% to 15% More Energy than OE
- Better Performance and Throttle Response
- Easy Upgrade, No Additional Modifications Necessary
JEGS Easy Kits are designed by JEGS professionals so you get all the parts you need.
Part TypeIgnition Coil
Product LineAccel Super Coil Ignition Coils For Ford Cars & Trucks
BrandACCEL
Package Height2.6
Package Width2.6
Package Length7.6
Weight0.49 PG
Part CategoryPerformance Parts
Primary Resistance0.500 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
ColorYellow
QuantitySold individually
Ballast Resistor IncludedNo
Turns Ratio68:01:00
Coil ShapeRound
Mounting Bracket IncludedNo
Inductance1.5 mH
Coil ColorYellow
Coil Wire IncludedNo
Secondary Resistance5.43K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part Number140033E
Package Qty1
Package TypeEA
