Vehicle Info NeededACCELPART NUMBER: 110-140035

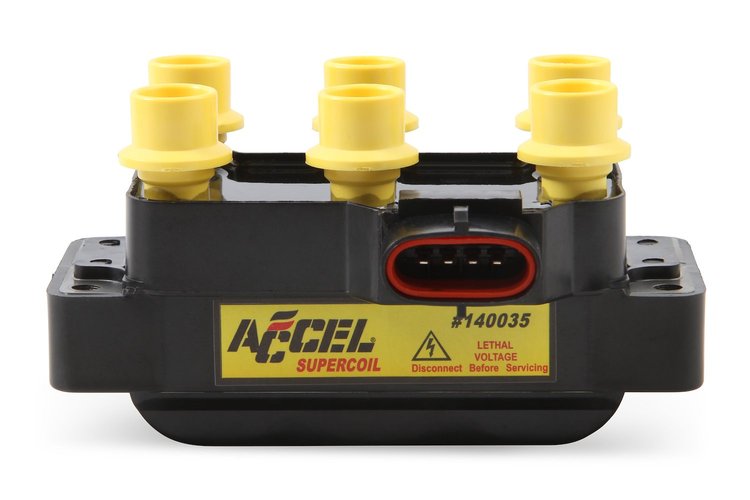

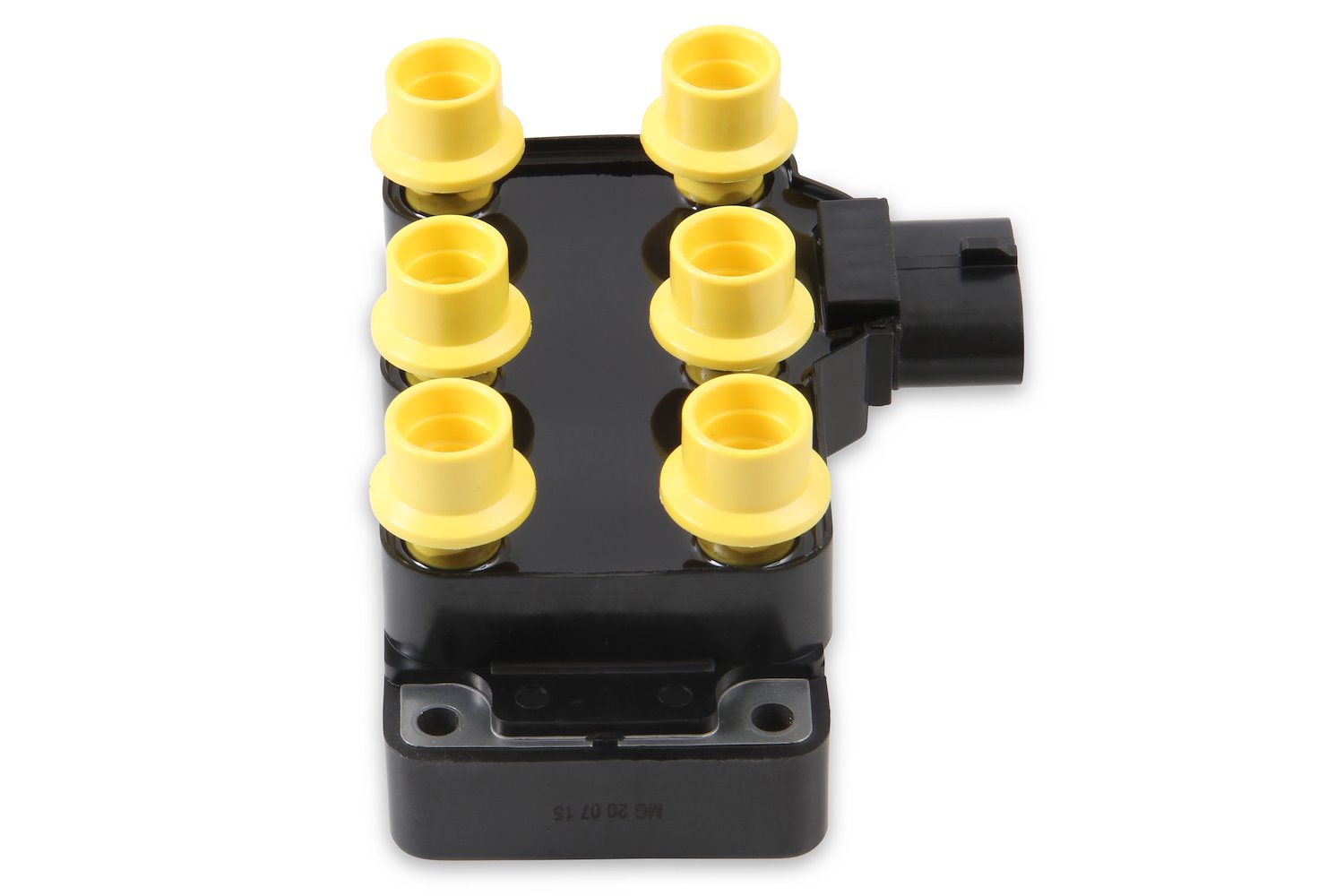

Ford Super EDIS Coil Pack 1989-2000 Ford 3.0L V6
$14035$155.95You Save$15.60
Ships on 09/08/2026
Lowest Price GuaranteeFord Super EDIS Coil Packs
Ford Super EDIS Coil Pack1989-2000 Ford 3.0L V6 2000-10 Ford 4.0L V6 Horizontal Primary Connector
ACCEL 140035 Features:
These coils feature advanced bobbin technology, highly specialized silicone magnetic steel cores, optimized winding, resistance and turns ratios to deliver 10-15% more energy than OEM coils. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct replacements for OEM coils. Must use factory firing order. Bodies and/or secondary towers molded in ACCEL yellow with brass secondary contacts.- 10-15% More Energy
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- OBD II Compatible Safe
- Standard Motor Products SMP Fd-480
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIgnition Coil
BrandACCEL
Package Height3.9
Package Width4.5
Package Length6.8
Weight3.63 PG
Part CategoryPerformance Parts
Primary Resistance0.500 ohms
Coil StyleCoil pack
ColorYellow
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage35,000 V
Turns Ratio89.2:1
Coil ShapeRectangular
Mounting Bracket IncludedNo
Inductance6.3 mH
Coil ColorYellow
Coil Wire IncludedNo
Secondary Resistance11.30K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part Number140035
Package Qty1
Package TypeEA
