Product Discontinued

ACCELPART NUMBER: 110-61212

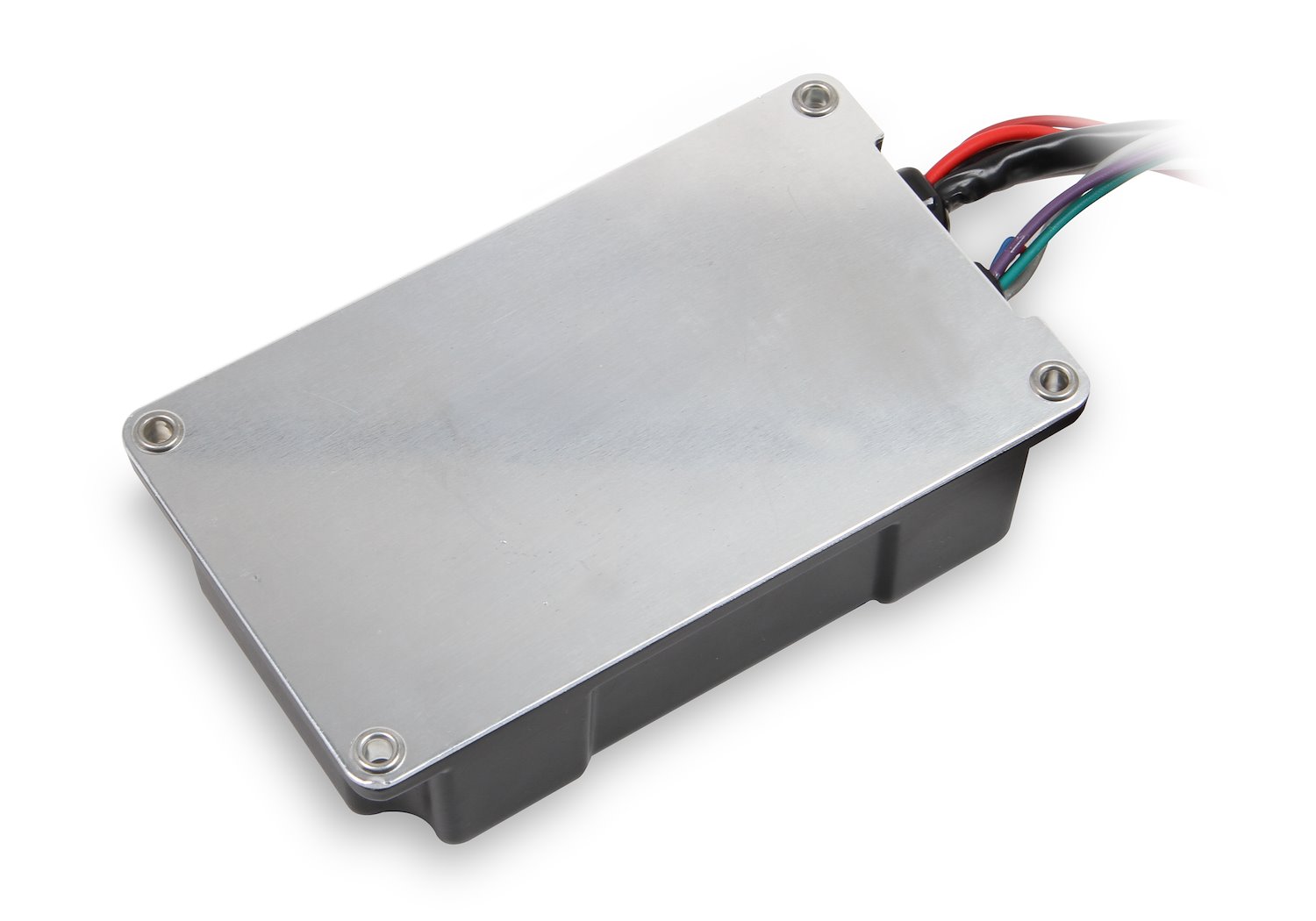

SuperBox Capacitive Discharge Ignition

Name: SuperBox Capacitive Discharge Ignition
Brand: ACCEL
SKU: 110-61212
Price: 147.02 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CDI System

Works on 4/6/8-Cylinder Applications
Adjustable Rev-Limiter
Cast Aluminum Housing

Specifications:
Current Draw: .7 Amp per 1,000 RPM
Emission Code: 3
Primary Voltage: 435 Volts
RPM Range: 15,000 RPM with 14.4 Volts
Secondary Voltage: 43,000 Volts
Spark Energy: 95 mJ per spark
Spark Series Duration: 20 Degree Crankshaft Rotation
Voltage Required: 10-18 Volts, Negative Ground

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-115-23

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIgnition Control Module

BrandACCEL

Package Height2.1

Package Width7.7

Package Length8.4

Weight2.13 PG

Part CategoryPerformance Parts

Carb Eo NumberD-115-23

Part FitmentSemi Universal

Spark Energy95 mJ per spark

Vendor Part Number61212

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
