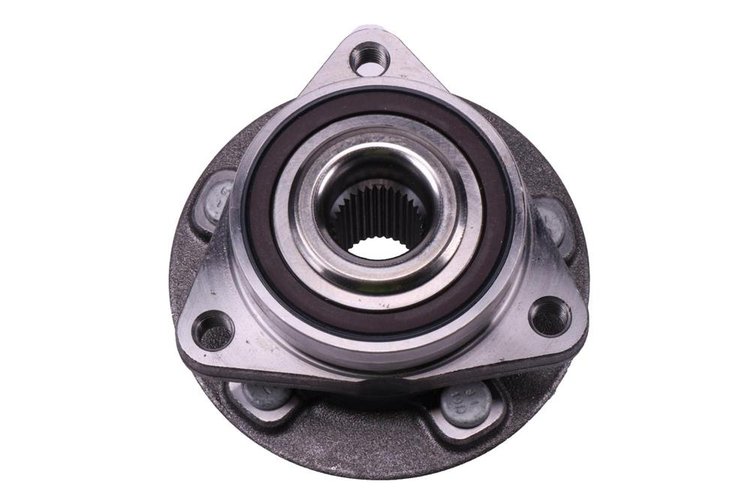

HUB ASM-FRT WHL (SLP-1)
InfoVehicle Info Needed
ACDELCOPART NUMBER: 065-13517459

HUB ASM-FRT WHL (SLP-1)

$28696
ShippingShips on 11/17/2026
Lowest PriceLowest Price Guarantee

    Part TypeAxle Hub Assembly
    BrandACDELCO
    Flange Bolt Hole Diameter (In)0.482677165
    Programming RequiredNo
    Flange ShapeRound
    Anti Lock Brake Sensor IncludedNo
    Wheel Pilot Diameter56.95
    Flange Bolt Hole Diameter12.26
    Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding when the vehicle is in motion
    Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel hubs include but are not limited to:
    Brake Pilot Diameter (In)2.579133858
    Wheel Stud Size12
    Wheel Stud Quantity5
    Good Maintenance Practices - Section 1 - Bullet 1Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly
    Flange Diameter (In)5.354330709
    Features & Benefits - Bullet 6Manufactured to GM OE specification for fit, form, and function
    Good Maintenance Practices - Section 1 - Bullet 2Do not operate vehicle with a worn wheel hub assembly
    Good Maintenance Practices - Section 1 - Bullet 3For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads.
    Features & Benefits - Bullet 2Supported and allowed to rotate by the wheel bearing
    Features & Benefits - Bullet 3GM OE bearing designs are dimensionally optimized to work with their mating parts
    Features & Benefits - Bullet 4GM-recommended replacement part for your GM vehicle's original factory component
    Features & Benefits - Bullet 5Offering the quality, reliability, and durability of GM OE
    Product DescriptionACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. &#9888;<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    Features &#38;#38; Benefits - Bullet 1Provides the attaching point for the brake rotor and road wheel
    Wheel Stud Size (In)0.472440945
    Brake Pilot Diameter65.51
    Spline Quantity33
    Width (In)7.25
    Wheel Studs IncludedYes
    Flange Bolt Hole Quantity5
    Flange Bolts IncludedYes
    Signs Of Wear &#38;#38; Troubleshooting - Section 1 - Bullet 6Wheel vibration and/or wobble
    Height (In)7.25
    Bolt Circle Diameter108.48
    Signs Of Wear &#38;#38; Troubleshooting - Section 1 - Bullet 2Knocking or clunking
    Signs Of Wear &#38;#38; Troubleshooting - Section 1 - Bullet 3Humming, rumbling, squealing, roaring or growling
    Signs Of Wear &#38;#38; Troubleshooting - Section 1 - Bullet 4Looseness
    Length (In)7.75
    Flange Diameter136
    Signs Of Wear &#38;#38; Troubleshooting - Section 1 - Bullet 5ABS, Traction control, Stability control light.
    Anti Lock Braking SystemNo
    Integrated Hub UnitYes
    Flange IncludedYes
    Wheel Pilot Diameter (In)2.242125984
    Bolt Circle Diameter (In)4.270866142
    Weight (Lb)7.45
    Grade TypeOE
    Hub Pilot Diameter59.95
    Vendor Part Number13517459
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
