Vehicle Info NeededACDELCOPART NUMBER: 065-13546424

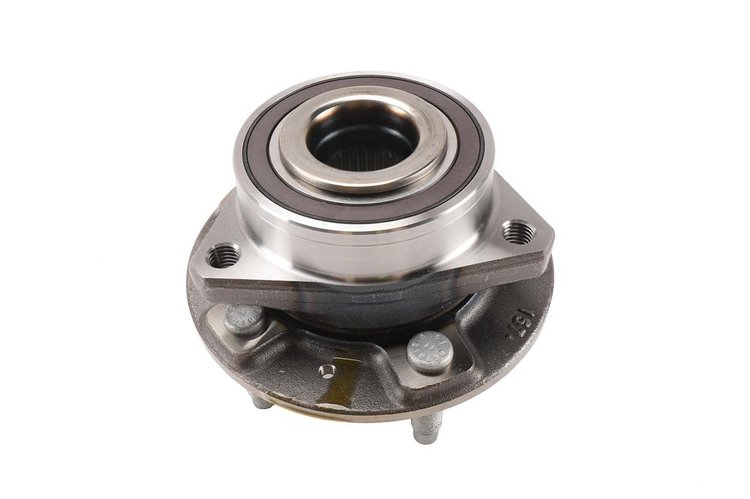

HUB ASM-RR WHL (SLP-1)
$12899
Ships on 09/14/2026
Lowest Price GuaranteePart TypeAxle Hub Assembly
BrandACDELCO
Flange ShapeTriangle
Features & Benefits - Bullet 12GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
Features & Benefits - Bullet 11GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
Features & Benefits - Bullet 10Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
Flange Bolt Hole Diameter0.47
Signs Of Wear & Troubleshooting - Section 1 - Bullet 1Grinding or humming noise from hub assembly maybe more noticeable while turning
Signs Of Wear & Troubleshooting - Section 1 - HeaderSigns of wear for wheel bearing and hub assemblies include but are not limited to:
Anti-Lock Brake Sensor IncludedNo
Wheel Stud Quantity5
Good Maintenance Practices - Section 1 - Bullet 1Keep wheel lug nuts at proper torque and do not overtighten center hub bearing to constant velocity shaft nut.
Faq - Answer 3Yes, in some cases replacement hub assemblies come with ABS cables because most vehicles are now equipped with ABS. For non-ABS vehicles the cable can be cut off before hub installation.
Faq - Answer 2Yes. It is normal for the bearing to have some movement inside the hub assembly; this movement is controlled to a specification.
Faq - Answer 1Yes. The nut should be torqued to the specifications found in the vehicle's service manual.
Features & Benefits - Bullet 6Certified high-grade bearing steel cleanliness for smaller, or less non-metallic, inclusions
Features & Benefits - Bullet 7Helps protect the bearing from Brinell damage caused by curb and pothole impact with strong static strength
Good Maintenance Practices - Section 1 - Bullet 2Follow the manufacturers recommended torque specification.
Features & Benefits - Bullet 8Developed with a thermal shock test that all GM OEM bearings must pass for improved low-temperature performance
Features & Benefits - Bullet 9Controlled dimensions for bearings and all mating parts helping all GM OE around the wheel parts function properly
Features & Benefits - Bullet 2GM bearing designs are dimensionally optimized to work with their mating parts
Features & Benefits - Bullet 3Designed for GM specific vehicle applications for proper fit, form, and function
Features & Benefits - Bullet 4High quality manufacturing process for consistency and long-term performance
Features & Benefits - Bullet 5High capacity ball or roller designs create a high rotating fatigue life
Product DescriptionSupports the vehicle while allowing the wheel to rotate ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Features &#38; Benefits - Bullet 1Maximum lateral stiffness for ride, handling, and driving dynamics
Spline Quantity30
Bearing TypeBall
Wheel Studs IncludedYes
Flange Bolt Hole Quantity3
Mounting Hardware IncludedNo
Flange Bolts IncludedNo
Bolt Circle Diameter116
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Tire and wheel vibration
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3Excessive play at tire and wheel
Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4Wheel hot to the touch
Anti Lock Braking SystemNo
Flange IncludedYes
Features &#38; Benefits - Bullet 13GM regularly updates production and service part designs to integrate new materials and technologies
Outside Diameter146
Faq - Question 3Can I use a replacement hub assembly that comes with an ABS cable when my vehicle does not have ABS?
Grade TypeOE
Faq - Question 2Is it normal for the bearing to have back-and-forth movement inside the hub assembly?
Faq - Question 1Are there specifications I should check to see how tight the center hub bearing attachment nut should be?
Vendor Part Number13546424
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
