Vehicle Info Needed

ACDELCOPART NUMBER: 065-15-20515

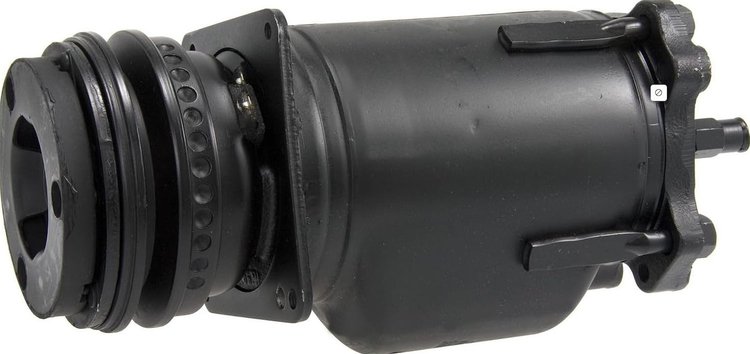

15-20515 A/C Compressor Remanufactured

Name: 15-20515 A/C Compressor Remanufactured
Brand: ACDELCO
SKU: 065-15-20515
Price: 298.99 USD
Availability: OutOfStock

^$298⁹⁹

1 left in stock

Lowest Price Guarantee

A/C Compressor

Remanufactured

V-Belt Pulley

1-Groove

Portable

Steel

Black

Sold Individually

ACDelco 15-20515 Features:

Includes: Clutch, Pulley, and Cover
Air Conditioning Compressor Type: A6
Air Conditioning Pulley Grooves: 1-groove, V-belt
Air Conditioning Refrigerant Type: R-134A/R-12

Part TypeA/C Compressor

BrandACDELCO

Package Height6.9

Package Width7.3

Package Length14.6

Weight35.15 PG

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 9Worn or damaged compressor seals

Product TypeA/C Compressor

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 7Worn or damaged evaporator

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 8Worn or damaged condenser

New Or RemanufacturedRemanufactured

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 5Damaged components

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 6Worn or damaged compressor shaft seal

Clutch Pulley Diameter4.870

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 3Loose connections

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 4Seal failures

New Or RemanufacturedRemanufactured

Pulley Ridge Diameter5.125

Compatible Refrigerant Oil TypePAG 150

Good Maintenance Practices - Section 1 - Bullet 1Musty smell when the air conditioning or heating system is activated

Good Maintenance Practices - Section 3 - HeaderYour A/C system is a sealed system, which includes different components connected by hoses, tubes, or lines. To keep the system leak free, inlet and outlet fittings have O-rings or seal washers, and the lines have leak free fittings. To help prevent leaks in the A/C System, follow these guidelines when servicing connections:

Good Maintenance Practices - Section 1 - Bullet 2Inadequate cooling or heating temperatures when using the air conditioning or heating system

Good Maintenance Practices - Section 1 - Bullet 3The vehicle's temperature gauge indicates a 'red' condition

Product DescriptionACDelco Gold (Professional) Remanufactured Air Conditioning Compressors are a high quality alternative to Original Equipment (OE) parts. Remanufactured A/C Compressors pump refrigerant through the system. The compressors are typically engine driven via the accessory belt, and a clutch on the compressor is used to engage and disengage the compressor. Hybrid vehicles are typically equipped with an electric motor driven compressor. These compressors draw in cool refrigerant gas from evaporators and pumps it to a much higher pressure. The high pressure gas travels on to the condenser. The compressors are lubricated by refrigerant oil. Remanufacturing A/C Compressors are an industry standard practice that involves disassembly of existing units, and replacing components that are most prone to wear with new components. Damaged and obsolete parts are replaced and are end of line tested to ensure they perform to ACDelco specifications. In addition, remanufacturing returns components back into service rather than processing as scrap or simply disposing of them. ACDelco Gold (Professional) parts are manufactured to meet your expectations for fit, form, and function, making them a smart choice for General Motors vehicles, as well as most makes and models, including s pecial applications. These high-quality parts are backed by General Motors. Some ACDelco Gold parts may have formerly appeared as ACDelco Professional. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Clutch IncludedYes

Switch IncludedSuperheat

Pulley Belt TypeV-belt

Compressor TypeA6

Signs Of Wear &#38; Troubleshooting - Section 2 - HeaderYour A/C system must be maintained with the correct level of refrigerant and appropriate pressure to work properly. An A/C system leak, which could result in incorrect fluid or pressure levels, could potentially harm or interfere with the performance of your A/C system. This would result in lack of or insufficient cooling performance. Common causes of A/C system leaks include:

Clutch Pulley Diameter (Mm)123.698mm

Terminal TypeSpade

Mounting TypeDirect Mount

Signs Of Wear &#38; Troubleshooting - Section 3 - HeaderTo check your A/C system for leaks:

Pulley Lip Diameter5.125

Distance From Clutch To Mounting Flange2.000

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 11Missing service cap

Signs Of Wear &#38; Troubleshooting - Section 2 - Bullet 10A/C system component corrosion

Pulley Groove Quantity1

Good Maintenance Practices - Section 4 - HeaderWhen replacing your compressor, it is very important to use suction screens and inline filters on liquid lines. These filters and screens will catch any debris in the system to avoid damage to the new compressor. ACDelco also recommends system flushing using native refrigerant before installing a new compressor.

Coil Clock Position2

Clutch Pulley Diameter (In)4.87in

Part CategoryReplacement Parts

Good Maintenance Practices - Section 2 - HeaderYour A/C system requires proper air flow to operate effectively. Poor air flow across the condenser will impact system performance and can increase refrigerant system pressure. Make sure air flow into your system is not obstructed by bugs, leaves, dirt, or other contaminates in between tune ups.

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 1Lack of or insufficient cooling, excessive clicking sounds, unusual noises, or growling when using the A/C system could be a sign of a worn A/C compressor or components. This could be due to:

Connector Terminal Quantity2

Belt TypeV-belt

Features &#38; Benefits - Bullet 2Constructed from quality cores using quality replacement parts

Features &#38; Benefits - Bullet 3Some ACDelco Gold parts may have formerly appeared as ACDelco Professional

Features &#38; Benefits - Bullet 4Premium aftermarket replacement part

Features &#38; Benefits - Bullet 5Manufactured to meet specifications for fit, form, and function for General Motors vehicles as well as most makes and models

Oil FilledIncluded

Features &#38; Benefits - Bullet 1100% visual- and leak- tested to ensure component's quality and durability

Signs Of Wear &#38; Troubleshooting - Section 3 - Bullet 1Use a leak detection dye, such as ACDelco Fluorescent Tracer Dye. Be sure to use the dye that is specified for use with your systems oil and refrigerant type.

Signs Of Wear &#38; Troubleshooting - Section 3 - Bullet 2Look for dirt or containment build up around hose or line connections. This could be a sign that oil, which would attract and hold contaminants, is leaking out of the connection.

Good Maintenance Practices - Section 1 - HeaderYour vehicle's air conditioning (A/C) system should be routinely checked by a professional technician. This should occur approximately every 12 months, though you should check your owner's manual for more specific recommendations. Any related maintenance should be handled only by professionals. If you notice any of the following conditions, have your vehicle checked right away:

Switch TypeSuperheat Switch

Refrigerant TypeR134A

Clutch Maximum Diameter5.125

Good Maintenance Practices - Section 3 - Bullet 5Recover refrigerant from the system when or if necessary

Good Maintenance Practices - Section 3 - Bullet 4Always replace sealing caps on service ports

Good Maintenance Practices - Section 3 - Bullet 6Keep dirt and foreign material from all sealing surfaces

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 2Internal compressor fault

Good Maintenance Practices - Section 3 - Bullet 1Use the proper O-ring for the system

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 3A/C clutch or electrical circuit failure

Signs Of Wear &#38; Troubleshooting - Section 1 - Bullet 4A broken or loose drive belt

Good Maintenance Practices - Section 3 - Bullet 3Always lubricate O-rings with clean refrigerant oil

Good Maintenance Practices - Section 3 - Bullet 2Thoroughly clean all fittings and do not over torque beyond what is recommended
